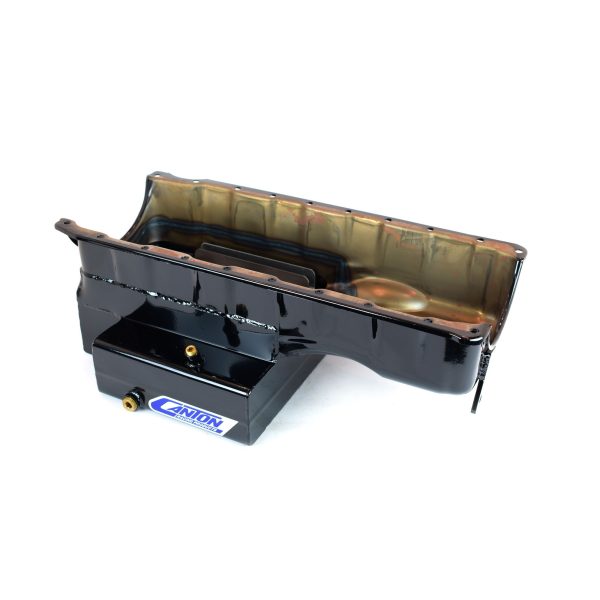

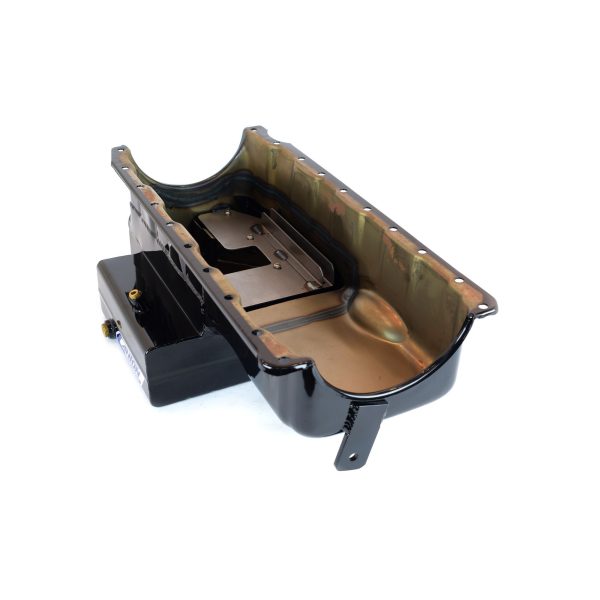

Canton 18-362 Oil Pan For Big Block Chevy Mark 5 Gen 6 Marine 10 Qt Oil Pan
This BBC marine pan is for Mark 5 blocks with one piece seal. It is designed for applications with the pickup at the flywheel end of the engine. It has a 8-1/2" deep, 13" long, 14-1/4" wide sump, and holds 10 quarts of oil. This pan requires our 18-361 pickup.
GTIN: 00887753714381
Baffled: Yes
Finish: Black Gloss Powdercoat
Stoke: 4.5 inches
Recommended Accessory 3: 20-854 – Universal Steel Braided Dipstick Kit 1/4″ N.P.T. Fitting
Recommended Accessory 2: 20-850 – Universal Dipstick Kit 1/4″ N.P.T. Fitting
Recommended Accessory 1: 18-361 – Our Stock Replacement Pickup
Pickup Included: No
Material: 14 Gauge Steel
Kicked Out: Yes
Hardware Included: No
Gasket or Seal Included: No
Feature 7: Powder Coating & Brass Plugs For Corrosion Protection
Capacity: 10 Quart System Capacity
Feature 6: Provision For our Pan Mounted Dipstick
Feature 5: 1/2″ NPT Drain Fittings
Feature 4: Removable Windage/Anti-Slosh Baffle
Feature 3: Diamond Shaped Baffle Assembly With Four Trap Door Baffles
Feature 2: 14 ga. Steel Construction
Feature 1: 10 qt Pan Capacity
Drain Plug Included: Yes
Dipstick Port: Yes
Crank Scraper Included: No
Windage Tray Included: No
Emissions : Released
Life Cycle Status: Available To Order
Quantity of Each: 1
Package UOM: EA
Pan Install – Standard Part B
