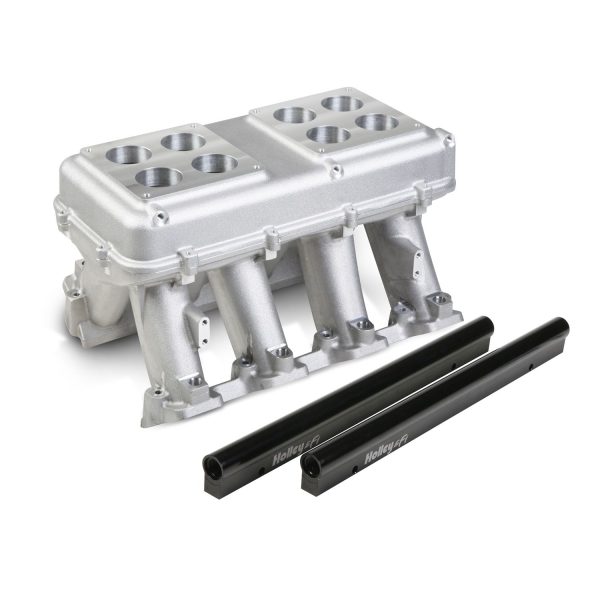

Hi-Ram Intake Manifold

$1,153.67
SKU: BBVL-300-114

Hi-Ram Intake Manifold; EFI; 2 x 4500™[2 x 2000 cfm Sideways Or Inline Mounting]; Front/Rear Height 11.08 in.; RPM Power Band 7000-8000; Satin Finish;

  • Plenum Top Gasket Type 3/32in. Round O-Ring Cord
  • Standard LS3 Molded O-Ring Mounting Flange Gasket
  • Port Size 2.49 n. Height X 1.21 in. Wide

The Holley GM LS3/L92 Modular Hi-Ram Intake Manifold is introduced as a cost effective alternative to fabricated sheet-metal for high-performance applications where induction system height is not limited. Coupling this Hi-Ram intake with the high flowing LS3/L92 style cylinder heads has outstanding potential for N/A and forced induction applications at a budget-minded cost. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sand rails, pulling trucks, track, street-rod applications and more!

Additional Attributes:

GTIN: 00090127670705
Construction: Cast
Cylinder Head Type: Standard
Emission: Without EGR
Engine Make/Size: GM LS3/L92
Finish: Satin
Flange Type: 4500
Front Height: 11.080 in.
Fuel System Type: EFI
Manifold Type: Hi-Ram
Number of Carbs: Two
Position: Upper
Rear Height: 11.080 in.
RPM Range: 7000-8000
Usage: Racing
WARNING CA Proposition 65: No

Extened Information:

Emissions : Electronically Announced
Life Cycle Status: Available To Order
