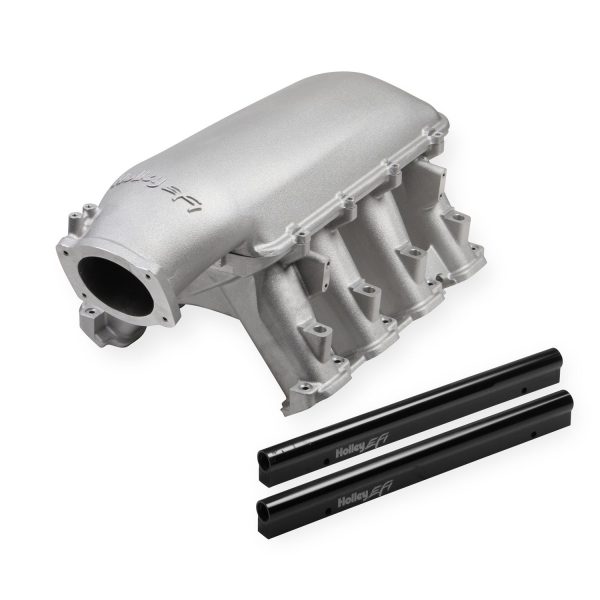

Hi-Ram Intake Manifold

Hi-Ram Intake Manifold
$1,386.83
SKU: BBVL-300-140

Hi-Ram Intake Manifold; EFI; 1×105 mm Throttle Body; Longitudinal Mount; w/Port EFI Provisions And Fuel Rails; RPM Power Band 3500-8000 Plus; Satin Finish;

  • Modular Design w/ Removable Top
  • Large Plenum Volume Of 549 Cubic in.es
  • 3500 To 8000 RPM Band
  • Available With Or Without Injector Ports In The Runners
  • Intakes w/ Injector Ports Include Fuel Rails w/ Dual Mounting
  • Fuel Rails Anodized/Laser Etched/Machined For 8An O-Ring Fittings
  • Rear Of Plenum Machined For Map & 3 Vacuum Ports
  • Head Flange Has Clearance For Fuel Supply To High Pressure Pump
  • Increased Runner Wall Thickness For Custom Porting At The Plenum
  • O-Ring Seals At Cylinder Heads & Plenum Top
  • Easy Assembly w/Top Mounted Screws On Plenum Top

The new Holley EFI Hi-Ram intake provides the ultimate performance with the new GM direct injected Gen V 6.2L LT1 engine. The modular design of this manifold allows easy disassembly for custom porting, multiple tops, or custom induction systems. Each runner has a large radius where it meets the plenum, and optimized taper & cross-sectional area to perform in a wide variety of engine configurations. The optional injector bosses on the intake runners allow increased performance potential by using additional injectors along with the factory direct injection. When you look for the pinnacle of performance, price, and quality, look to Holley EFI.

Additional Attributes:

GTIN: 00090127730515
Construction: Cast
Cylinder Head Type: Standard
Emission: Without EGR
Engine Make/Size: GM Gen V LT1
Finish: Satin
Flange Type: EFI
Manifold Type: Hi-Ram
Number of Carbs: None; For Fuel Injection
Position: Upper
RPM Range: 3500-8000+
Usage: Racing
WARNING CA Proposition 65: No

Extened Information:

Emissions : Electronically Announced
Life Cycle Status: Available To Order
