HM Grade

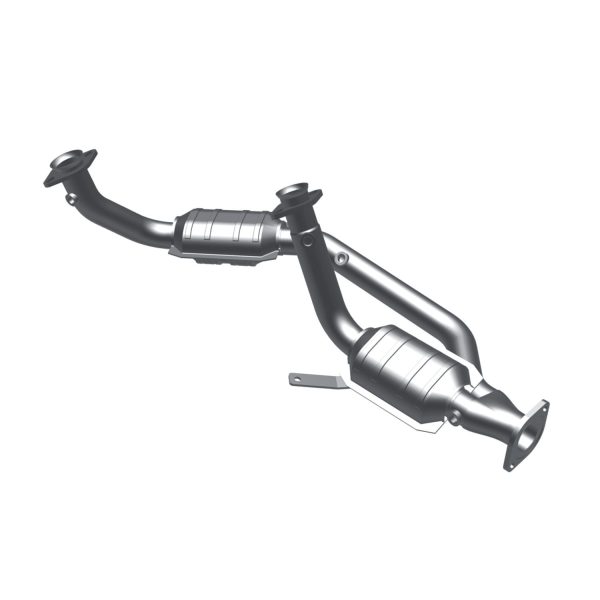

MagnaFlow HM Grade Federal/EPA Compliant Direct-Fit Catalytic Converter 23534 helps keep the check engine light off. DIY installation is easy with the proper tools (no cutting or welding required). With features including mandrel-bent tubing to eliminate flow restrictions and stainless steel construction to resist corrosion, you can have confidence in the quality of this catalytic converter. Using state-of-the-art 3D scanning systems in the design process, the MagnaFlow metrology department ensures this new part to fit and function like the original equipment.

Designed to fit the 1996-1999 Ford Taurus and 1996-1999 Mercury Sable, this direct-fit catalytic converter also interchanges with OE part F7DZ-5F250-SA. The included gaskets & hardware reduce the possibility of a leaking seal while avoiding the need to reuse corroded factory parts for installation. This replacement part is designed to meet or exceed Federal emissions requirements set forth by the EPA, complying with legal standards for OBDII Federally registered vehicles with Federal/EPA Emission systems.

Additional Attributes:

GTIN: 00841380016881
Inlet Mounting Hardware Included: No
Oxygen Sensor Location: Pre and Post Converter
Finish: Stainless Steel
Hangers Included: Yes
Clamps Included: Yes
Sensor Port Count: 4
Outlet Type: Bolt-On
Inlet Type: Bolt-On
Body Material: Stainless Steel
Series: HM Grade
Overall Length: 44.5
Substrate Material: Ceramic
Tube Material: Stainless Steel
Air Tube Adaptable: No
Outlet Mounting Hardware Included: No
Inlet Gasket Included: Yes
Outlet Gasket Included: Yes
Type: Direct-Fit
Subtitle: Federal / EPA Compliant Direct-Fit Catalytic Converter
Heat Shield Material: Aluminized Steel
Heat Shield Attached: Yes
Universal Or Specific Fit: Specific
Grade Type: Regular
Body Type: Clam-Shell

Extened Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
