HM Grade

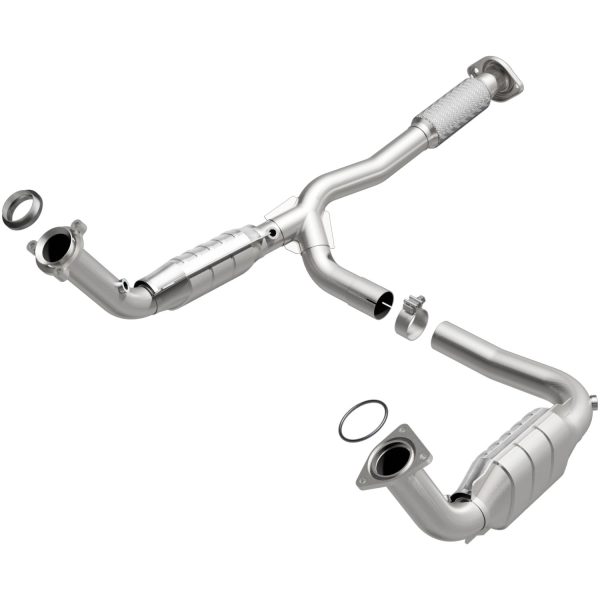

MagnaFlow HM Grade Federal/EPA Compliant Direct-Fit Catalytic Converter 24950 helps keep the check engine light off. DIY installation is easy with the proper tools (no cutting or welding required). With features including mandrel-bent tubing to eliminate flow restrictions and stainless steel construction to resist corrosion, you can have confidence in the quality of this catalytic converter. Using state-of-the-art 3D scanning systems in the design process, the MagnaFlow metrology department ensures this new part to fit and function like the original equipment.

This direct-fit catalytic converter is designed to fit the 2003-2006 GMC Envoy XL, 2003-2006 Chevrolet Trailblazer EXT, and additional vehicles. The included gaskets & hardware reduce the possibility of a leaking seal while avoiding the need to reuse corroded factory parts for installation. This replacement part is designed to meet or exceed Federal emissions requirements set forth by the EPA, complying with legal standards for OBDII Federally registered vehicles with Federal/EPA Emission systems.

Additional Attributes:

GTIN: 00841380074430
Outlet Gasket Included: No
Series: HM Grade
Subtitle: Federal / EPA Compliant Direct-Fit Catalytic Converter
Heat Shield Material: Aluminized Steel
Type: Direct-Fit
Heat Shield Attached: Yes
Universal Or Specific Fit: Specific
Grade Type: Regular
Body Type: Clam-Shell
Oxygen Sensor Location: Pre and Post Converter
Inlet Mounting Hardware Included: No
Finish: Stainless Steel
Hangers Included: No
Clamps Included: Yes
Sensor Port Count: 4
Outlet Type: Bolt-On
Inlet Type: Bolt-On
Body Material: Stainless Steel
Overall Length: 54.5
Substrate Material: Ceramic
Air Tube Adaptable: No
Tube Material: Stainless Steel
Outlet Mounting Hardware Included: No
Inlet Gasket Included: Yes

Extened Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
