JE, Can-Am, 91.00 mm Bore, Right

$302.82
SKU: BHXG-324952R

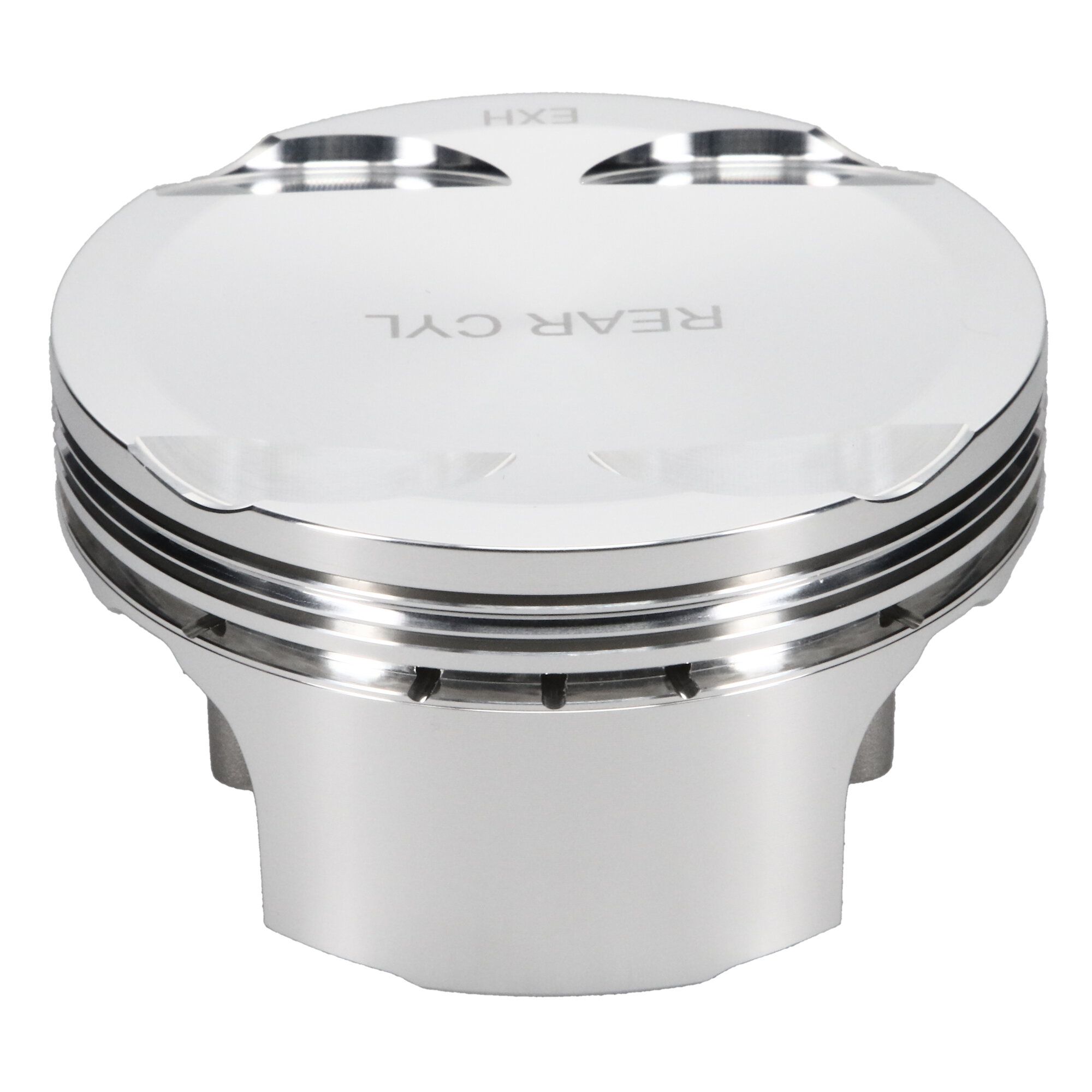

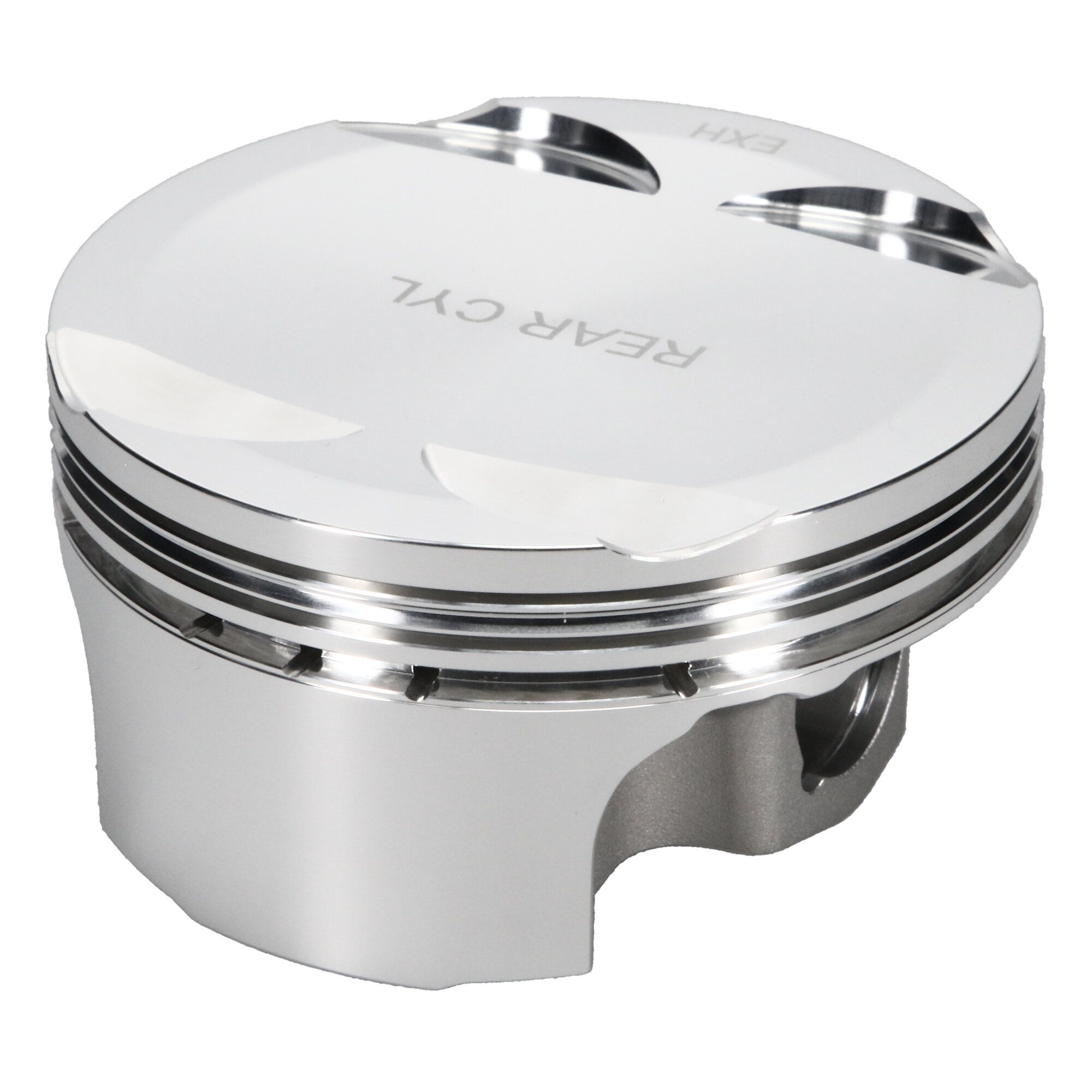

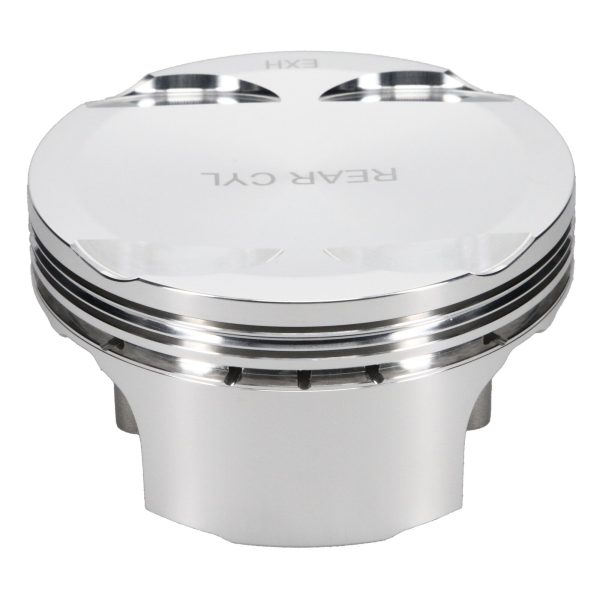

JE, Can-Am, Maverick 1000 X RS DPS, 12.00:1, 91.00 mm Bore, Right Piston

With a history in racing dating back to 1947, JE Pistons is the industry leader in high-performance powersports forged racing pistons. JE proudly engineers, forges, and machines precision racing pistons for a wide range of powersports machines in-house in the USA.

Additional Attributes:

GTIN: 00193564198419
Piston Pin Outside Diameter: 0.866
Piston Pin Wall Thickness: 0.150
Piston Volume: -6.9
Product Market: UTV
Prop 65 (C, R or CR): CR
Prop 65 Yes/No: Yes
Ringset Included: Yes
Second Compression Ring Thickness: 0.048
Top Compression Ring Thickness: 0.04
Add-On: JG1001-3583
Add-On: 866-2250-15-93C
Add-On: 866-063-MW
Bore Diameter: 91.00
Cylinder Head: MAVERICK 1000
Forging Type: FSR
Industry: Powersports
OEM Compression Ratio: 12.00:1
Oil Ring Thickness: 0.111
Out of Stock Message: Call for Availability
Piston Avg Wt: 317
Piston Head Type: Dish
Piston Material: 2618
Piston Pin Length: 2.250
Piston Pin Material: 9310

Extened Information:

Emissions : Electronically Announced
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
