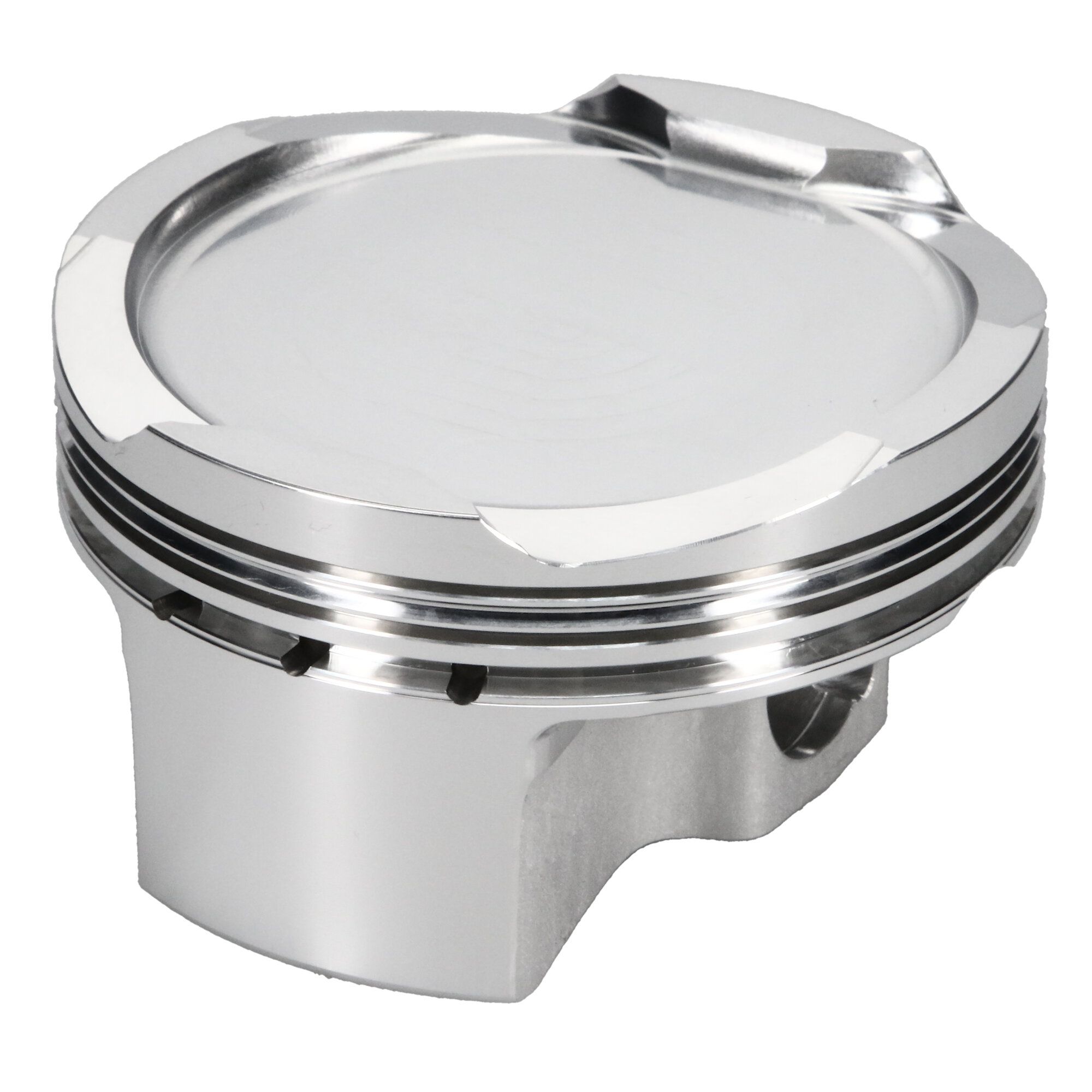

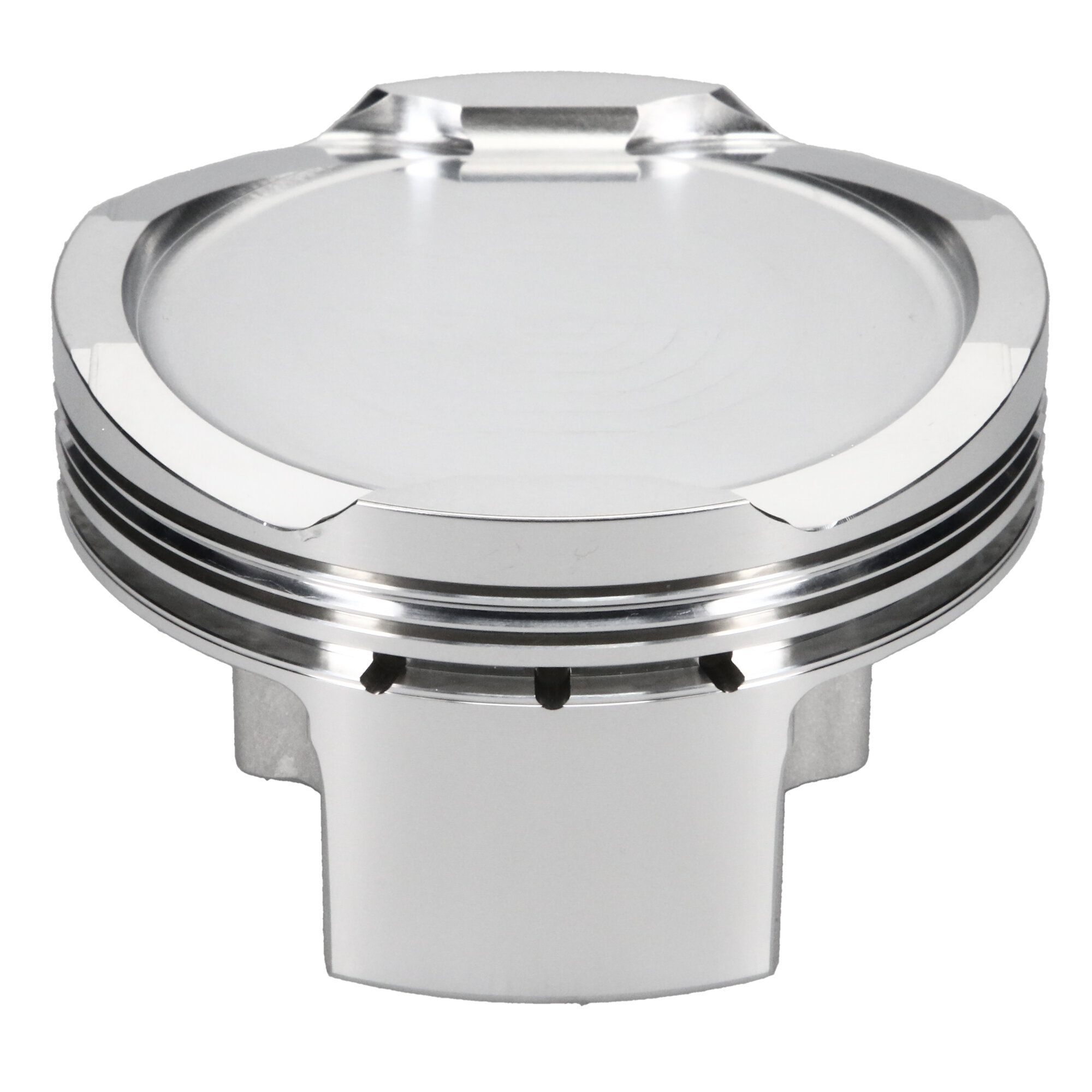

JE, Can-Am, 91.00 mm Bore, Single

$285.68
SKU: BHXG-308411S

JE, Can-Am, Outlander / Renegade 1000, Defender, Commander X, 9.00:1, 91.00 mm Bore, Single Piston

With a history in racing dating back to 1947, JE Pistons is the industry leader in high-performance powersports forged racing pistons. JE proudly engineers, forges, and machines precision racing pistons for a wide range of powersports machines in-house in the USA.

Additional Attributes:

GTIN: 00193564198310
Add-On: 866-063-MW
Bore Diameter: 91.00
Cylinder Head: CAN-AM
Forging Type: FSR
Industry: Powersports
OEM Compression Ratio: 9.00:1
Oil Ring Thickness: 0.111
Out of Stock Message: Call for Availability
Piston Avg Wt: 315
Piston Head Type: Dish
Piston Material: 2618
Piston Pin Length: 2.050
Piston Pin Material: 9310
Piston Pin Outside Diameter: 0.866
Piston Pin Wall Thickness: 0.150
Piston Volume: -21.5
Product Market: ATV
Product Market: UTV
Prop 65 (C, R or CR): CR
Prop 65 Yes/No: Yes
Ringset Included: No
Second Compression Ring Thickness: 0.048
Top Compression Ring Thickness: 0.04
Add-On: JG1001-3583
Add-On: 866-2050-15-93C

Extened Information:

Emissions : Electronically Announced
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
