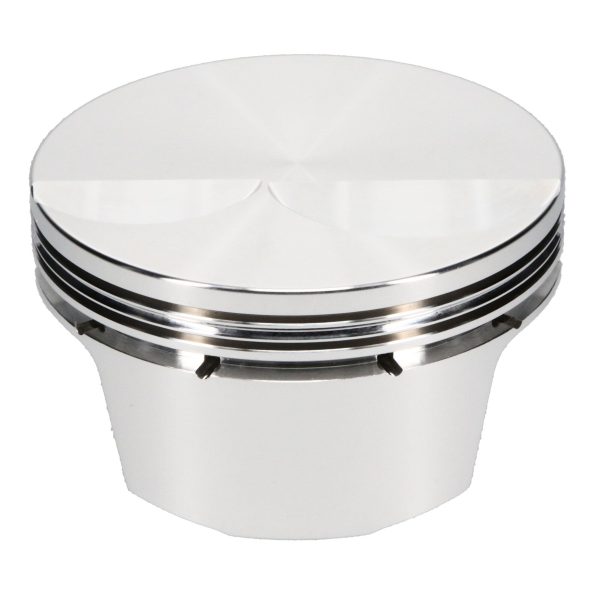

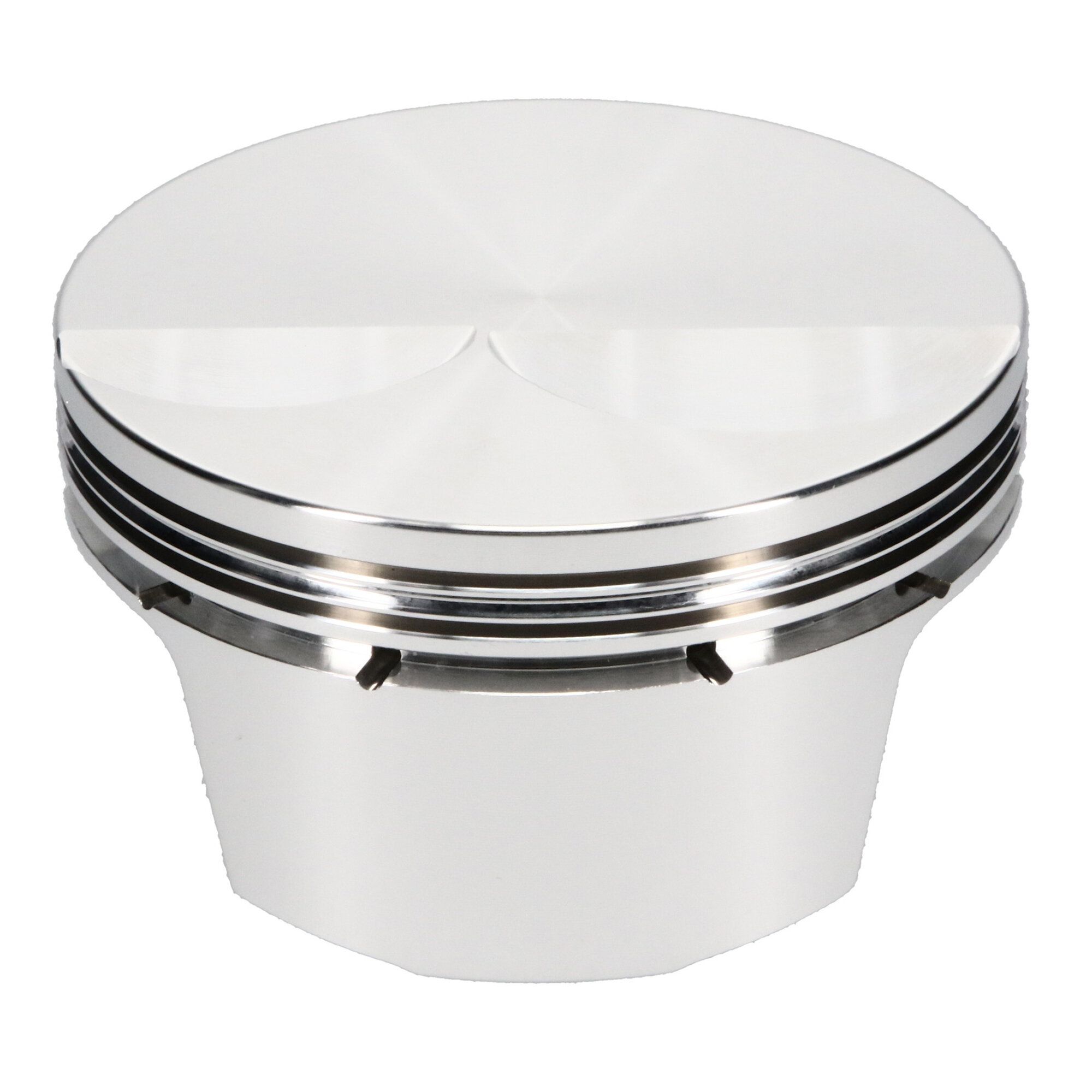

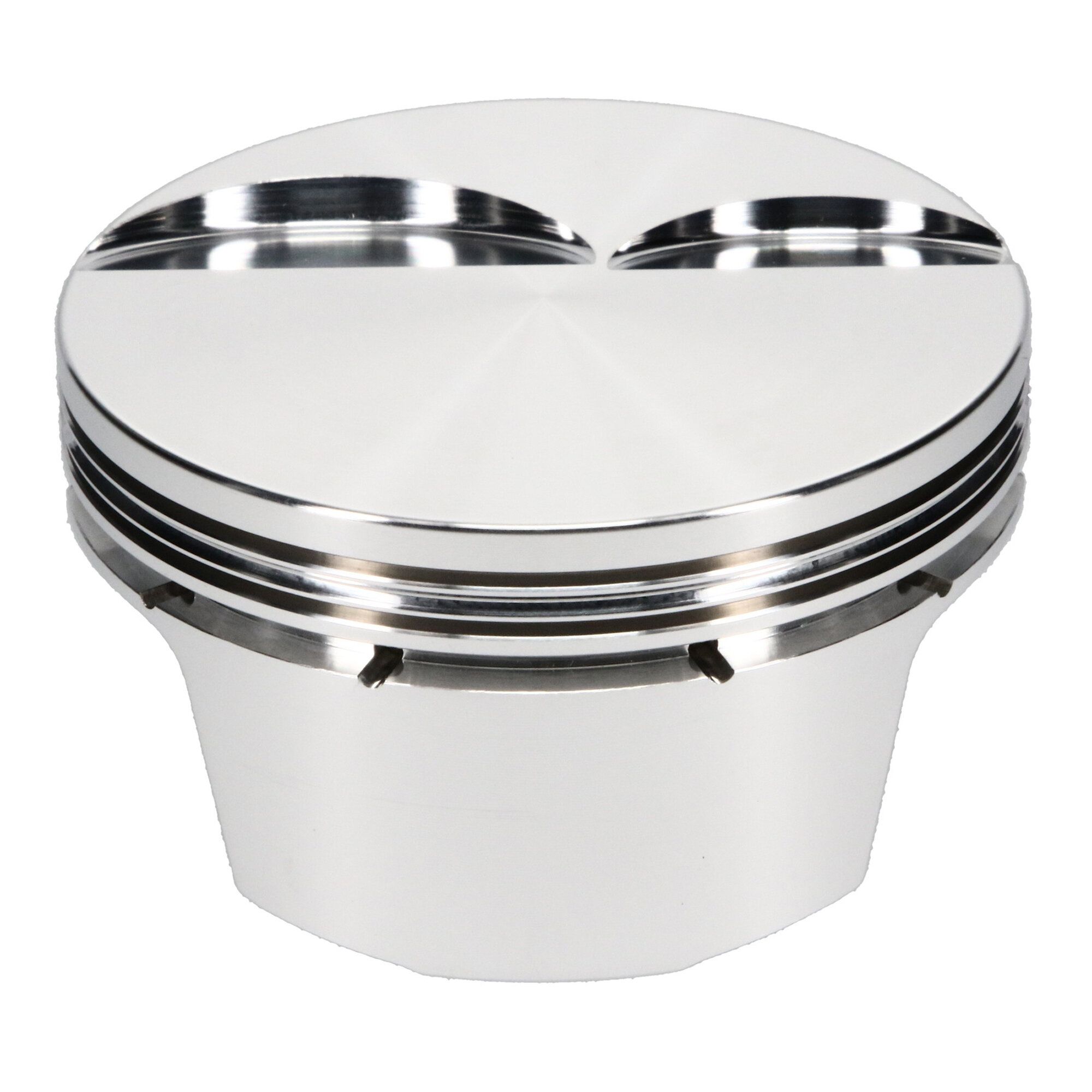

JE, Chevrolet, LS Gen III/IV, 3.898 in. Bore, 1.115 CD, Inverted Dome/Dish, Left Piston
$109.20
JE Pistons LS1 series pistons utilize dedicated Forged Side Relief (FSR) forgings specifically designed for the demands of LS series engines. They are lightweight, extremely durable, and machined for modern 1.5mm, 1.5mm, 3.0mm performance ring sets.
Additional Attributes:
GTIN: 00193564200884
Add-On: J68008-3900-3
Add-On: 927-2250-17-51C
Add-On: 927-073-MW
Bore Diameter: 3.898
Compression Height: 1.115
Cylinder Head: LSX/L92 12 DEG
Engine: CHEVROLET LS GEN III/IV
Forging Type: FSR
Industry: Automotive
Make: CHEVROLET
Oil Ring Thickness: 0.149
Out of Stock Message: Call for Availability
Piston Avg Wt: 399
Piston Head Type: Dish
Piston Material: 2618
Piston Pin Length: 2.250
Piston Pin Material: 5115
Piston Pin Outside Diameter: 0.927
Piston Pin Wall Thickness: 0.170
Piston Volume: -29.9
Product Market: Domestic
Prop 65 (C, R or CR): CR
Prop 65 Yes/No: Yes
Ringset Included: No
Second Compression Ring Thickness: 0.06
Top Compression Ring Thickness: 0.06
Extened Information:
Life Cycle Status: Available To Order
Emissions : Electronically Announced
Packaging:
Quantity of Each: 1
Package UOM: EA
