JE, Chevrolet, 4.005 in. Bore, Right

SKU: BHXG-312087R

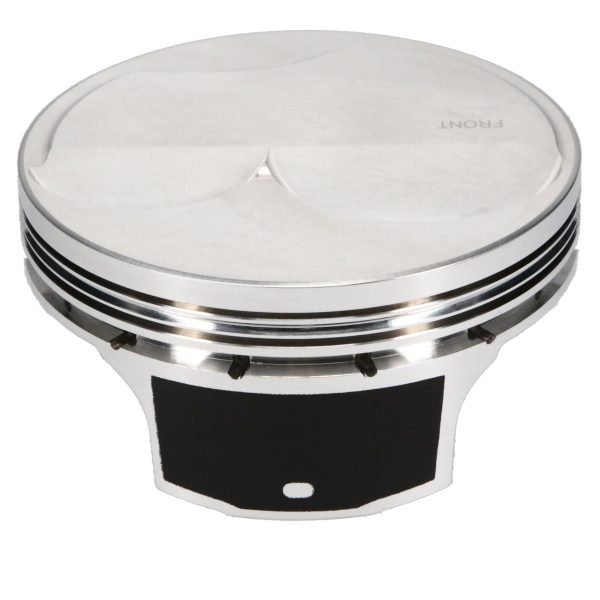

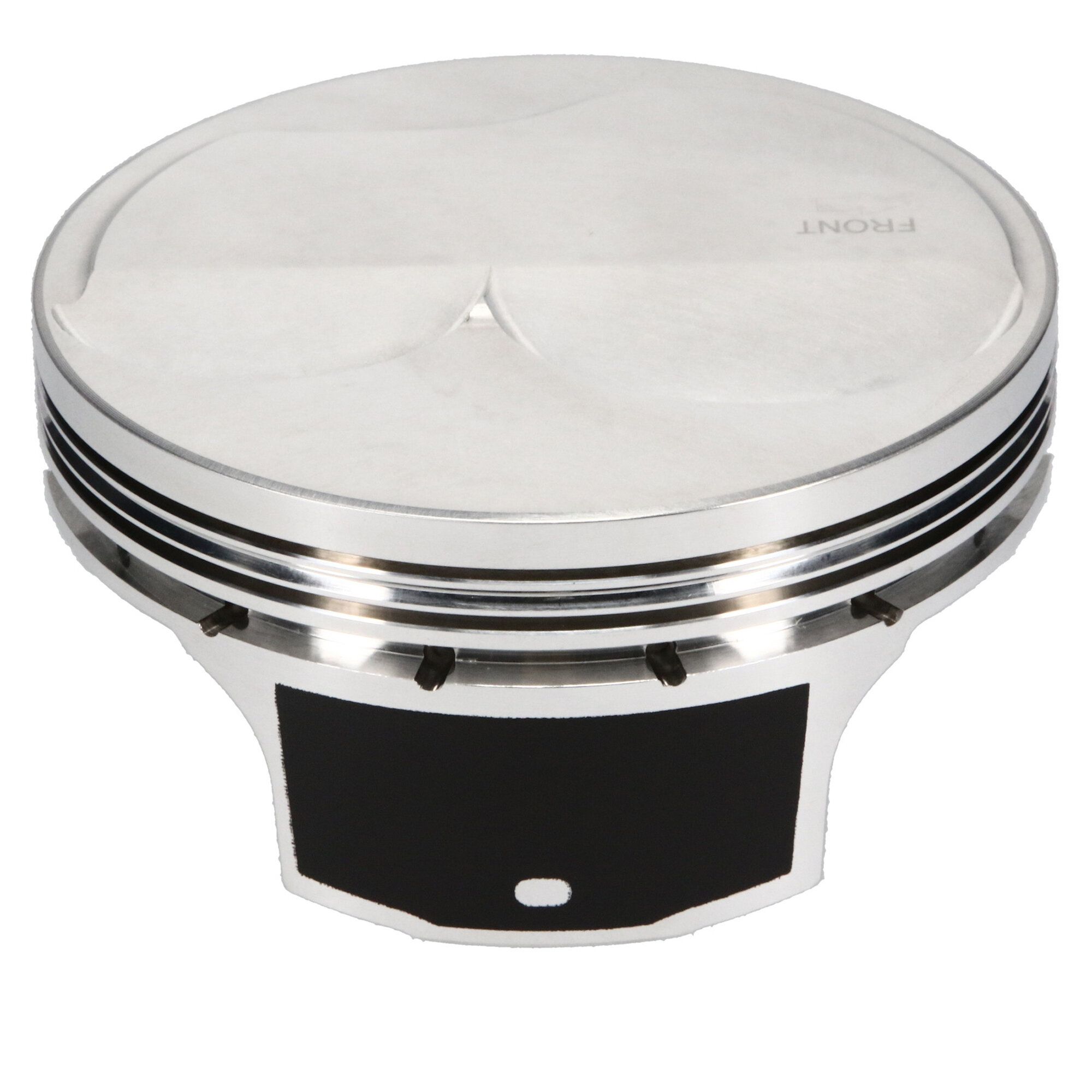

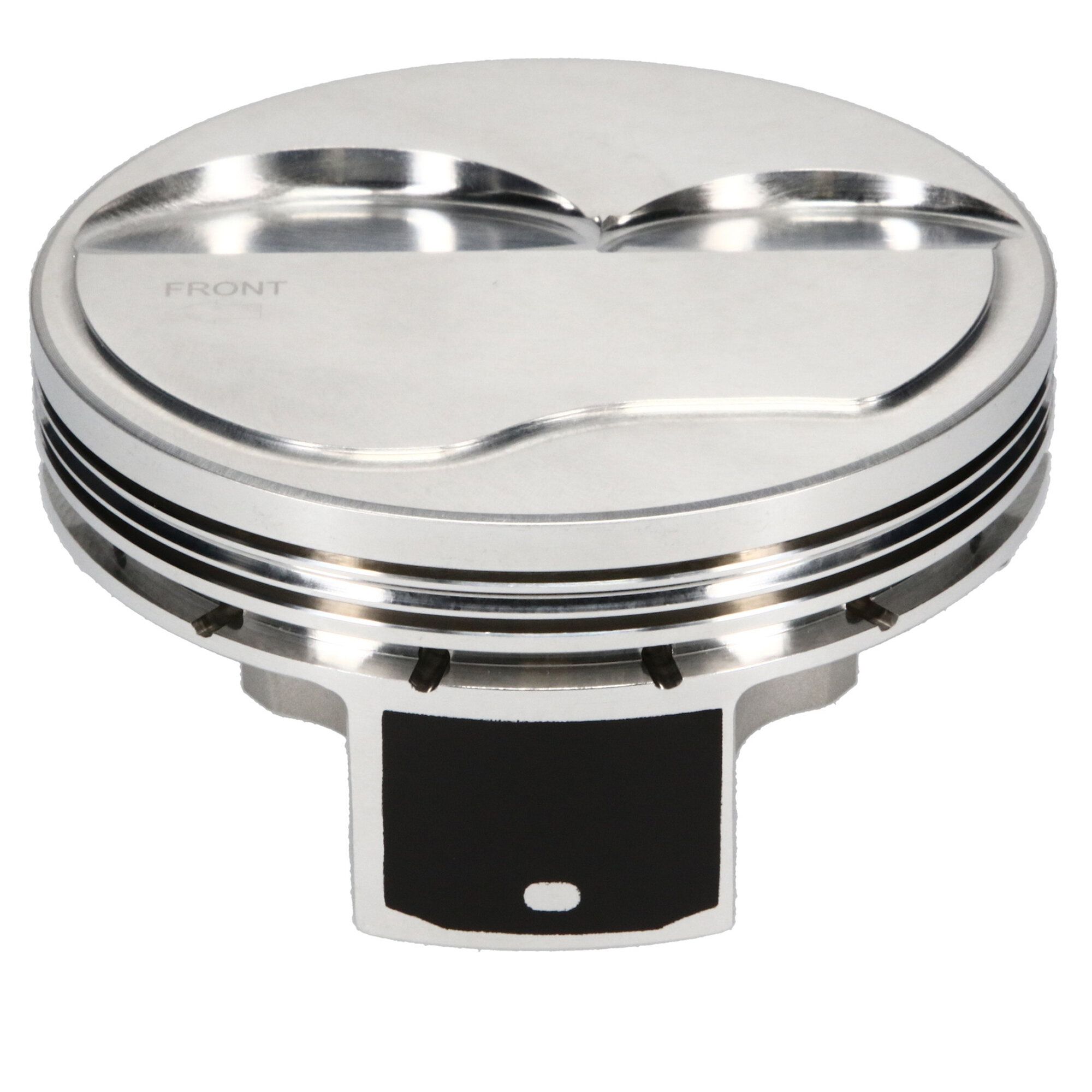

JE, Chevrolet, LS Gen III/IV, 4.005 in. Bore, 1.340 CD, Dome, Right Piston

JE Pistons asymmetrical FSR (Forged Side Relief) piston line incorporates modern forging design with a larger skirt on the major thrust side and smaller, friction-reducing skirt on the minor thrust side. Combined with precision CNC machining, the result is a high-strength, lightweight piston that is extremely durable.

Additional Attributes:

GTIN: 00193564207173
Add-On: JG3108-4000-7
Add-On: 945-2250-15-51C
Add-On: 945-073-MW
Bore Diameter: 4.005
Compression Height: 1.340
Cylinder Head: GM LS1 15 DEG
Forging Type: FSR
Industry: Automotive
Oil Ring Thickness: 0.1175
Out of Stock Message: Call for Availability
Piston Avg Wt: 455
Piston Head Type: Dome
Piston Material: 2618
Piston Pin Length: 2.250
Piston Pin Material: 5115
Piston Pin Outside Diameter: 0.945
Piston Pin Wall Thickness: 0.150
Piston Volume: 11.8
Product Market: Domestic
Prop 65 (C, R or CR): CR
Prop 65 Yes/No: Yes
Ringset Included: No
Second Compression Ring Thickness: 0.06
Top Compression Ring Thickness: 0.048

Extened Information:

Emissions : Electronically Announced
Life Cycle Status: Available To Order


Quantity of Each: 1
Package UOM: EA
