JE, Chevrolet, 4.010 in. Bore, Left

$134.10
SKU: BHXG-311978L

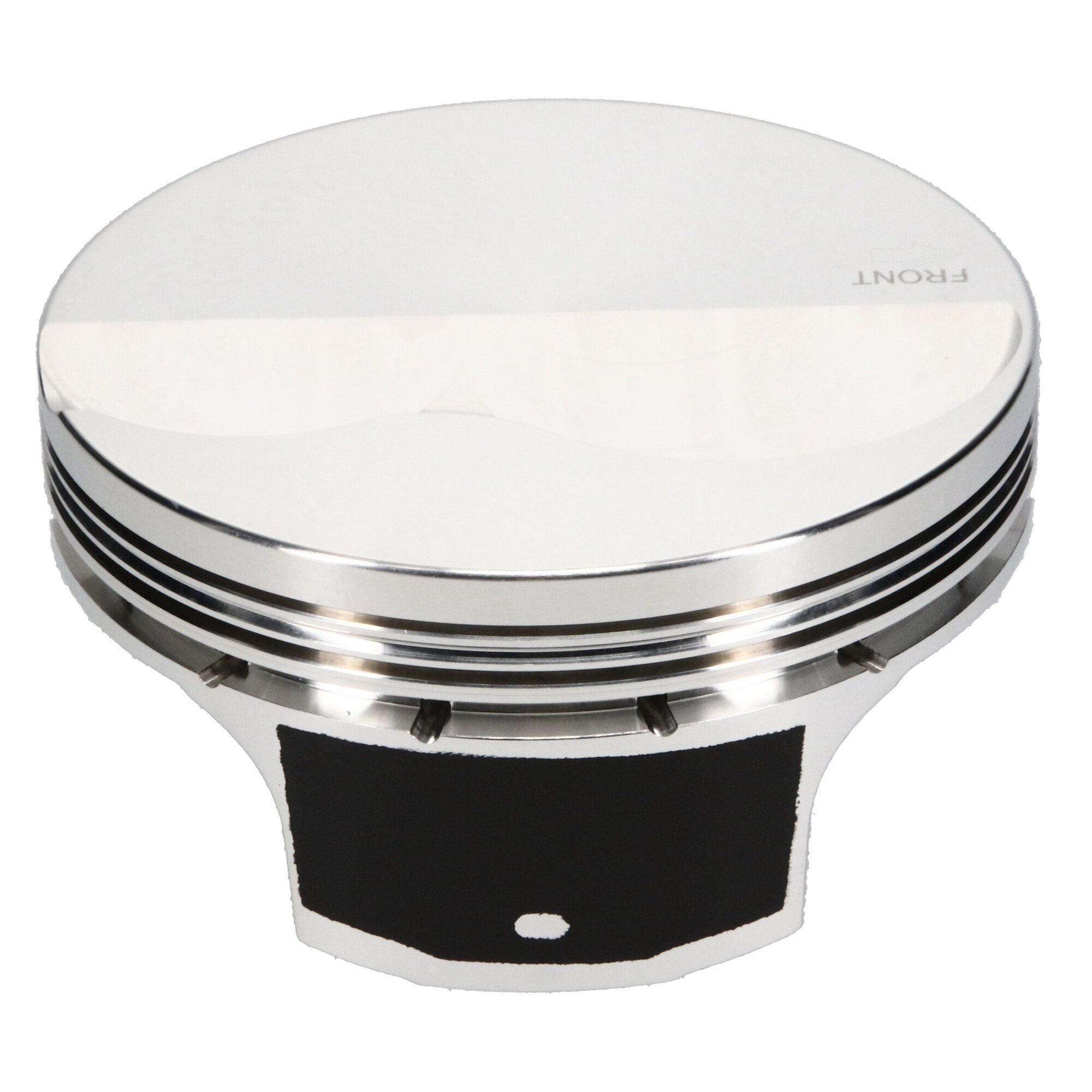

JE, Chevrolet, LS Gen III/IV, 4.010 in. Bore, 1.115 CD, Flat Top, Left Piston

JE Pistons asymmetrical FSR (Forged Side Relief) piston line incorporates modern forging design with a larger skirt on the major thrust side and smaller, friction-reducing skirt on the minor thrust side. Combined with precision CNC machining, the result is a high-strength, lightweight piston that is extremely durable.

Additional Attributes:

GTIN: 00193564208224
Add-On: JG3108-4010-4
Add-On: 927-2250-15-51C
Add-On: 927-073-MW
Bore Diameter: 4.010
Compression Height: 1.115
Cylinder Head: LS 12 DEG/15 DEG COMBO VR
Engine: CHEVROLET LS GEN III/IV
Forging Type: FSR
Industry: Automotive
Make: CHEVROLET
Oil Ring Thickness: 0.149
Out of Stock Message: Call for Availability
Piston Avg Wt: 385
Piston Head Type: Flat
Piston Material: 2618
Piston Pin Length: 2.250
Piston Pin Material: 5115
Piston Pin Outside Diameter: 0.927
Piston Pin Wall Thickness: 0.150
Piston Volume: -5
Product Market: Domestic
Prop 65 (C, R or CR): CR
Prop 65 Yes/No: Yes
Ringset Included: No
Second Compression Ring Thickness: 0.06
Top Compression Ring Thickness: 0.048

Extened Information:

Emissions : Electronically Announced
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
