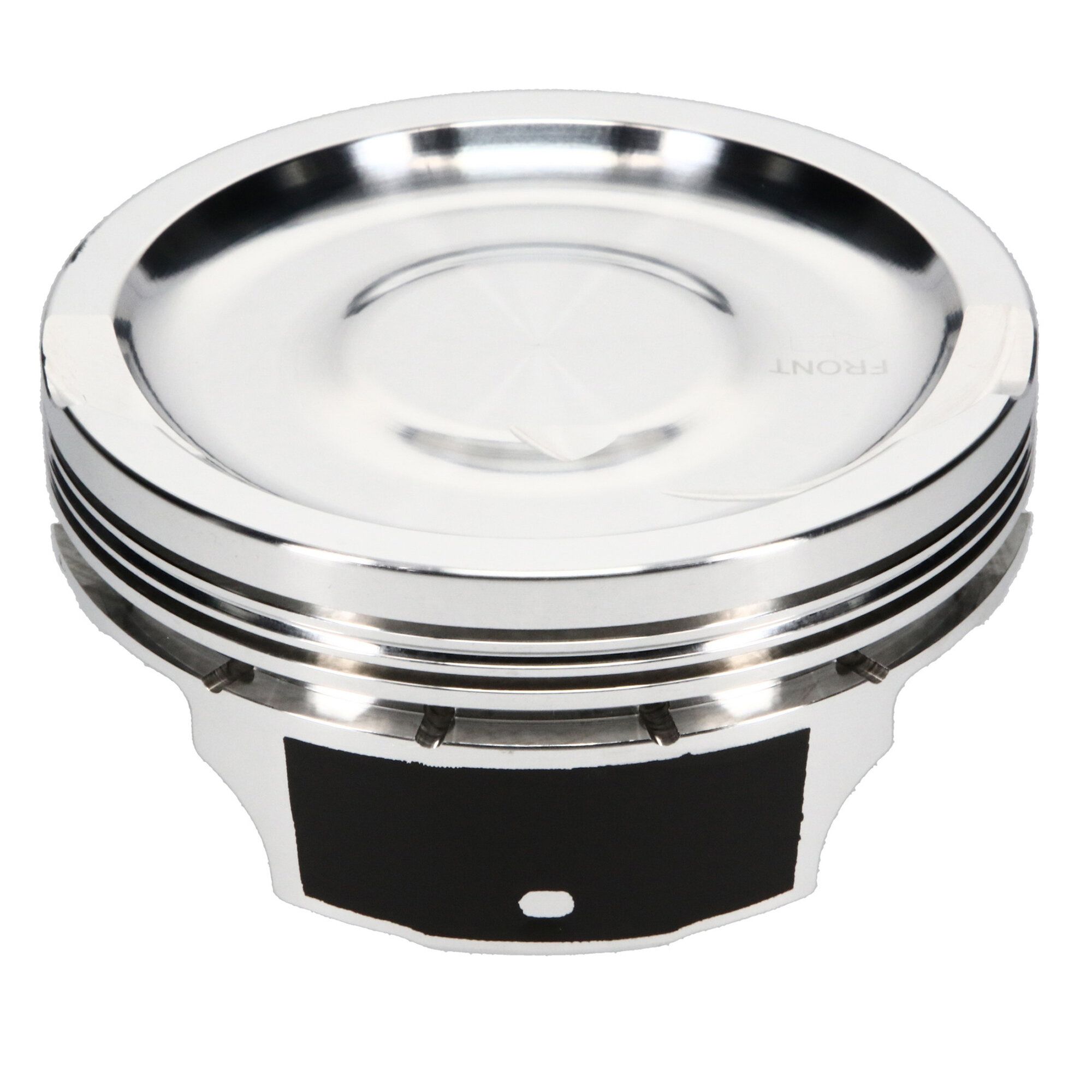

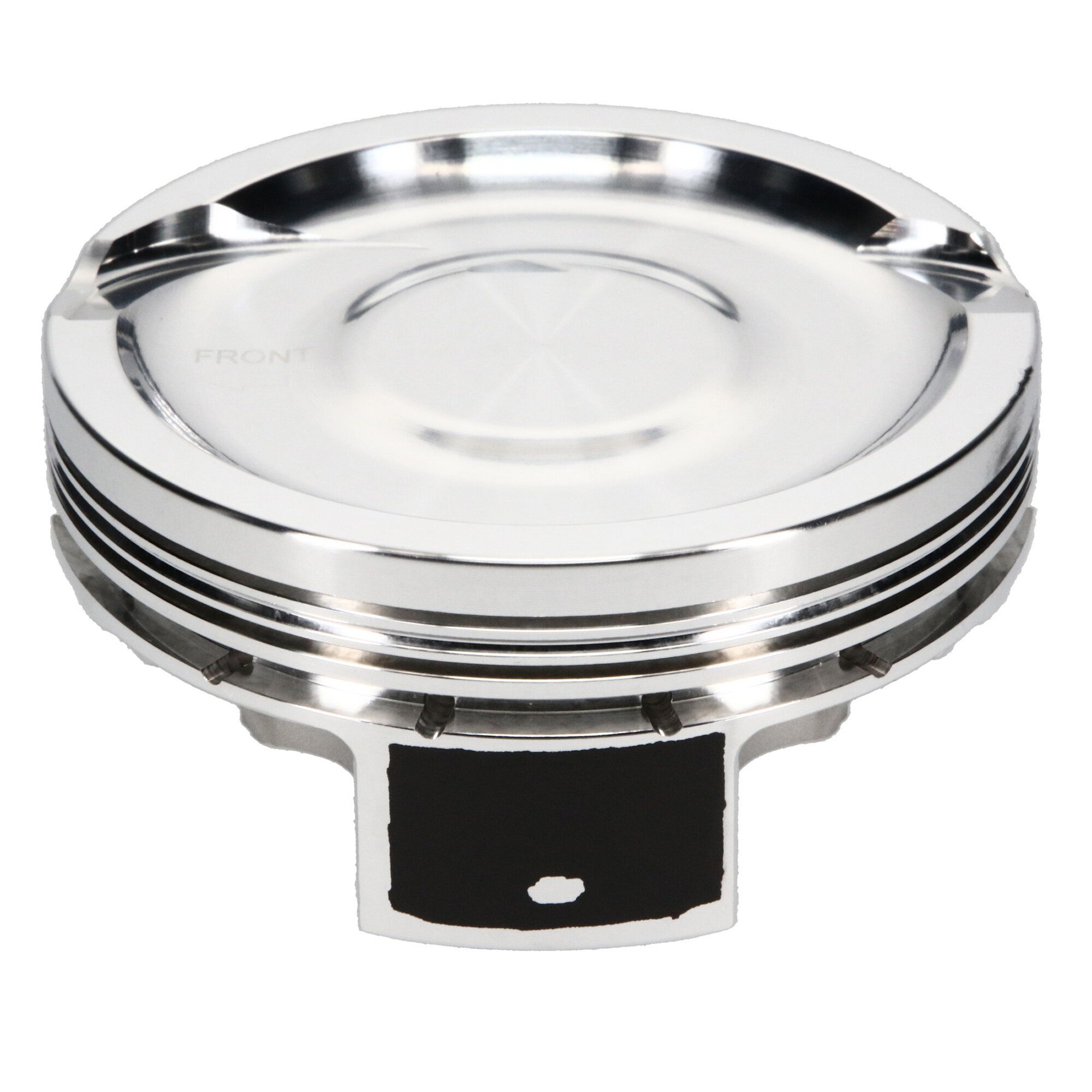

JE, Chevrolet, LS Gen III/IV, 4.010 in. Bore, 1.165 CD, Inverted Dome/Dish, Left Piston
JE Pistons asymmetrical FSR (Forged Side Relief) piston line incorporates modern forging design with a larger skirt on the major thrust side and smaller, friction-reducing skirt on the minor thrust side. Combined with precision CNC machining, the result is a high-strength, lightweight piston that is extremely durable.
Additional Attributes:
GTIN: 00193564206305
Add-On: JG3108-4010-4
Add-On: 927-2250-17-51C
Add-On: 927-073-MW
Bore Diameter: 4.010
Compression Height: 1.165
Cylinder Head: LS 12 DEG/15 DEG COMBO VR
Engine: CHEVROLET LS GEN III/IV
Forging Type: FSR
Industry: Automotive
Make: CHEVROLET
Oil Ring Thickness: 0.149
Out of Stock Message: Call for Availability
Piston Avg Wt: 401
Piston Head Type: Dish
Piston Material: 2618
Piston Pin Length: 2.250
Piston Pin Material: 5115
Piston Pin Outside Diameter: 0.927
Piston Pin Wall Thickness: 0.170
Piston Volume: -21.6
Product Market: Domestic
Prop 65 (C, R or CR): CR
Prop 65 Yes/No: Yes
Ringset Included: No
Second Compression Ring Thickness: 0.06
Top Compression Ring Thickness: 0.048
Extened Information:
Emissions : Electronically Announced
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
