JE, Chevrolet, 4.020 in. Bore, Left

$136.26
SKU: BHXG-181910L

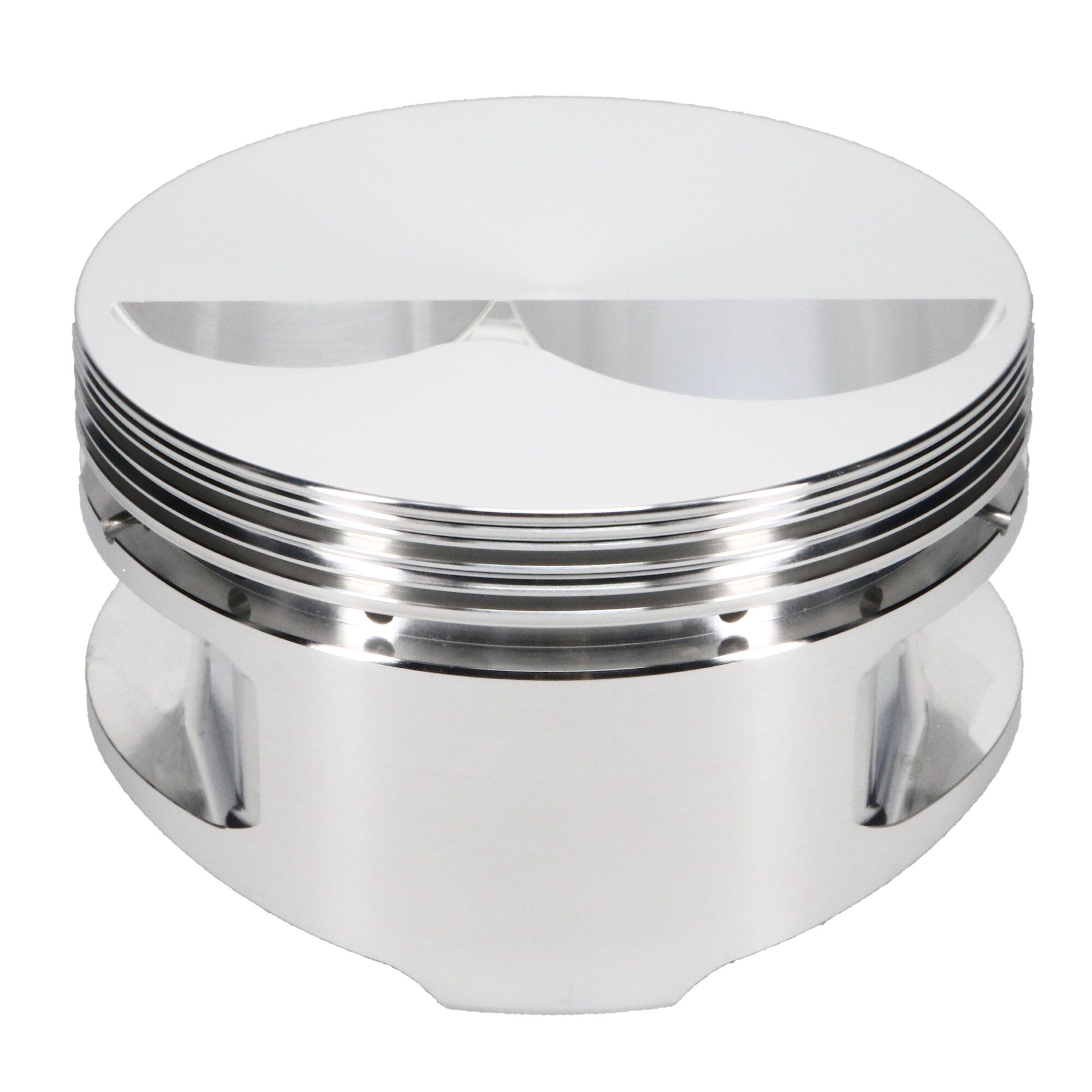

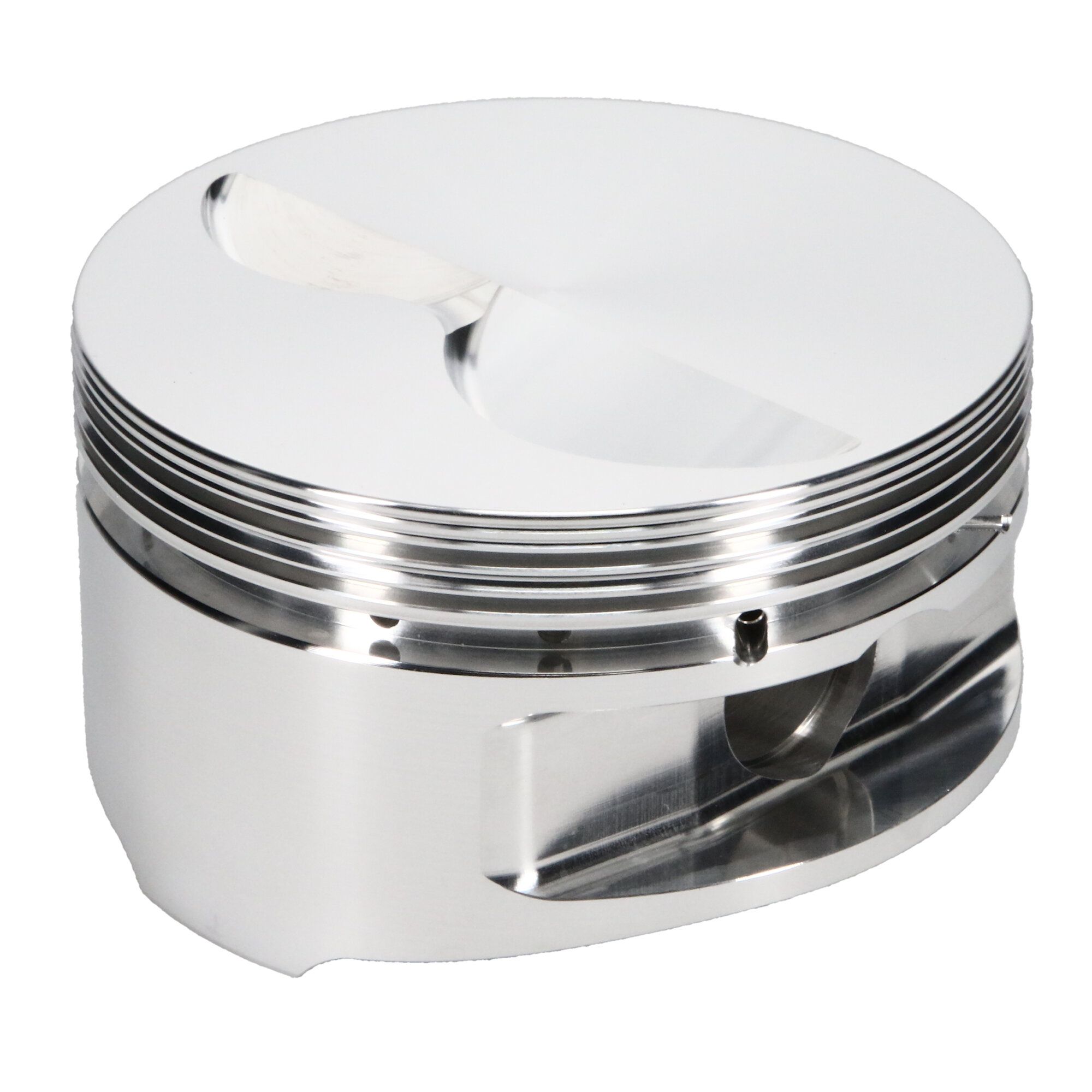

JE, Chevrolet, Small Block Chevrolet, 4.020 in. Bore, 1.125 CD, Flat Top, Left Piston

JE Pistons is the leader in forged racing pistons. With 70-plus years of experience, in-house forging, and industry-leading technology, JE Pistons are designed to perform at the top levels of all forms of motorsports.

Additional Attributes:

GTIN: 00193564188533
Second Compression Ring Thickness: 0.064
Top Compression Ring Thickness: 0.064
Add-On: J30008-4020-5
Add-On: 927-2500-15-51S
Add-On: 927-042-CS
Bore Diameter: 4.020
Compression Height: 1.125
Cylinder Head: CHEVROLET 23 DEG 20/30
Engine: SMALL BLOCK CHEVROLET
Forging Type: Round
Industry: Automotive
Make: CHEVROLET
Oil Ring Thickness: 0.119
Out of Stock Message: Call for Availability
Piston Avg Wt: 384
Piston Head Type: Flat
Piston Material: 2618
Piston Pin Length: 2.500
Piston Pin Material: 5115
Piston Pin Outside Diameter: 0.927
Piston Pin Wall Thickness: 0.150
Piston Volume: -5
Product Market: Domestic
Prop 65 (C, R or CR): CR
Prop 65 Yes/No: Yes
Ringset Included: No

Extened Information:

Emissions : Electronically Announced
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
