JE, Chevrolet, 4.030 in. Bore, Left

SKU: BHXG-170689L

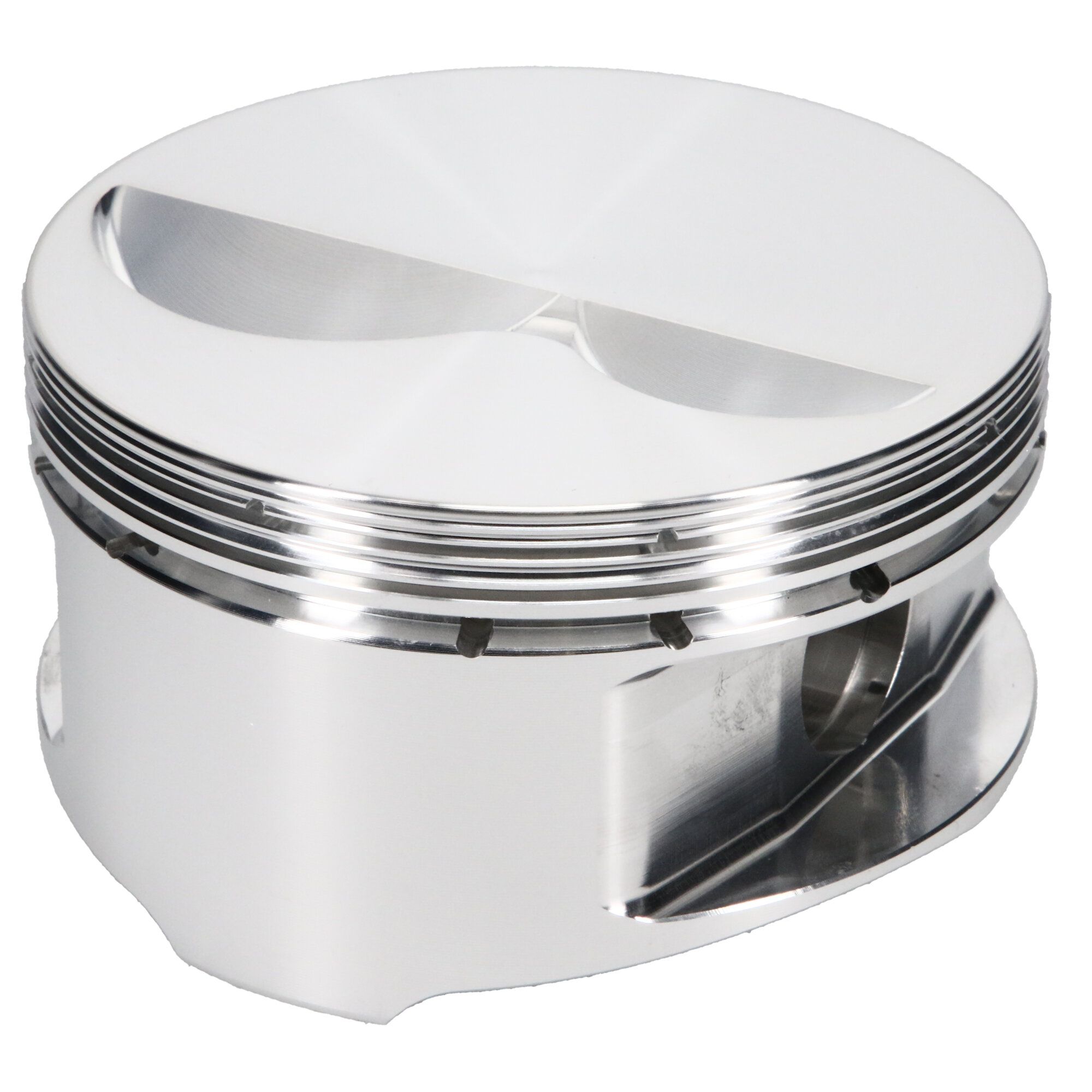

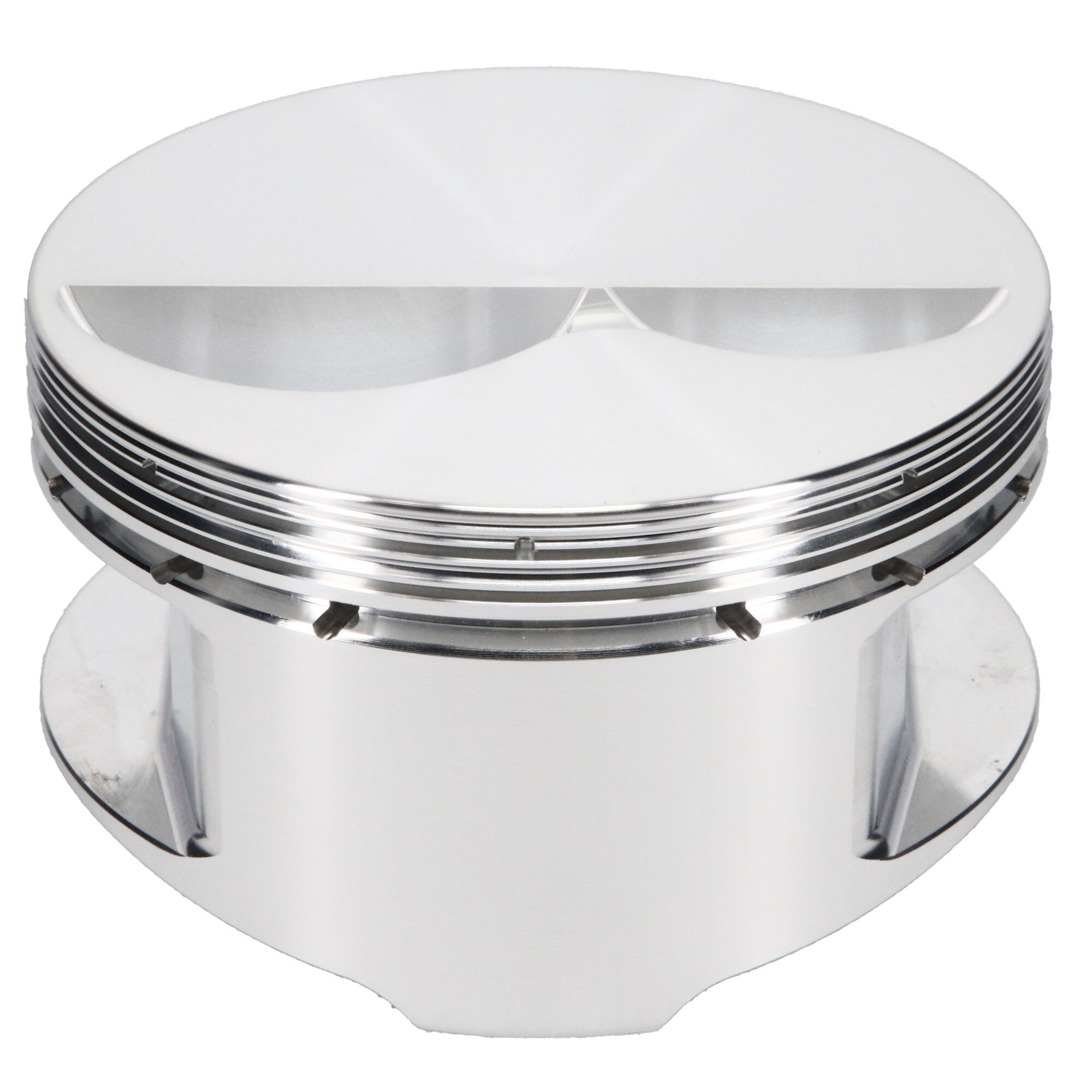

JE, Chevrolet, Small Block Chevrolet, 4.030 in. Bore, 1.550 CD, Flat Top, Left Piston

JE Pistons is the leader in forged racing pistons. With 70-plus years of experience, in-house forging, and industry-leading technology, JE Pistons are designed to perform at the top levels of all forms of motorsports.

Additional Attributes:

GTIN: 00193564187390
Add-On: J71408-4030-5
Add-On: 927-2500-15-51S
Add-On: 927-042-CS
Bore Diameter: 4.030
Compression Height: 1.550
Cylinder Head: CHEVROLET 23 DEG 20/30
Forging Type: Round
Industry: Automotive
Oil Ring Thickness: 0.119
Out of Stock Message: Call for Availability
Piston Avg Wt: 439
Piston Head Type: Flat
Piston Material: 2618
Piston Pin Length: 2.500
Piston Pin Material: 5115
Piston Pin Outside Diameter: 0.927
Piston Pin Wall Thickness: 0.150
Piston Volume: -4.1
Product Market: Domestic
Prop 65 (C, R or CR): CR
Prop 65 Yes/No: Yes
Ringset Included: No
Second Compression Ring Thickness: 0.044
Top Compression Ring Thickness: 0.0436

Extened Information:

Emissions : Electronically Announced
Life Cycle Status: Available To Order


Quantity of Each: 1
Package UOM: EA
