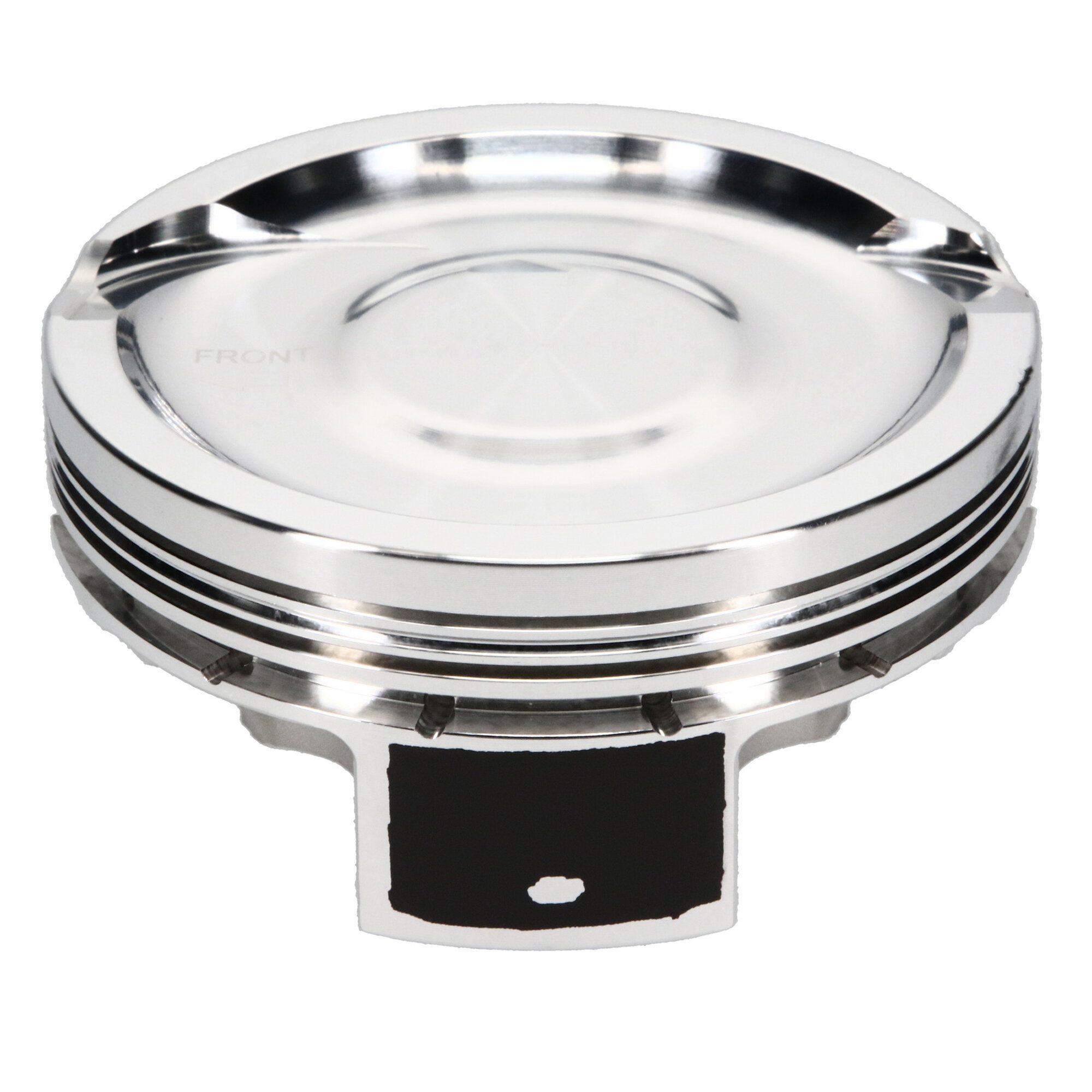

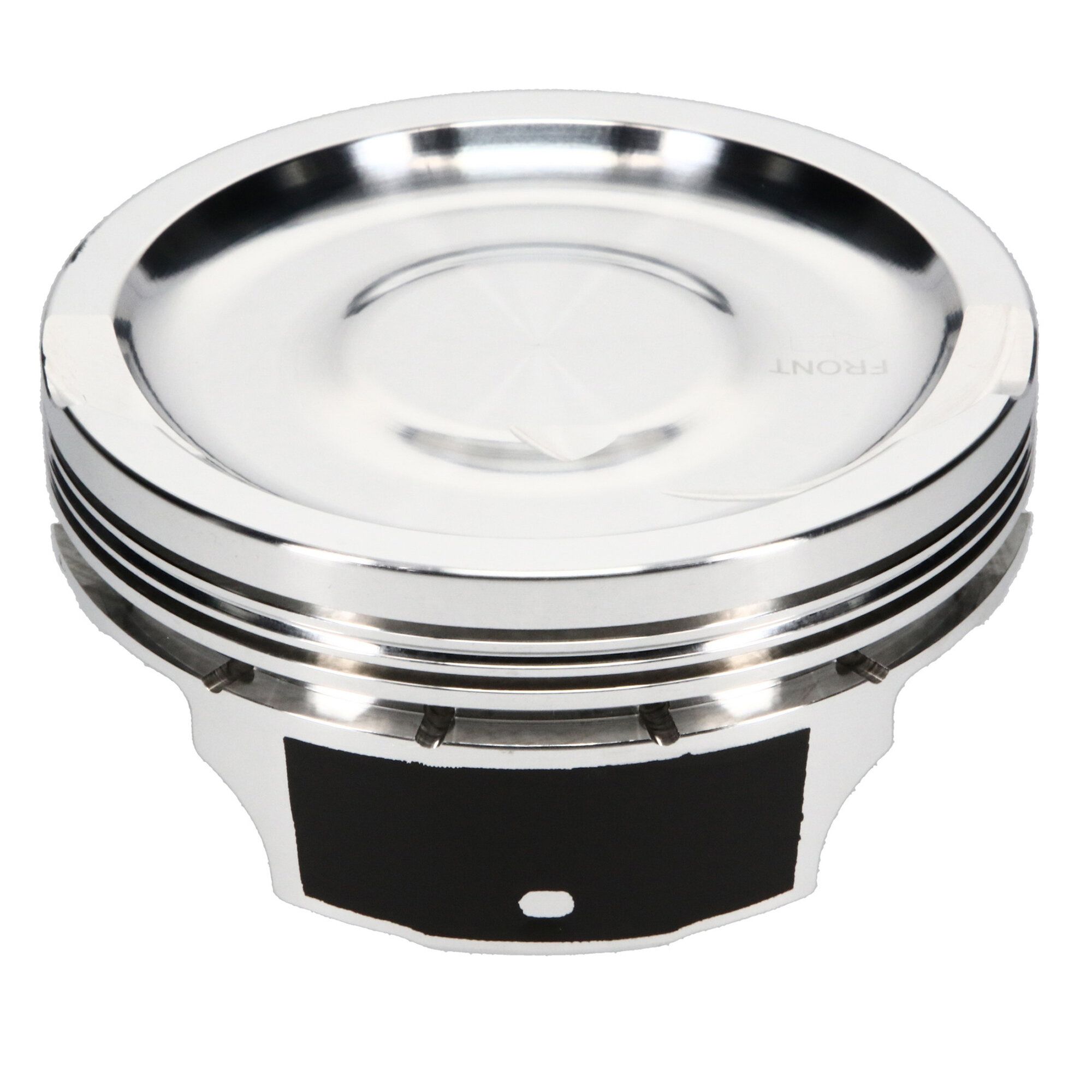

JE, Chevrolet, LS7, 4.125 in. Bore, 1.115 CD, Inverted Dome/Dish, Left Piston
JE Pistons asymmetrical FSR (Forged Side Relief) piston line incorporates modern forging design with a larger skirt on the major thrust side and smaller, friction-reducing skirt on the minor thrust side. Combined with precision CNC machining, the result is a high-strength, lightweight piston that is extremely durable.
Additional Attributes:
GTIN: 00193564208934
Piston Pin Outside Diameter: 0.927
Piston Pin Wall Thickness: 0.170
Piston Volume: -30
Product Market: Domestic
Prop 65 (C, R or CR): CR
Prop 65 Yes/No: Yes
Ringset Included: No
Second Compression Ring Thickness: 0.06
Top Compression Ring Thickness: 0.048
Add-On: JG31F8-4125-2
Add-On: 927-2250-17-51C
Add-On: 927-073-MW
Bore Diameter: 4.125
Compression Height: 1.115
Cylinder Head: GM LS7 / LSX 12 DEG
Engine: CHEVROLET LS7
Forging Type: FSR
Industry: Automotive
Make: CHEVROLET
Oil Ring Thickness: 0.149
Out of Stock Message: Call for Availability
Piston Avg Wt: 427
Piston Head Type: Dish
Piston Material: 2618
Piston Pin Length: 2.250
Piston Pin Material: 5115
Extened Information:
Emissions : Electronically Announced
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
