JE, Chevrolet, 4.145 in. Bore, Left

$152.49
SKU: BHXG-323649L

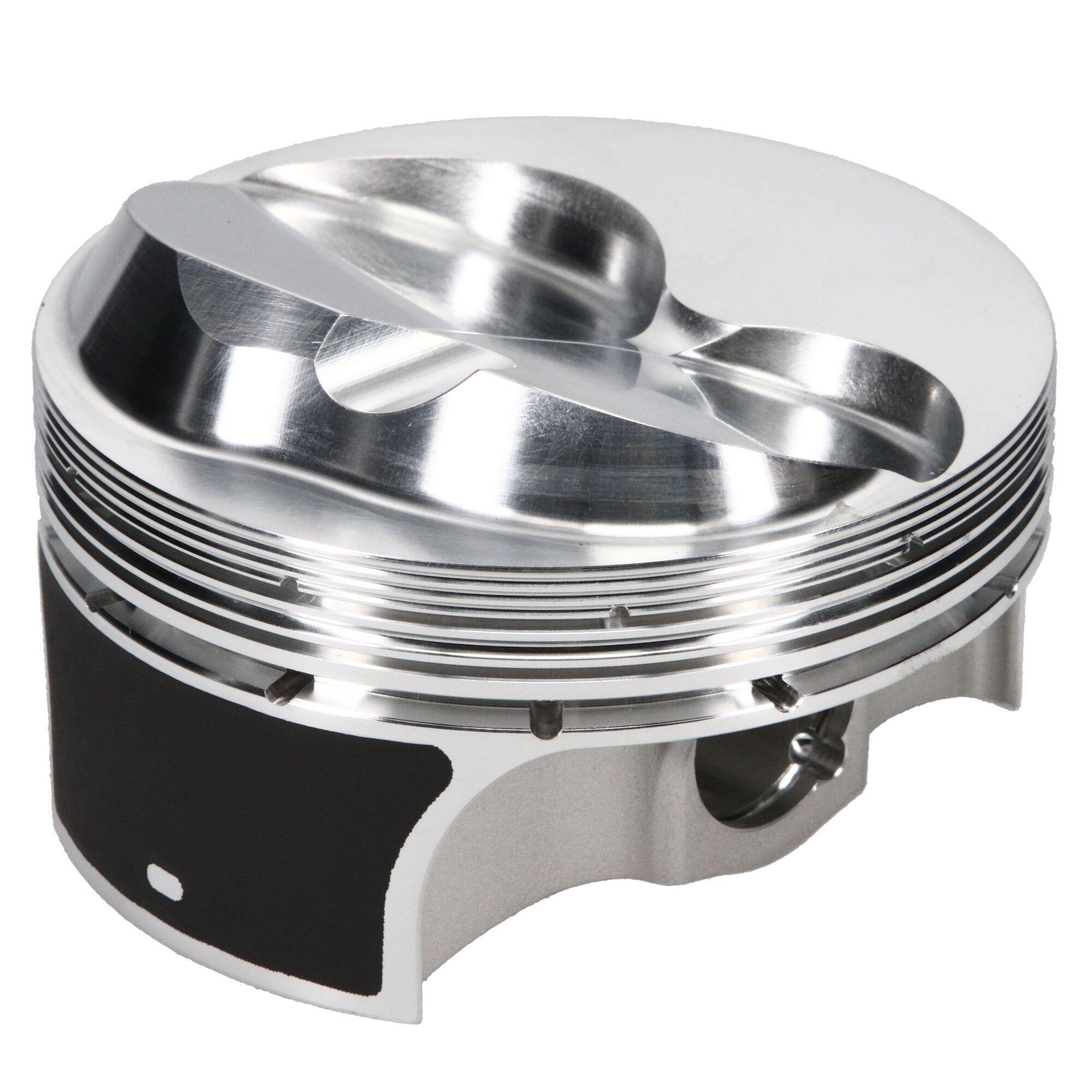

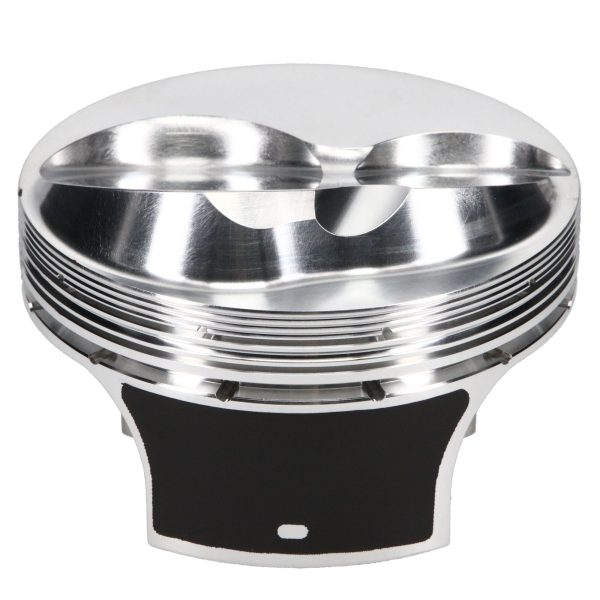

JE, Chevrolet, Small Block Chevrolet, 4.145 in. Bore, 1.100 CD, Dome, Left Piston

JE Pistons is the leader in forged racing pistons. With 70-plus years of experience, in-house forging, and industry-leading technology, JE Pistons are designed to perform at the top levels of all forms of motorsports.

Additional Attributes:

GTIN: 00193564191816
Add-On: JG7708-4145-5
Add-On: 927-2250-17-51C
Add-On: 927-073-MW
Bore Diameter: 4.145
Compression Height: 1.100
Cylinder Head: CHEVROLET 23 DEG 40/60
Engine: SMALL BLOCK CHEVROLET
Forging Type: FSR
Industry: Automotive
Make: CHEVROLET
Oil Ring Thickness: 0.1175
Out of Stock Message: Call for Availability
Piston Avg Wt: 451
Piston Head Type: Dome
Piston Material: 2618
Piston Pin Length: 2.250
Piston Pin Material: 5115
Piston Pin Outside Diameter: 0.927
Piston Pin Wall Thickness: 0.170
Piston Volume: 7
Product Market: Domestic
Prop 65 (C, R or CR): CR
Prop 65 Yes/No: Yes
Ringset Included: No
Second Compression Ring Thickness: 0.044
Top Compression Ring Thickness: 0.0435

Extened Information:

Emissions : Electronically Announced
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
