JE, Chevrolet, 4.310 in. Bore, Single

SKU: BHXG-257974S

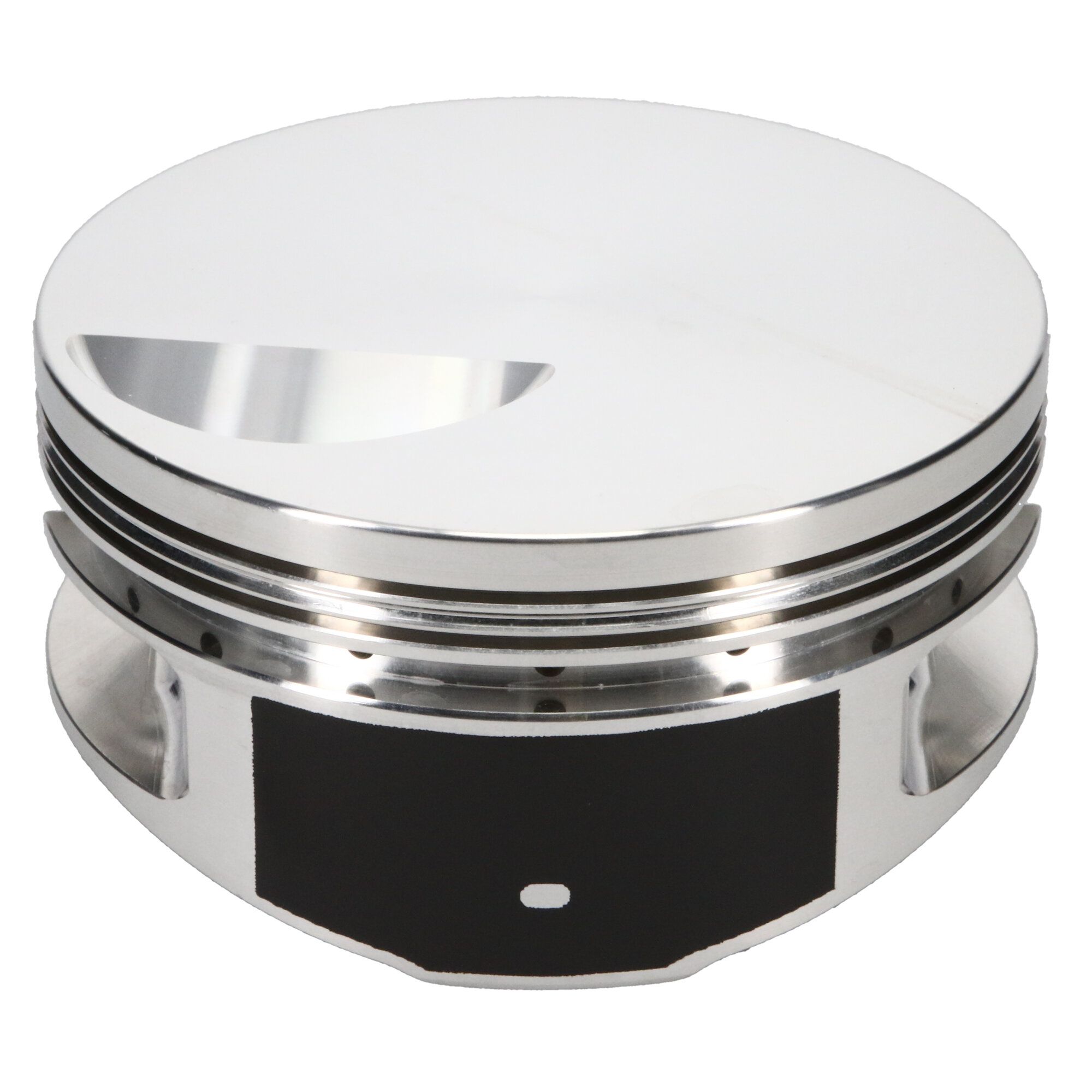

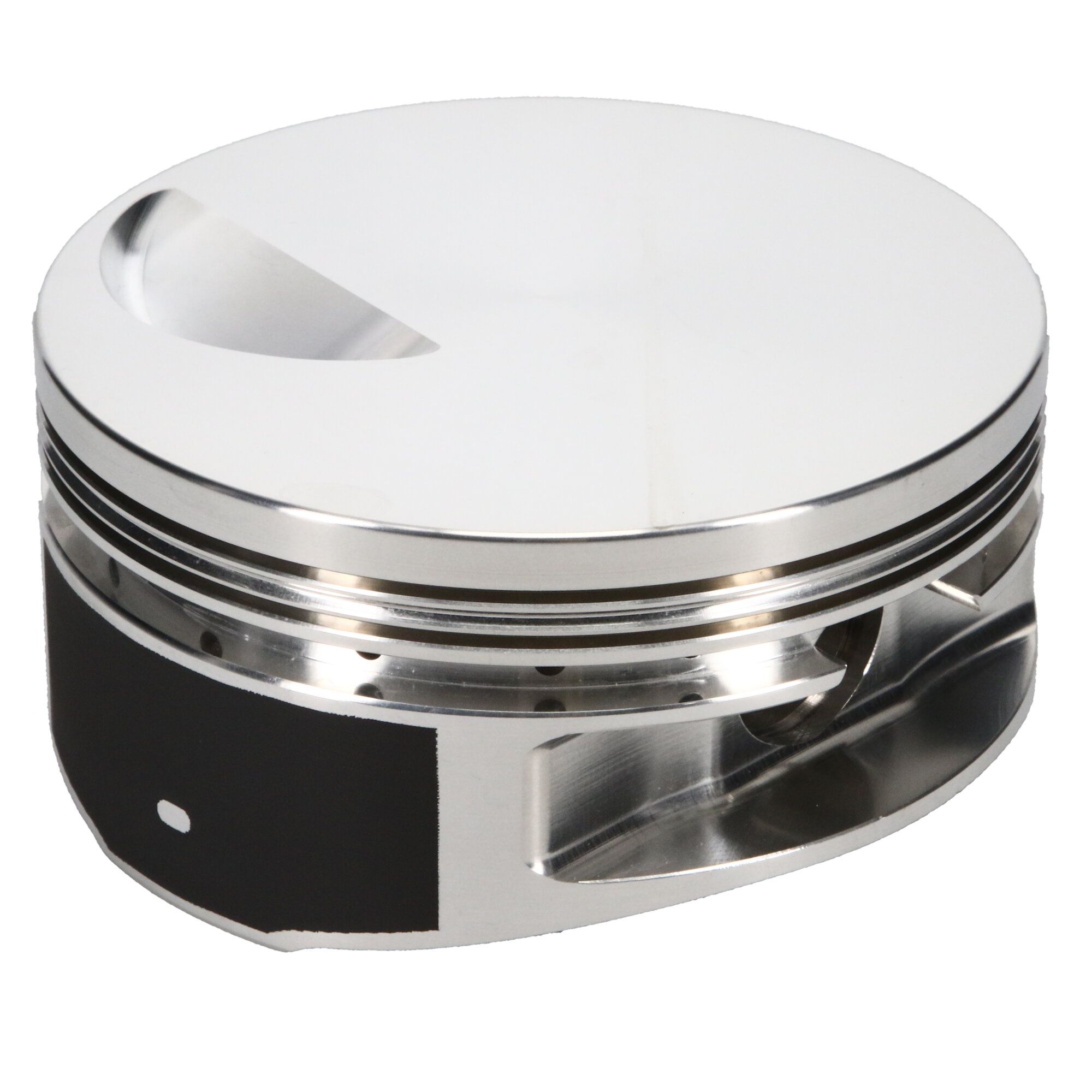

JE, Chevrolet, Big Block Chevrolet, 4.310 in. Bore, 1.520 CD, Flat Top, Single Piston

JE Pistons is the leader in forged racing pistons. With 70-plus years of experience, in-house forging, and industry-leading technology, JE Pistons are designed to perform at the top levels of all forms of motorsports.

Additional Attributes:

GTIN: 00193564197726
Second Compression Ring Thickness: 0.064
Top Compression Ring Thickness: 0.064
Add-On: J100F8-4310-5
Add-On: 990-2930-18-51S
Add-On: 990-042-CS
Bore Diameter: 4.310
Compression Height: 1.520
Cylinder Head: OPEN CHAMBER
Forging Type: Round
Industry: Automotive
Oil Ring Thickness: 0.188
Out of Stock Message: Call for Availability
Piston Avg Wt: 613
Piston Head Type: Flat
Piston Material: 2618
Piston Pin Length: 2.930
Piston Pin Material: 5115
Piston Pin Outside Diameter: 0.990
Piston Pin Wall Thickness: 0.180
Piston Volume: -3
Product Market: Domestic
Prop 65 (C, R or CR): CR
Prop 65 Yes/No: Yes
Ringset Included: No

Extened Information:

Emissions : Electronically Announced
Life Cycle Status: Available To Order


Quantity of Each: 1
Package UOM: EA
