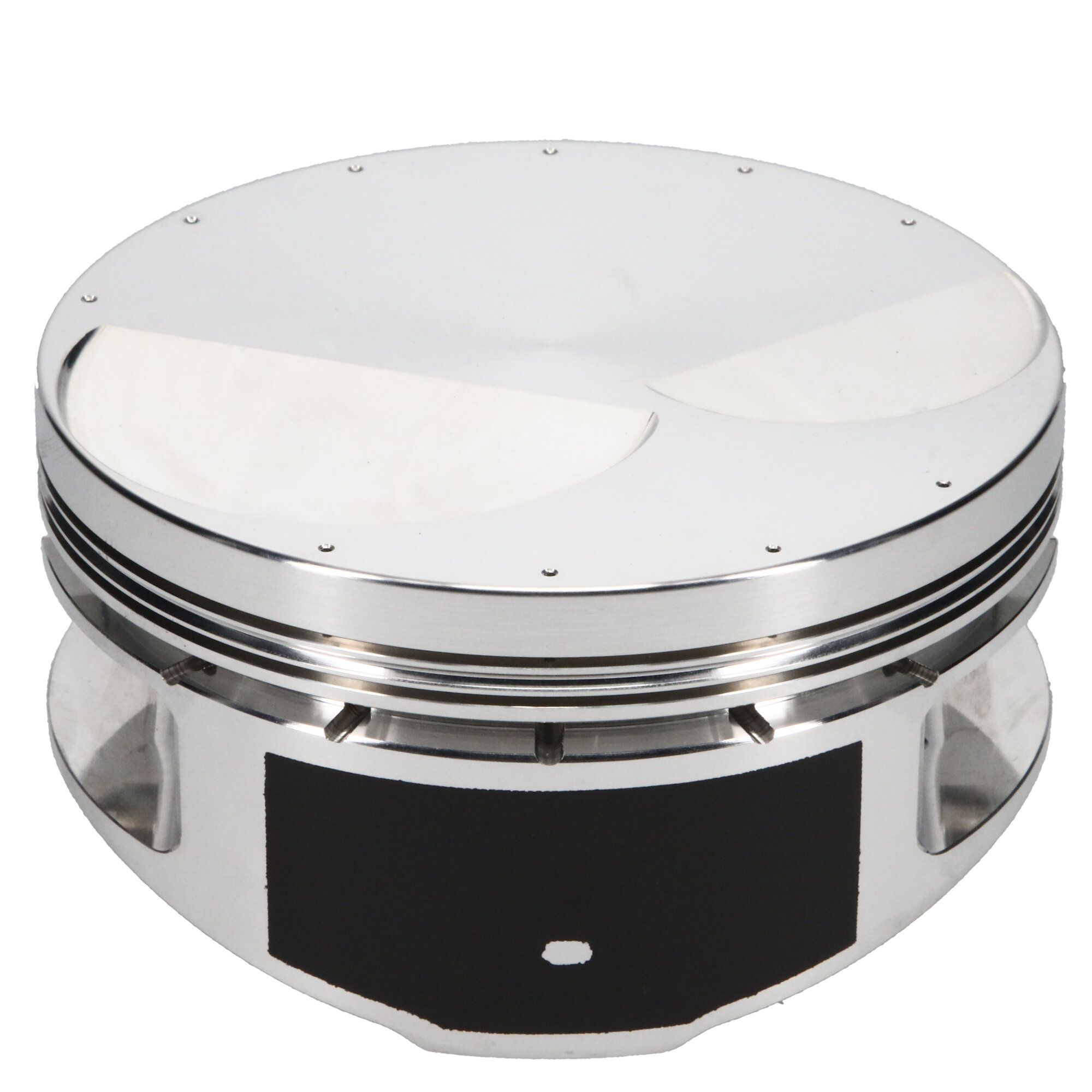

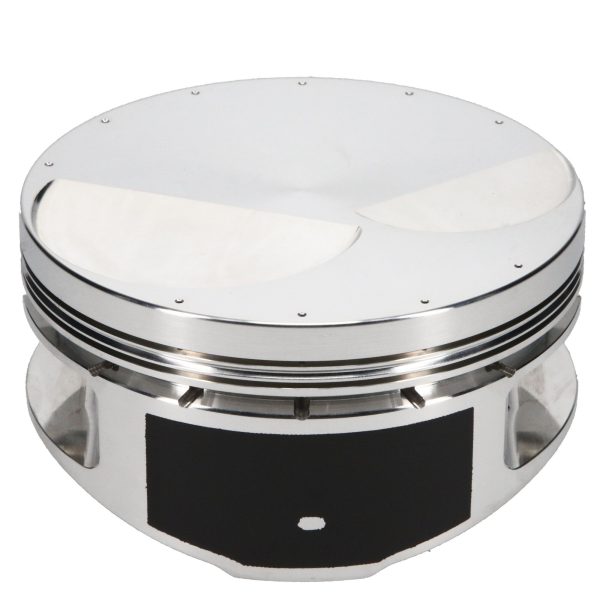

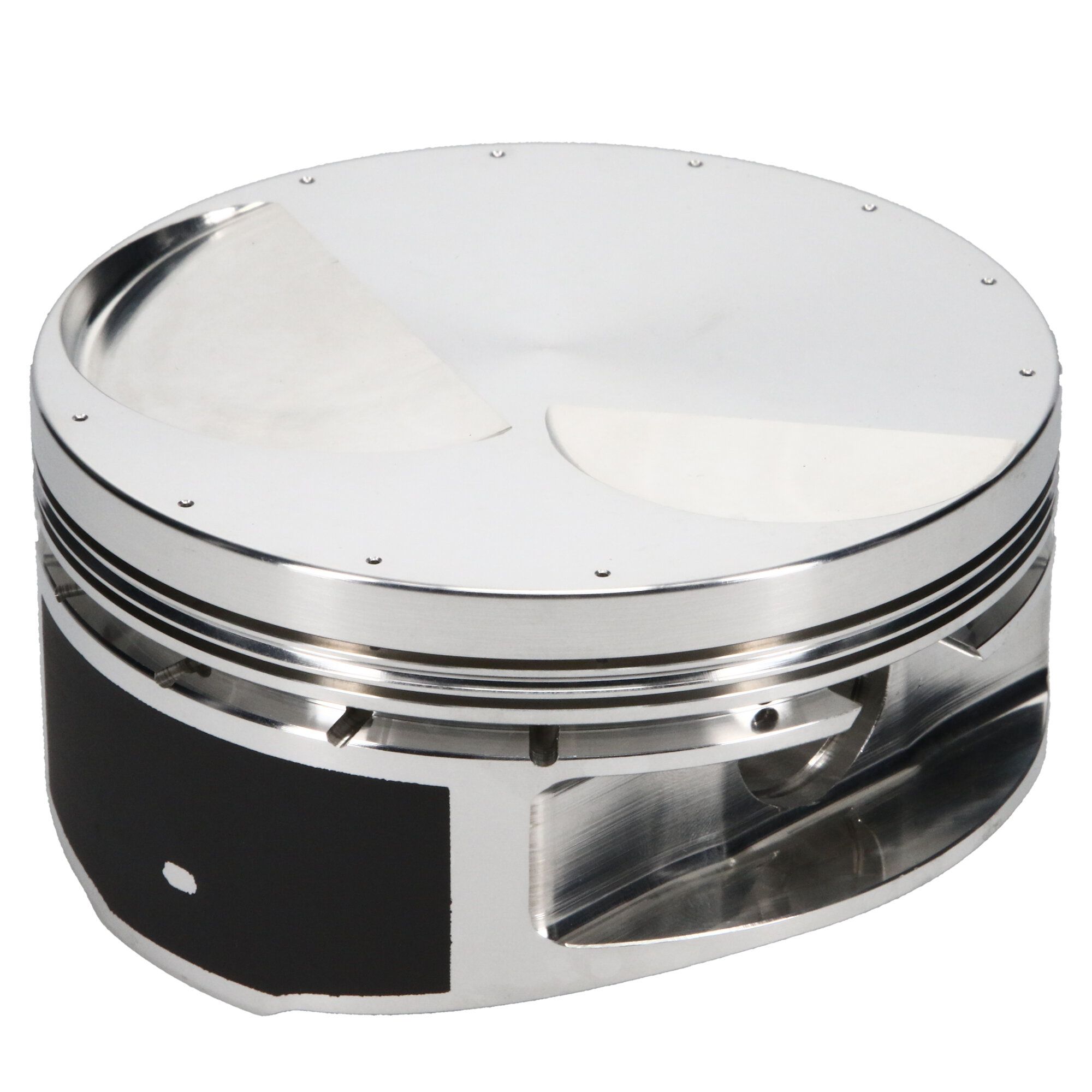

JE, Chevrolet, Big Block Chevrolet, 4.610 in. Bore, 1.120 CD, Flat Top, Right Piston
JE Pistons is the leader in forged racing pistons. With 70-plus years of experience, in-house forging, and industry-leading technology, JE Pistons are designed to perform at the top levels of all forms of motorsports.
Additional Attributes:
GTIN: 00193564195609
Add-On: JG7708-4610-5
Add-On: 990-2930-18-51S
Add-On: 990-042-CS
Bore Diameter: 4.610
Compression Height: 1.120
Cylinder Head: BIG CHIEF 12 DEG/14 DEG
Engine: BIG BLOCK CHEVY
Forging Type: Round
Industry: Automotive
Make: CHEVROLET
Oil Ring Thickness: 0.149
Out of Stock Message: Call for Availability
Piston Avg Wt: 571
Piston Head Type: Flat
Piston Material: 2618
Piston Pin Length: 2.930
Piston Pin Material: 5115
Piston Pin Outside Diameter: 0.990
Piston Pin Wall Thickness: 0.180
Piston Volume: -7
Product Market: Domestic
Prop 65 (C, R or CR): CR
Prop 65 Yes/No: Yes
Ringset Included: No
Second Compression Ring Thickness: 0.044
Top Compression Ring Thickness: 0.0435
Extened Information:
Emissions : Electronically Announced
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
