JE, Chevrolet, 4.610 in. Bore, Single

SKU: BHXG-194910S

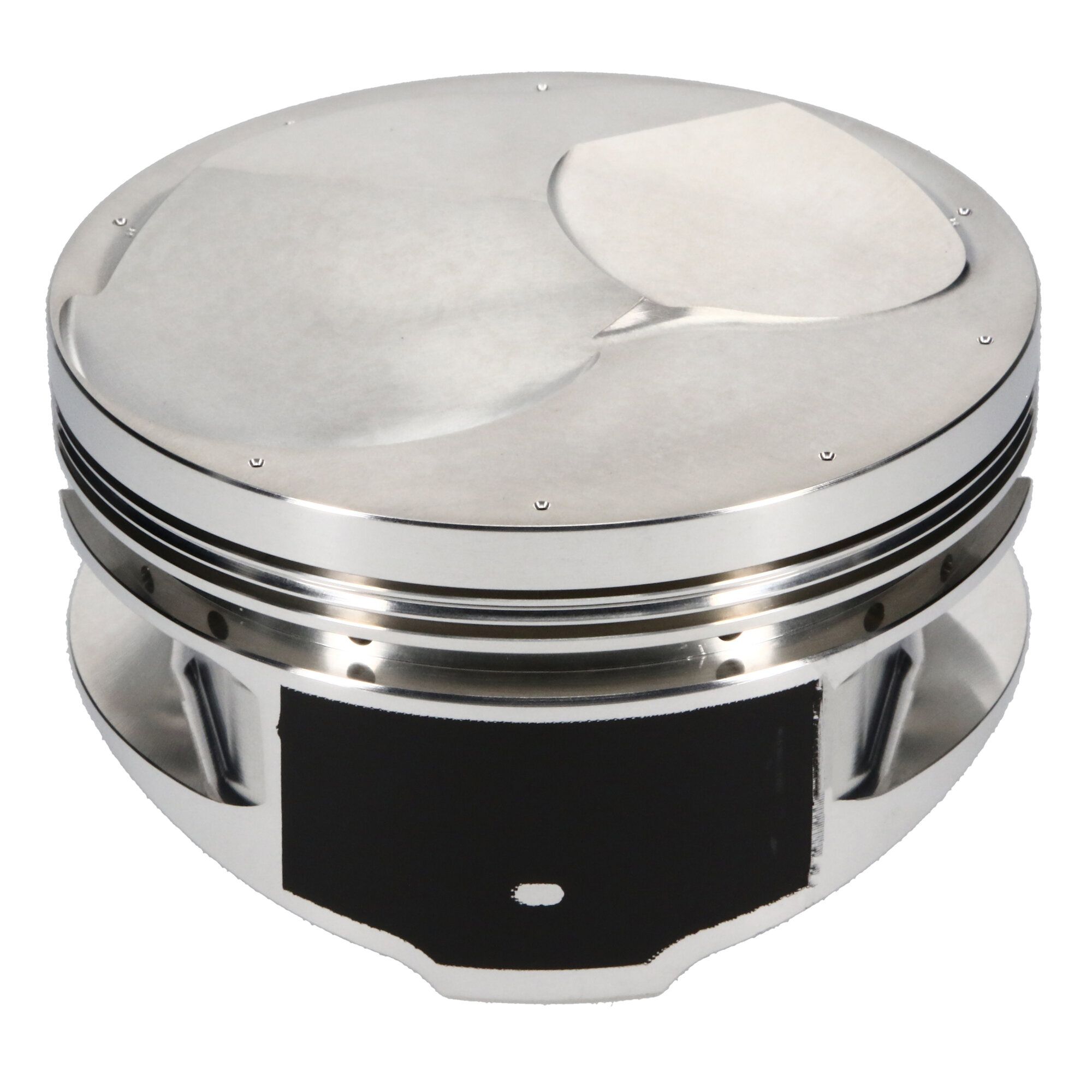

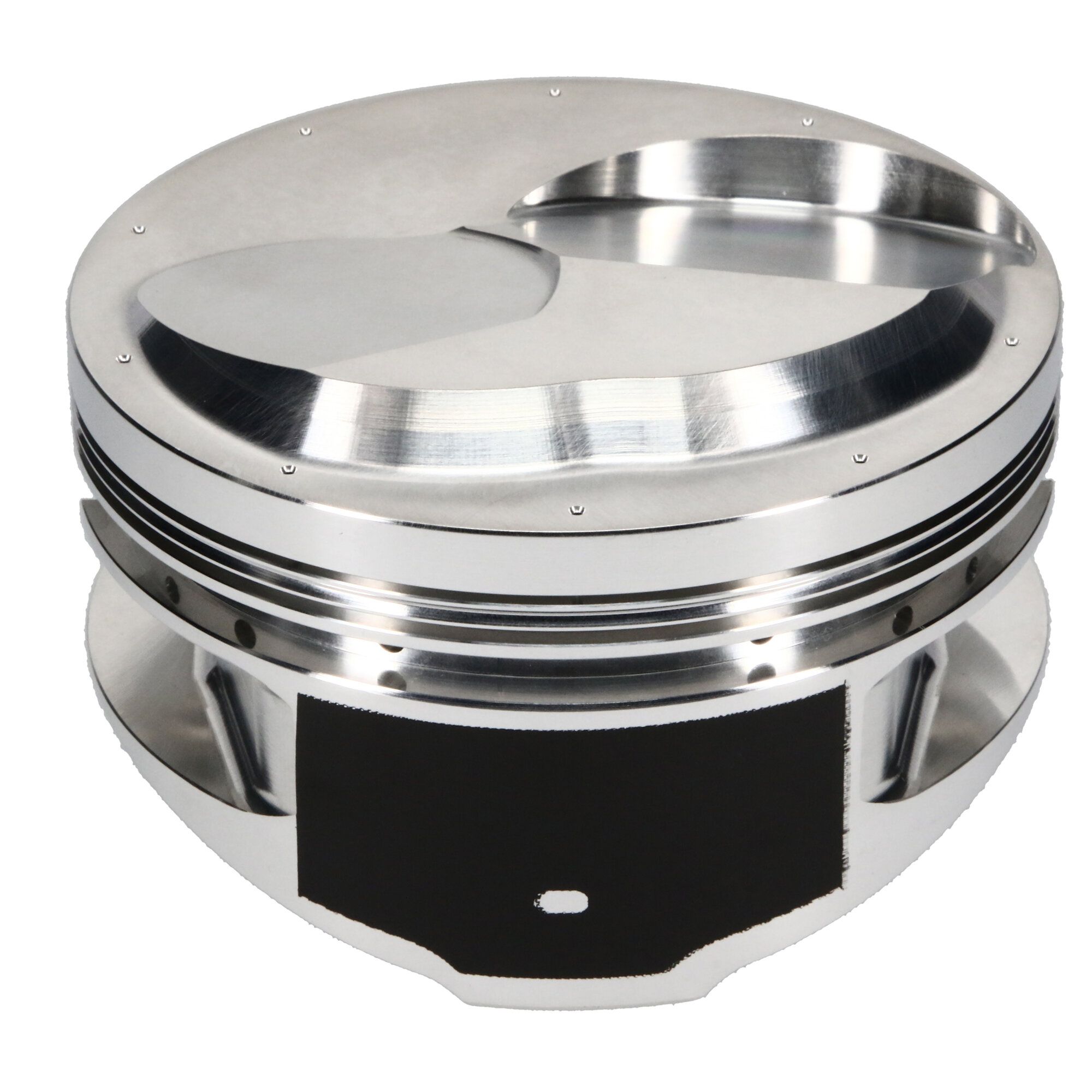

JE, Chevrolet, Big Block Chevrolet, 4.610 in. Bore, 1.280 CD, Dome, Single Piston

JE Pistons is the leader in forged racing pistons. With 70-plus years of experience, in-house forging, and industry-leading technology, JE Pistons are designed to perform at the top levels of all forms of motorsports.

Additional Attributes:

GTIN: 00193564196972
Add-On: JG86L8-4610-5
Add-On: 990-2930-18-51S
Add-On: 990-042-CS
Bore Diameter: 4.610
Compression Height: 1.280
Cylinder Head: BIG CHIEF 18 DEG
Forging Type: Round
Industry: Automotive
Oil Ring Thickness: 0.218
Out of Stock Message: Call for Availability
Piston Avg Wt: 675
Piston Head Type: Dome
Piston Material: 2618
Piston Pin Length: 2.930
Piston Pin Material: 5115
Piston Pin Outside Diameter: 0.990
Piston Pin Wall Thickness: 0.180
Piston Volume: 13
Product Market: Domestic
Prop 65 (C, R or CR): CR
Prop 65 Yes/No: Yes
Ringset Included: No
Second Compression Ring Thickness: 0.064
Top Compression Ring Thickness: 0.0435

Extened Information:

Emissions : Electronically Announced
Life Cycle Status: Available To Order


Quantity of Each: 1
Package UOM: EA
