JE, Ford, 3.552 in. Bore, Left

SKU: BHXG-314692L

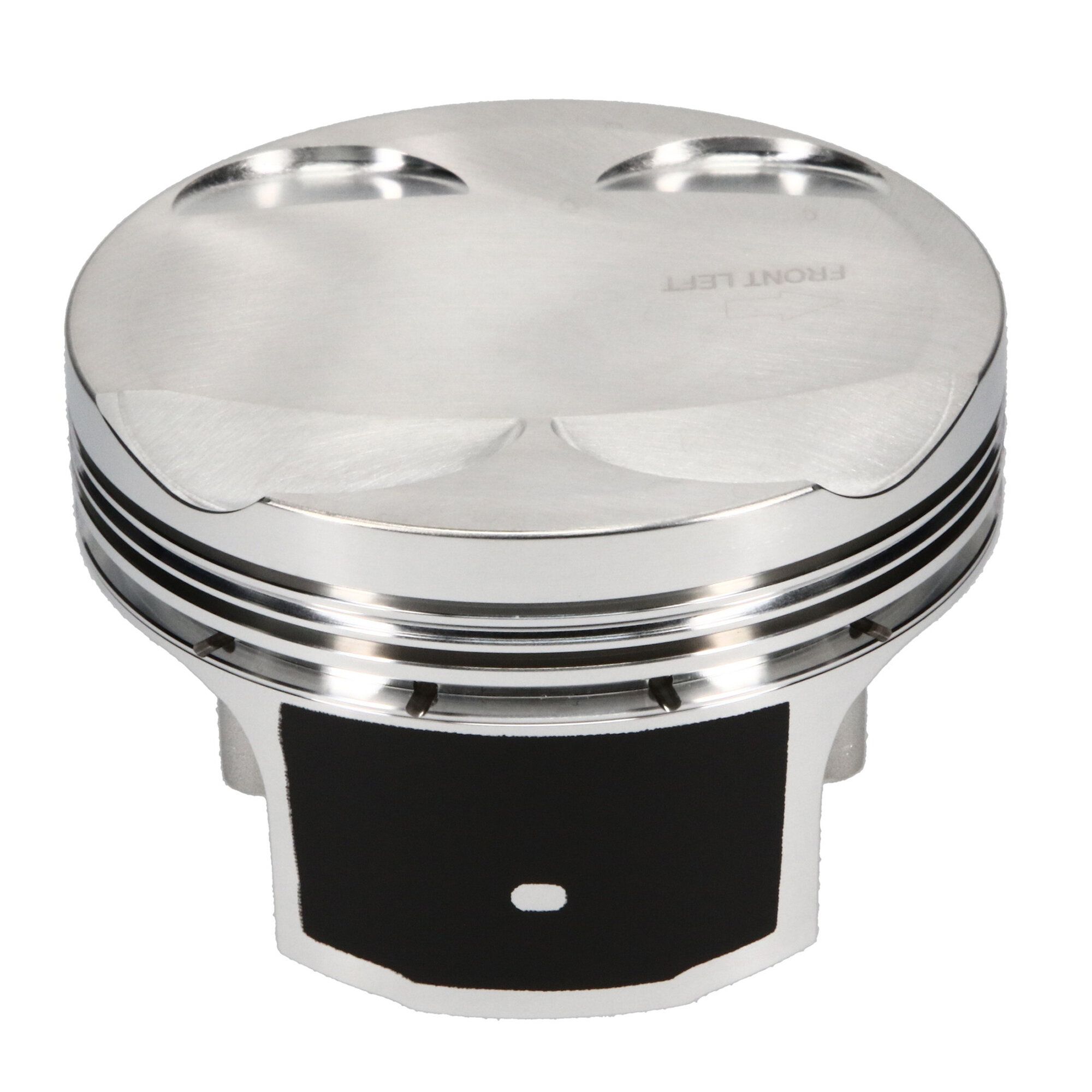

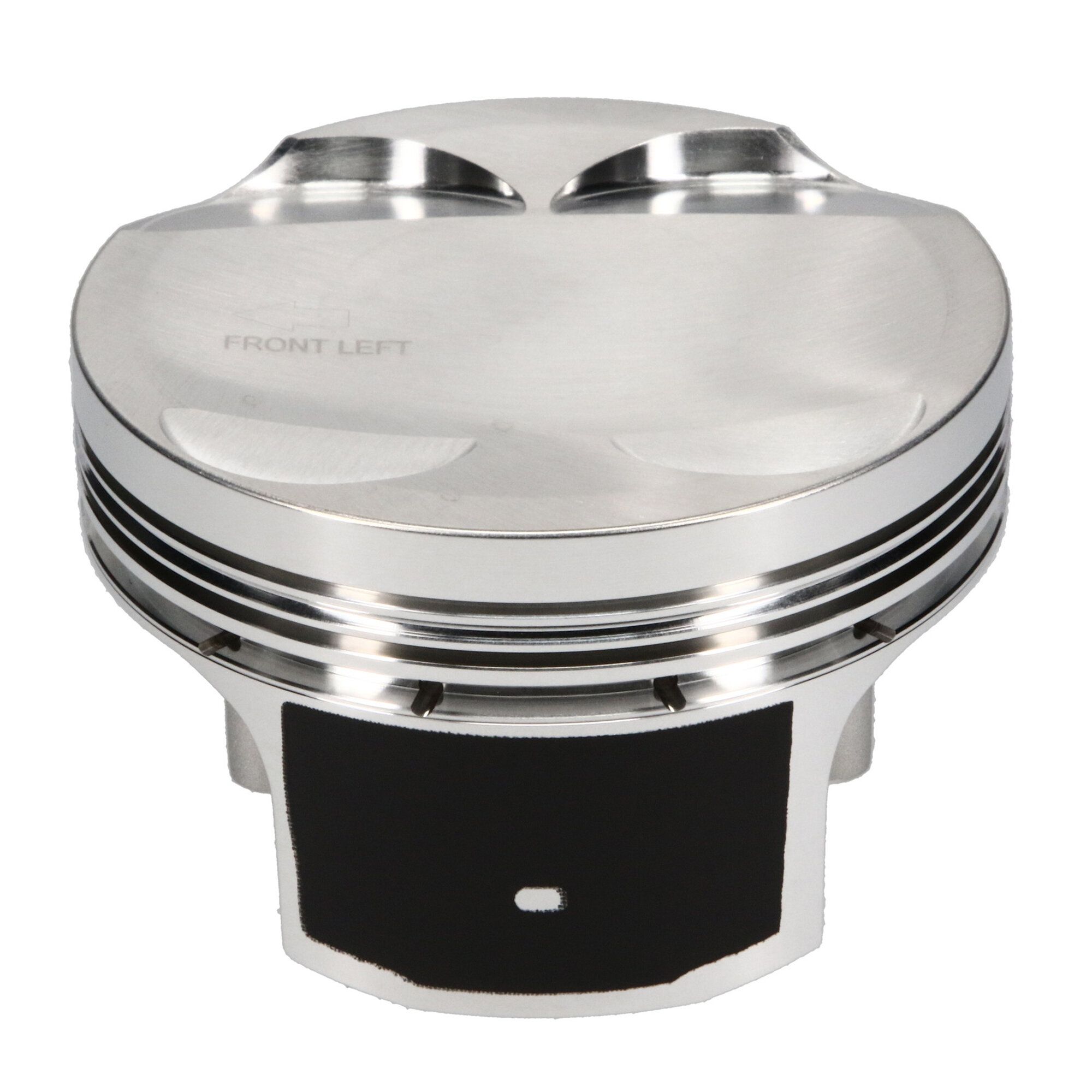

JE, Ford, Modular Ford, 3.552 in. Bore, 1.320 CD, Inverted Dome/Dish, Left Piston

JE Pistons Modular Ford piston line utilizes a dedicated Forged Side Relief (FSR) forging specifically designed for high-horsepower engines. Lightweight and extremely durable, these pistons are machined for modern 1.0mm, 1.2mm, 2.8mm and 1.2mm, 1.5mm, 3.0mm rings.

Additional Attributes:

GTIN: 00193564195364
Add-On: JG3208-3551-0
Add-On: 866-2250-15-51C
Add-On: 866-063-MW
Bore Diameter: 3.552
Compression Height: 1.320
Cylinder Head: MODULAR 4.6 4V
Forging Type: FSR
Industry: Automotive
Make: FORD
Oil Ring Thickness: 0.119
Out of Stock Message: Call for Availability
Piston Avg Wt: 346
Piston Head Type: Dish
Piston Material: 2618
Piston Pin Length: 2.250
Piston Pin Material: 5115
Piston Pin Outside Diameter: 0.866
Piston Pin Wall Thickness: 0.150
Piston Volume: -17.1
Product Market: Domestic
Prop 65 (C, R or CR): CR
Prop 65 Yes/No: Yes
Ringset Included: No
Second Compression Ring Thickness: 0.06
Top Compression Ring Thickness: 0.048

Extened Information:

Life Cycle Status: Available To Order
Emissions : Electronically Announced


Quantity of Each: 1
Package UOM: EA
