JE, Ford, 3.622 in. Bore, Left

$127.61
SKU: BHXG-314571L

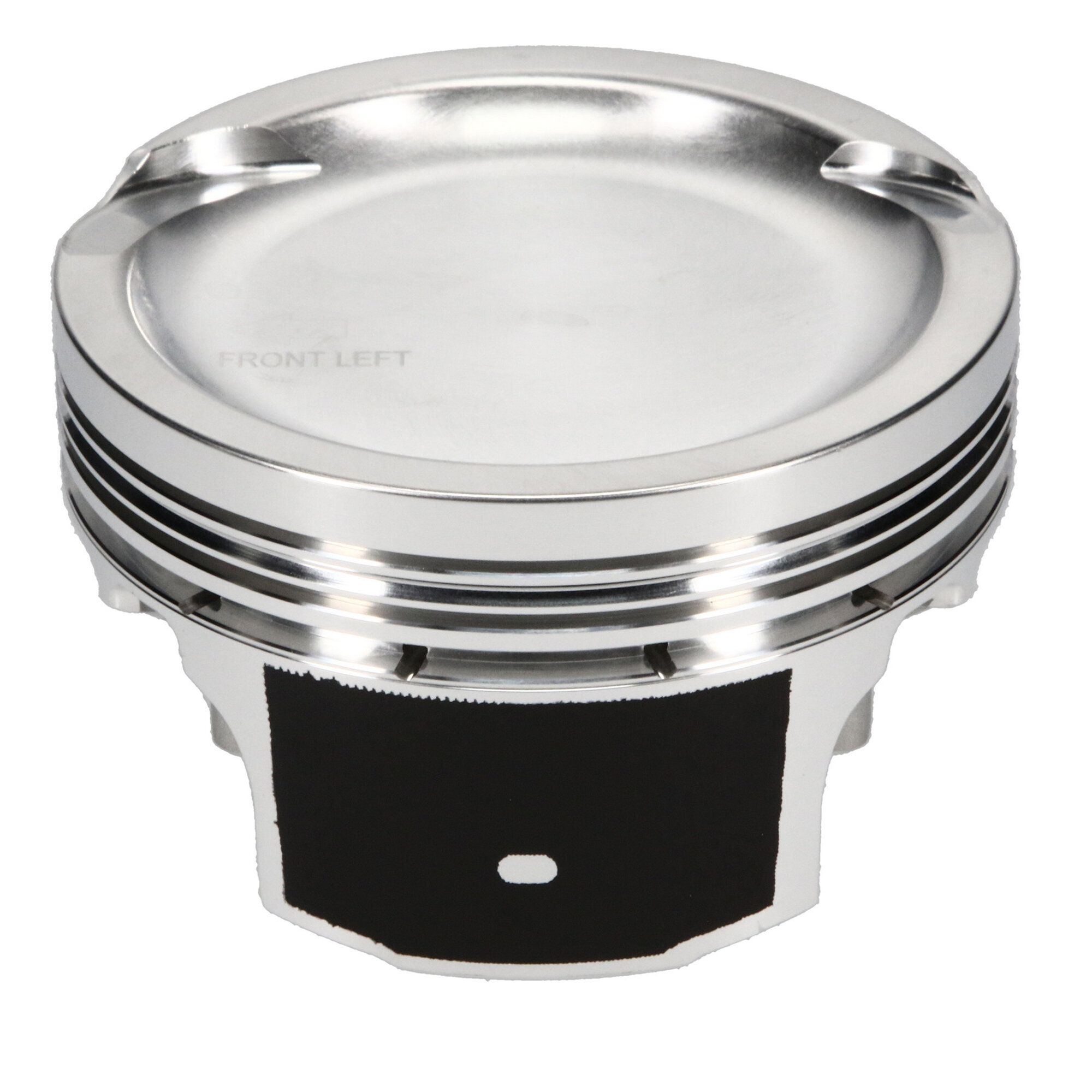

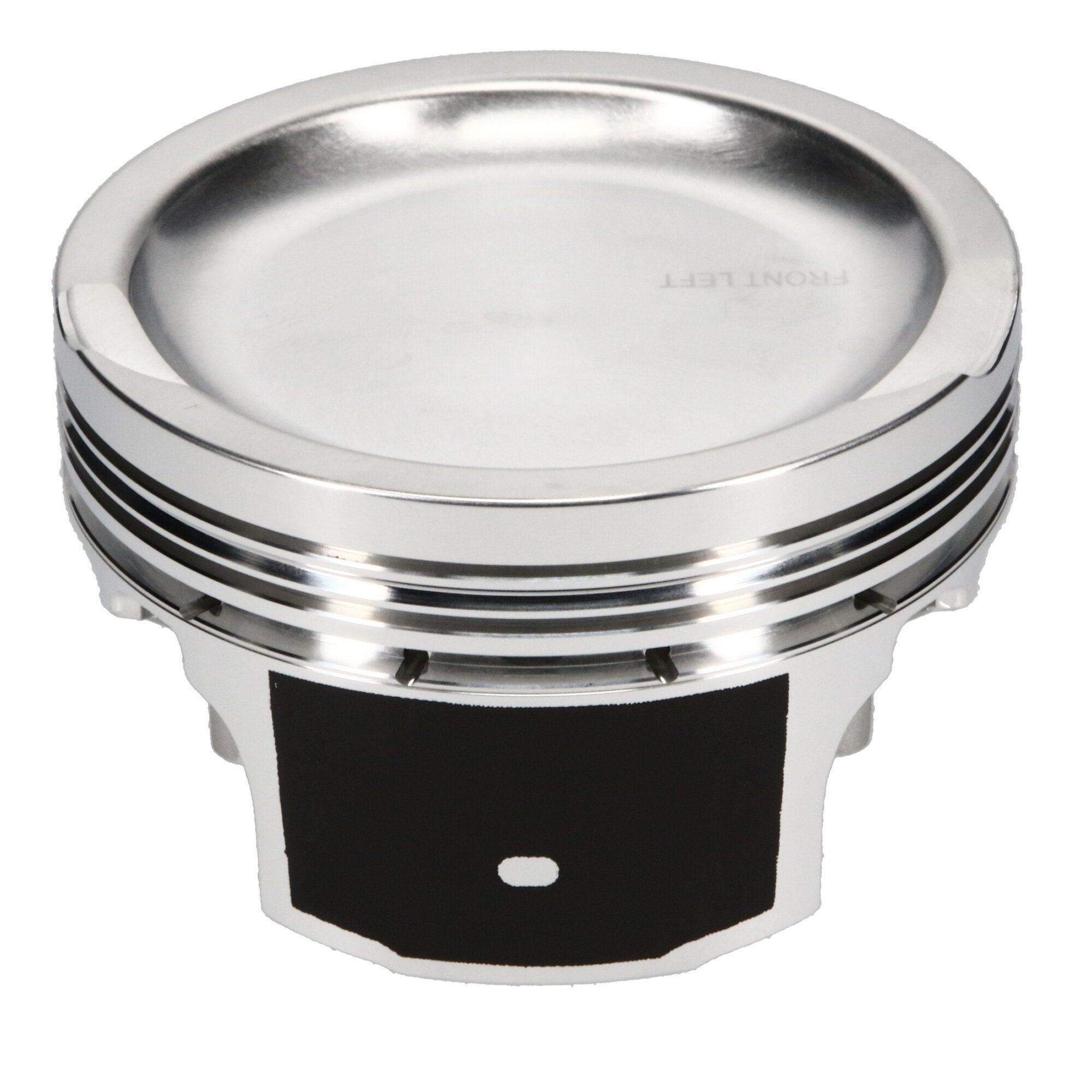

JE, Ford, Modular Ford, 3.622 in. Bore, 1.220 CD, Inverted Dome/Dish, Left Piston

JE Pistons Modular Ford piston line utilizes a dedicated Forged Side Relief (FSR) forging specifically designed for high-horsepower engines. Lightweight and extremely durable, these pistons are machined for modern 1.0mm, 1.2mm, 2.8mm and 1.2mm, 1.5mm, 3.0mm rings.

Additional Attributes:

GTIN: 00193564189073
Add-On: JG1008-3622
Add-On: 866-2250-15-51C
Add-On: 866-063-MW
Bore Diameter: 3.622
Compression Height: 1.220
Cylinder Head: MODULAR 4.6 2V
Engine: MODULAR FORD
Forging Type: FSR
Industry: Automotive
Make: FORD
Oil Ring Thickness: 0.111
Out of Stock Message: Call for Availability
Piston Avg Wt: 345
Piston Head Type: Dish
Piston Material: 2618
Piston Pin Length: 2.250
Piston Pin Material: 5115
Piston Pin Outside Diameter: 0.866
Piston Pin Wall Thickness: 0.150
Piston Volume: -9.3
Product Market: Domestic
Prop 65 (C, R or CR): CR
Prop 65 Yes/No: Yes
Ringset Included: No
Second Compression Ring Thickness: 0.048
Top Compression Ring Thickness: 0.04

Extened Information:

Emissions : Electronically Announced
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
