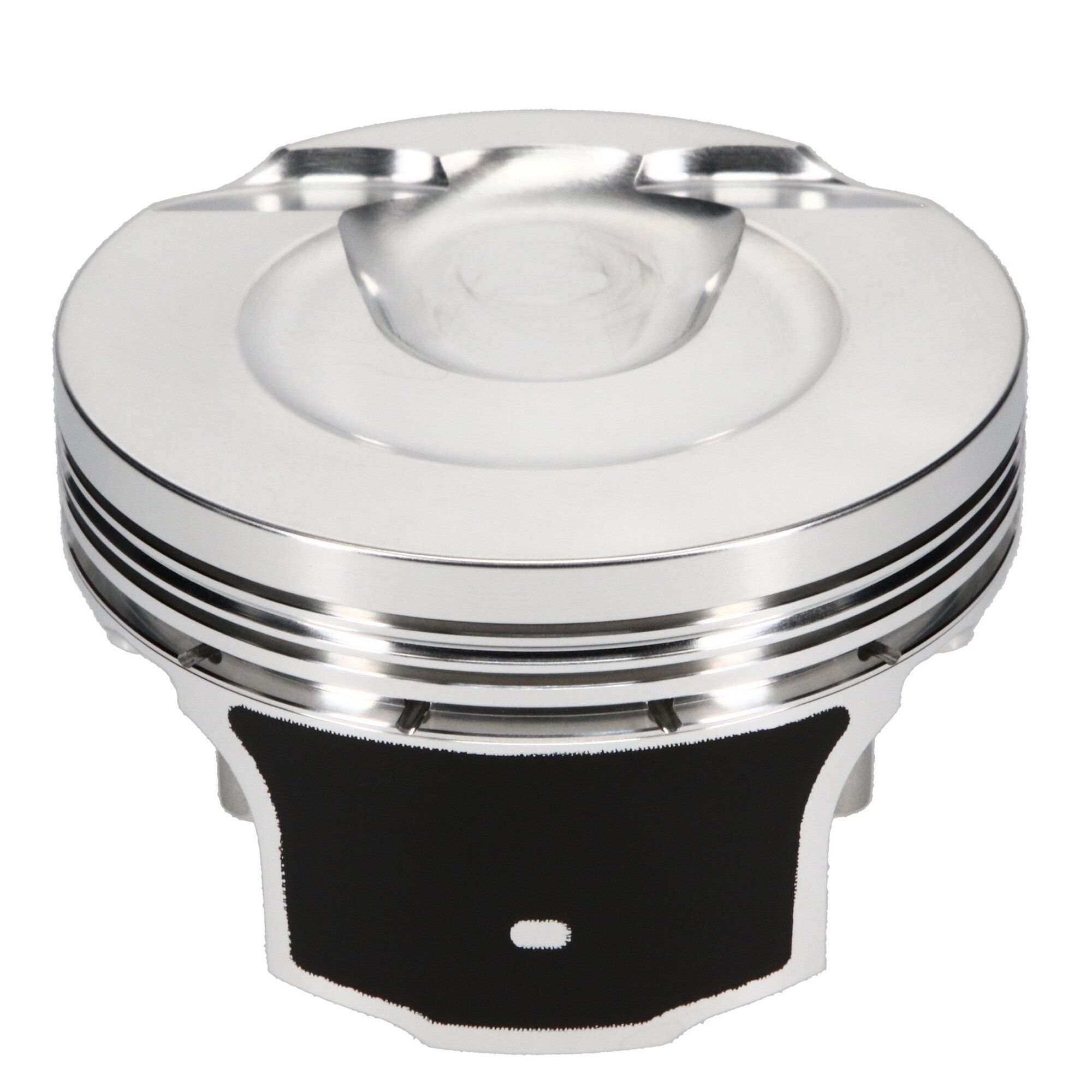

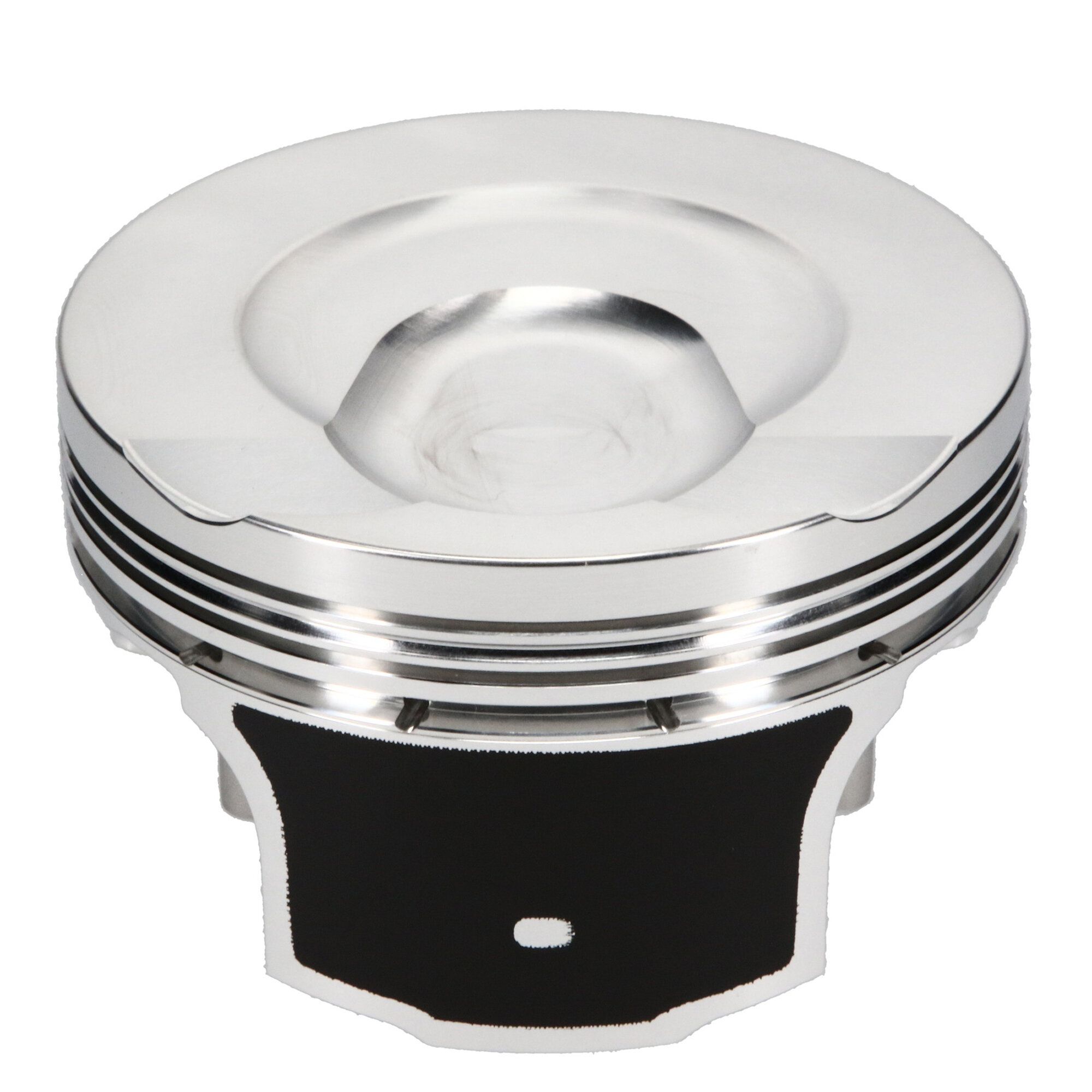

JE, Ford, 3.5L EcoBoost Gen 1 V6, 3.642 in. Bore, 10.00:1, Dome, Right Piston
JE Pistons is the leader in forged racing pistons. With 70-plus years of experience, in-house forging, and industry-leading technology, JE Pistons are designed to perform at the top levels of all forms of motorsports.
Additional Attributes:
GTIN: 00193564011428
Forging Type: FSR
Industry: Automotive
Make: FORD
Oil Ring Thickness: 0.111
Out of Stock Message: Call for Availability
Piston Avg Wt: 398
Piston Head Type: Dome
Piston Material: 2618
Piston Pin Length: 2.250
Piston Pin Material: 5115
Piston Pin Outside Diameter: 0.905
Piston Pin Wall Thickness: 0.180
Piston Volume: -0.5
Product Market: Sport Compact
Prop 65 (C, R or CR): CR
Prop 65 Yes/No: Yes
Ringset Included: Yes
Second Compression Ring Thickness: 0.048
Top Compression Ring Thickness: 0.04
Add-On: JG1001-3642
Add-On: 905-2250-18-51C
Add-On: 905-073-MW
Bore Diameter: 92.50
Compression Height: 1.240
Cylinder Head: ECOBOOST V6
Engine: 3.5L ECOBOOST GEN 1 V6
Extened Information:
Emissions : Electronically Announced
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
