JE, Ford, 4.030 in. Bore, Single

$141.67
SKU: BHXG-170855S

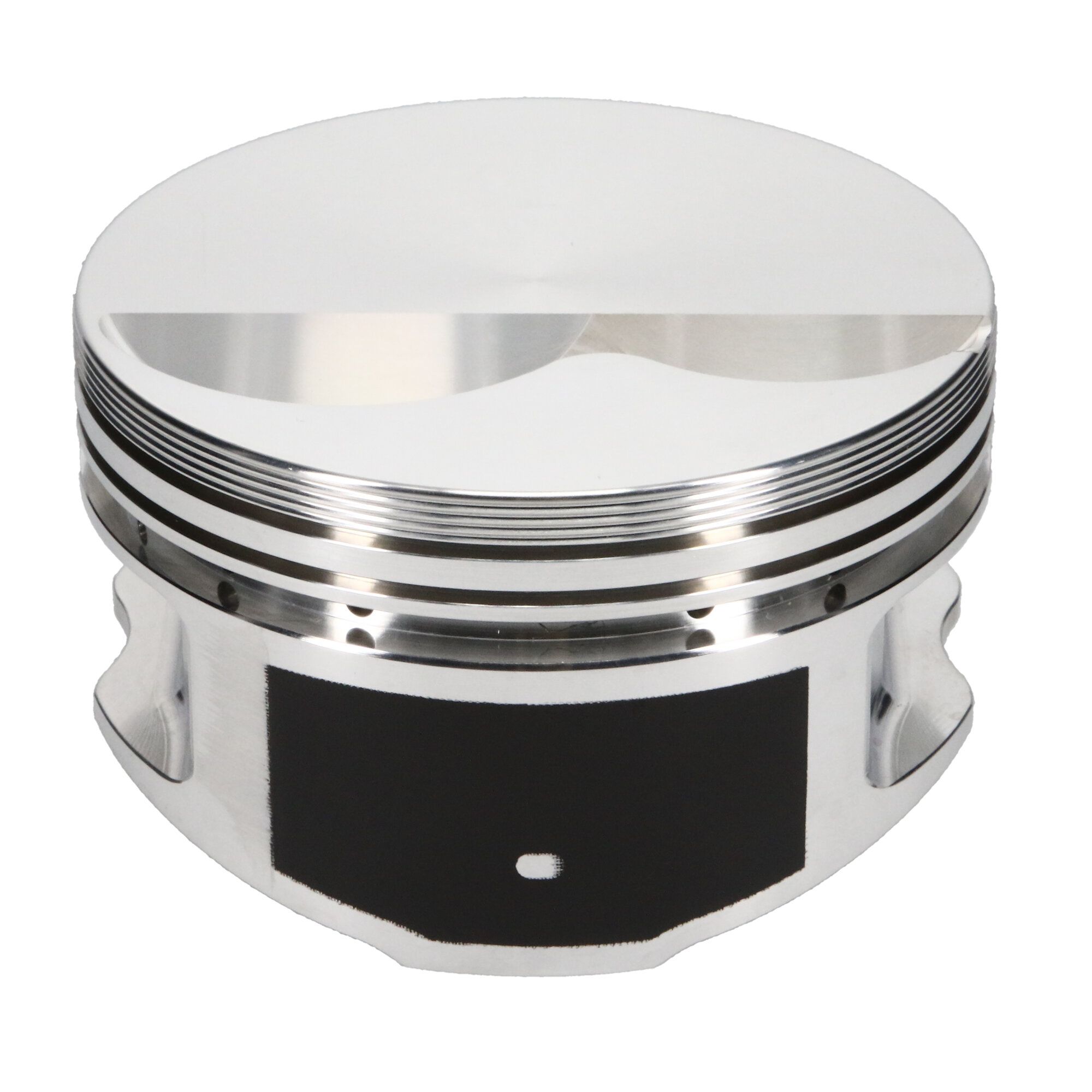

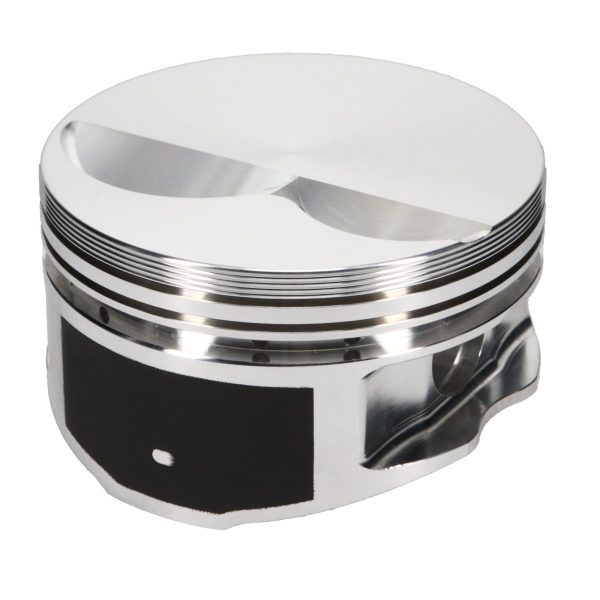

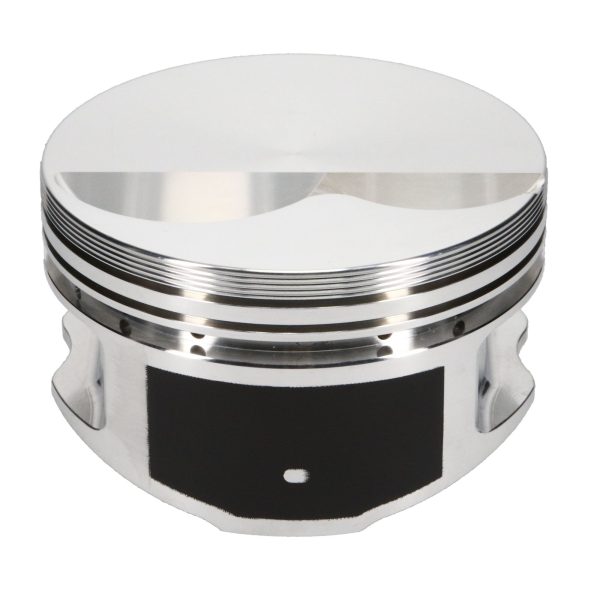

JE, Ford, Small Block Ford, 4.030 in. Bore, 1.175 CD, Flat Top, Single Piston

JE Pistons is the leader in forged racing pistons. With 70-plus years of experience, in-house forging, and industry-leading technology, JE Pistons are designed to perform at the top levels of all forms of motorsports.

Additional Attributes:

GTIN: 00193564186294
Industry: Automotive
Make: FORD
Oil Ring Thickness: 0.218
Out of Stock Message: Call for Availability
Piston Avg Wt: 451
Piston Head Type: Flat
Piston Material: 2618
Piston Pin Length: 2.750
Piston Pin Material: 5115
Piston Pin Outside Diameter: 0.927
Piston Pin Wall Thickness: 0.150
Piston Volume: -5
Product Market: Domestic
Prop 65 (C, R or CR): CR
Prop 65 Yes/No: Yes
Ringset Included: No
Second Compression Ring Thickness: 0.064
Top Compression Ring Thickness: 0.064
Add-On: J10008-4030-5
Add-On: 927-2750-15-51S
Add-On: 927-042-CS
Bore Diameter: 4.030
Compression Height: 1.175
Cylinder Head: SMALL BLOCK FORD 20 DEG
Engine: SMALL BLOCK FORD
Forging Type: Round

Extened Information:

Emissions : Electronically Announced
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
