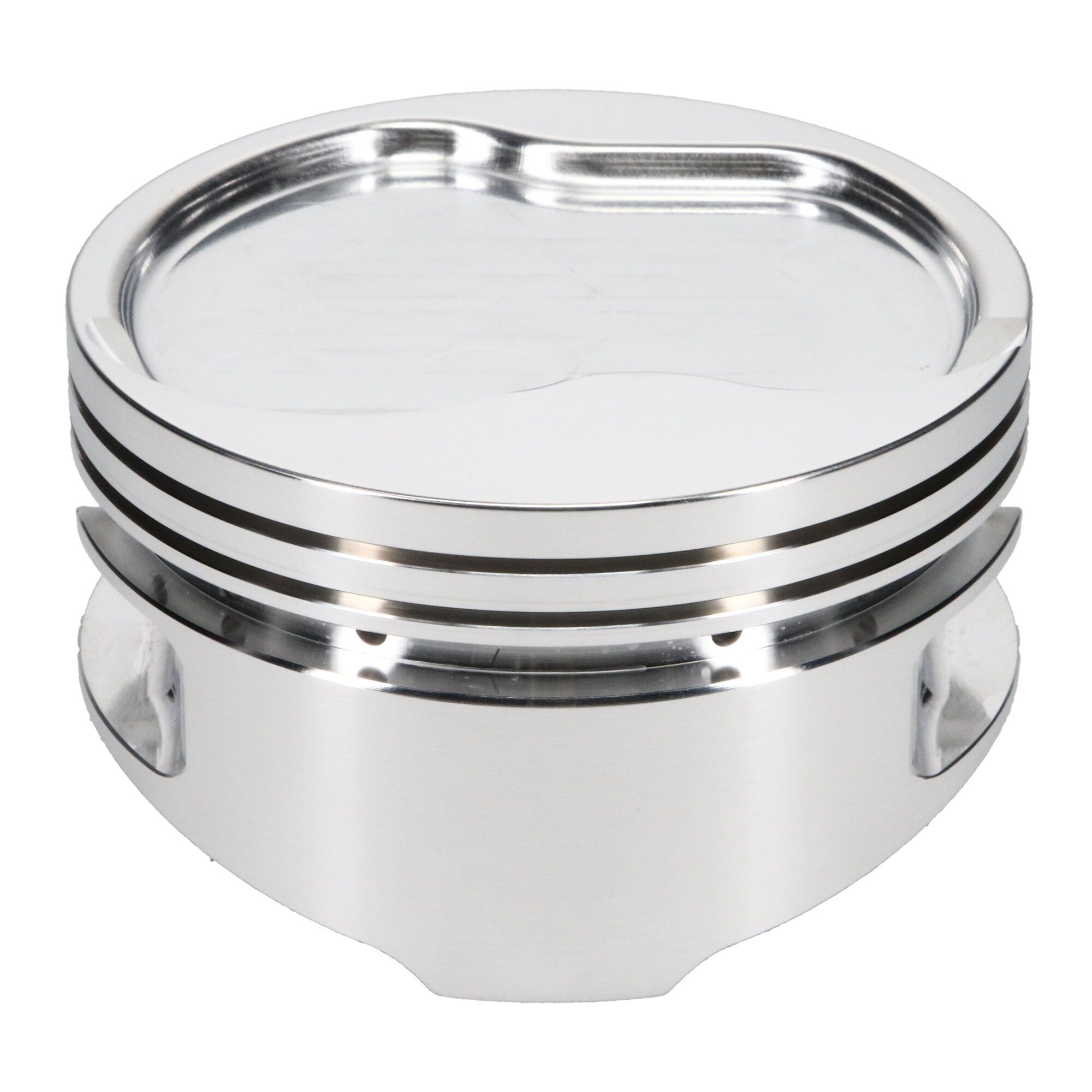

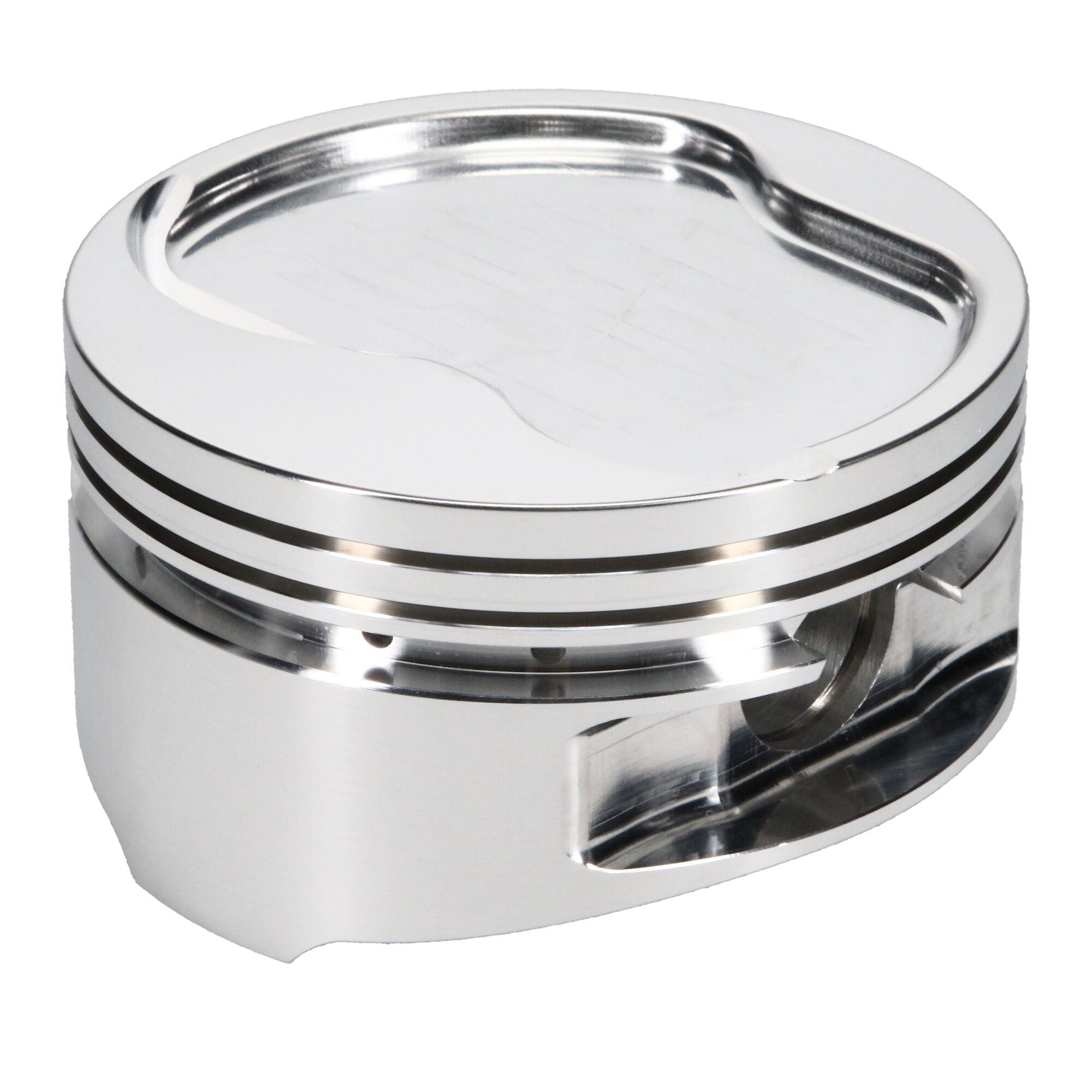

JE, Ford, Small Block Ford, 4.040 in. Bore, 1.175 CD, Inverted Dome/Dish, Single Piston
$152.49
JE Pistons is the leader in forged racing pistons. With 70-plus years of experience, in-house forging, and industry-leading technology, JE Pistons are designed to perform at the top levels of all forms of motorsports.
Additional Attributes:
GTIN: 00193564186041
Add-On: J100F8-4040-5
Add-On: 927-2750-15-51S
Add-On: 927-042-CS
Bore Diameter: 4.040
Compression Height: 1.175
Cylinder Head: SMALL BLOCK FORD 20 DEG
Engine: SMALL BLOCK FORD
Forging Type: Round
Prop 65 Yes/No: Yes
Ringset Included: No
Second Compression Ring Thickness: 0.064
Top Compression Ring Thickness: 0.064
Industry: Automotive
Make: FORD
Oil Ring Thickness: 0.218
Out of Stock Message: Call for Availability
Piston Avg Wt: 446
Piston Head Type: Dish
Piston Material: 2618
Piston Pin Length: 2.750
Piston Pin Material: 5115
Piston Pin Outside Diameter: 0.927
Piston Pin Wall Thickness: 0.150
Piston Volume: -26
Product Market: Domestic
Prop 65 (C, R or CR): CR
Extened Information:
Emissions : Electronically Announced
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
