JE, Harley Davidson, 3.875 in. Bore, Right

$228.28
SKU: BHXG-324729R

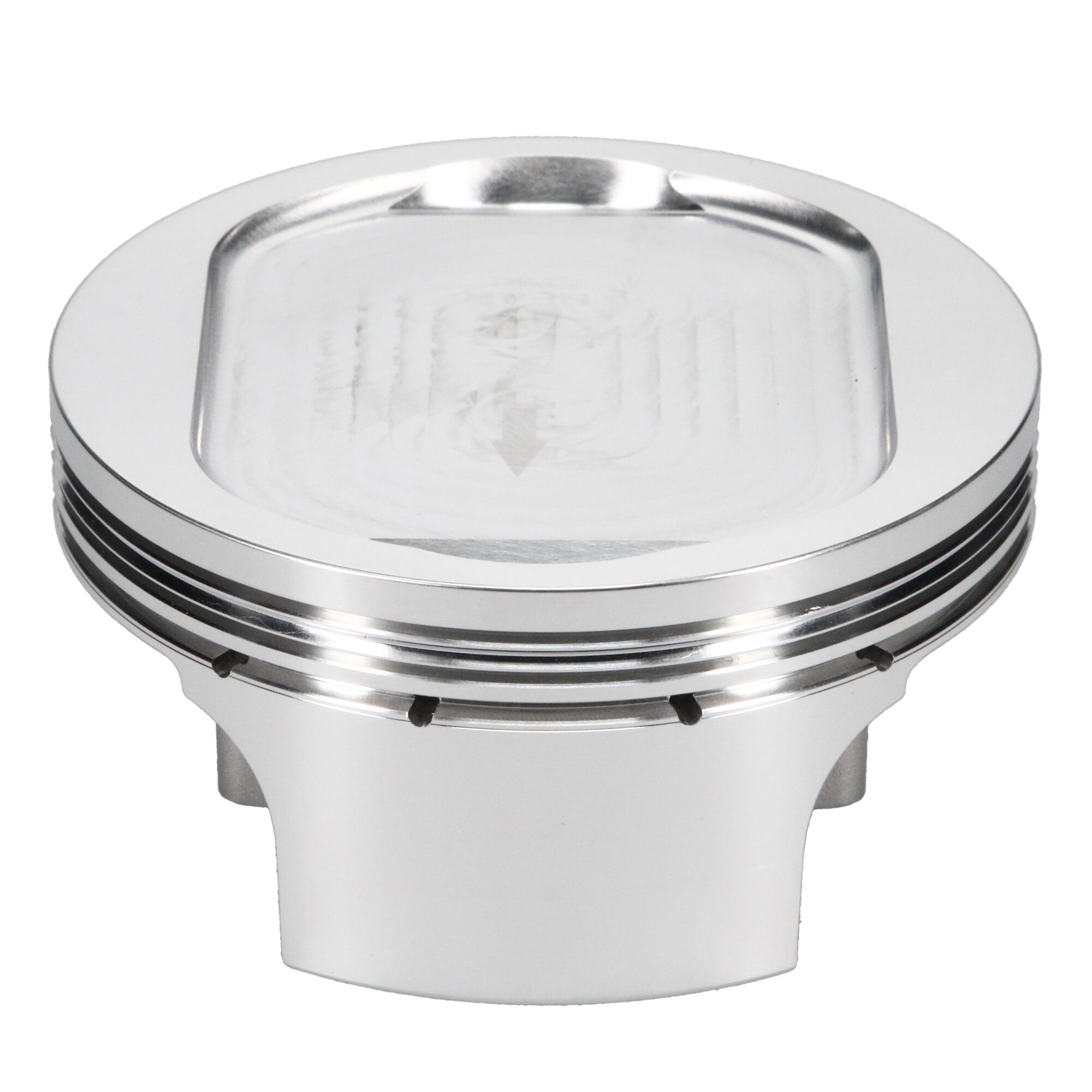

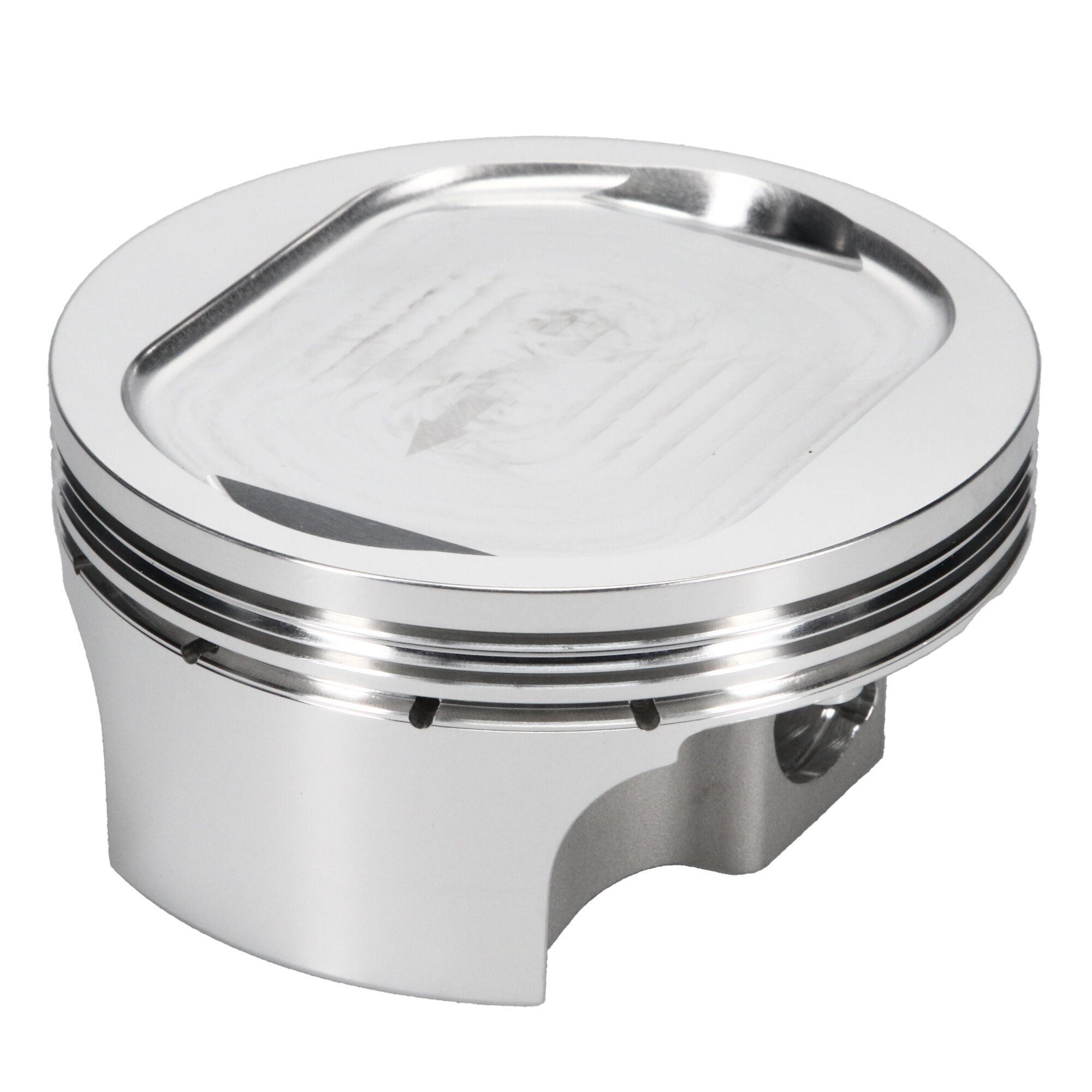

JE, Harley-Davidson, Twin Cam 103, 10.50:1, 3.875 in. Bore, Right Piston

With a history in racing dating back to 1947, JE Pistons is the industry leader in high-performance powersports forged racing pistons. JE proudly engineers, forges, and machines precision racing pistons for a wide range of powersports machines in-house in the USA.

Additional Attributes:

GTIN: 00193564201645
Add-On: 927-2250-15-51C
Add-On: 927-073-MW
Bore Diameter: 98.43
Cylinder Head: 1999-2006 TWIN CAM
Forging Type: FSR
Industry: Powersports
OEM Compression Ratio: 10.50:1
Oil Ring Thickness: 0.0795
Out of Stock Message: Call for Availability
Piston Avg Wt: 359
Piston Head Type: Dome
Piston Material: 2618
Piston Pin Length: 2.250
Piston Pin Material: 5115
Piston Pin Outside Diameter: 0.927
Piston Pin Wall Thickness: 0.150
Piston Volume: 3.3
Product Market: V-Twin
Prop 65 (C, R or CR): CR
Prop 65 Yes/No: Yes
Ringset Included: No
Second Compression Ring Thickness: 0.0478
Top Compression Ring Thickness: 0.0478
Add-On: VM3875

Extened Information:

Emissions : Electronically Announced
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
