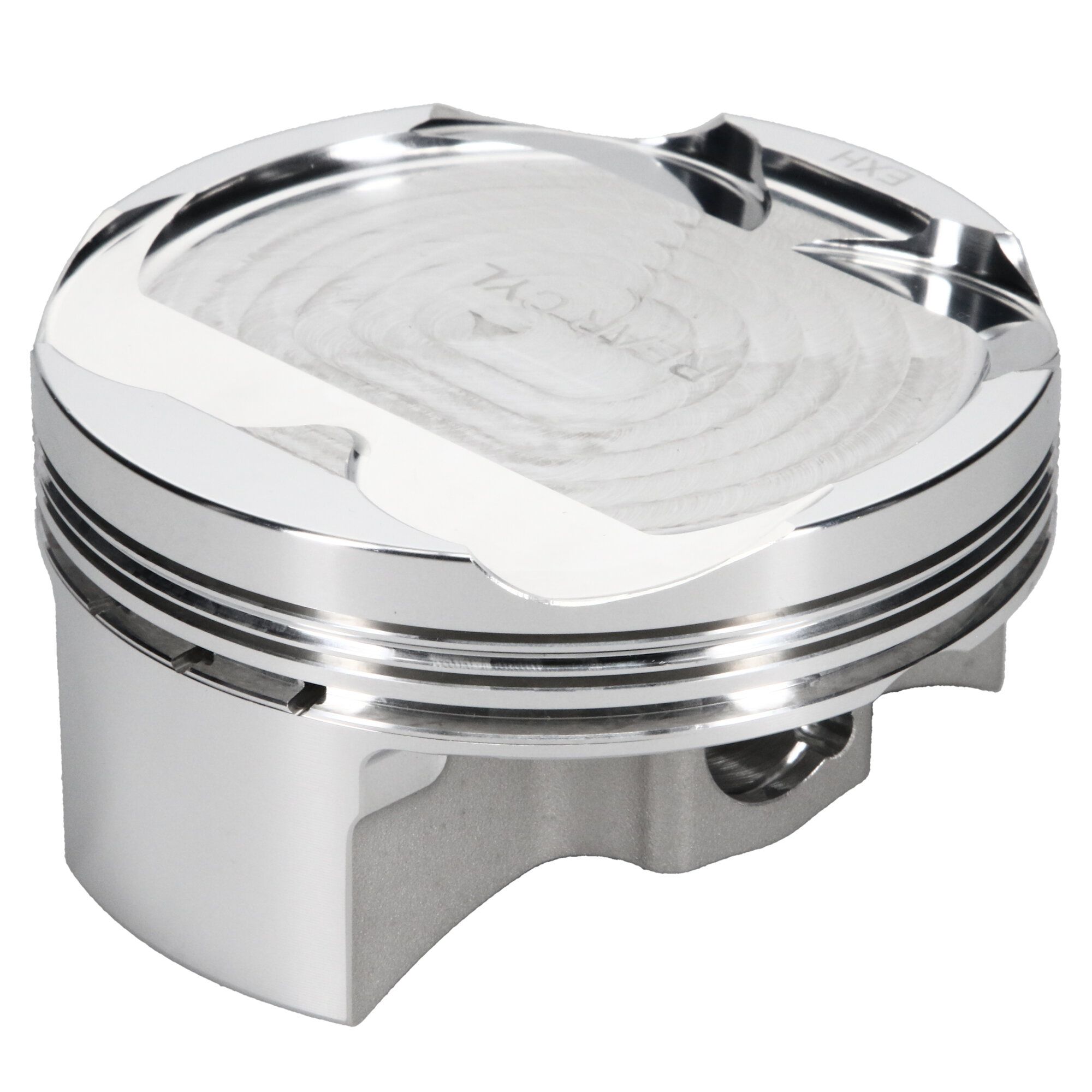

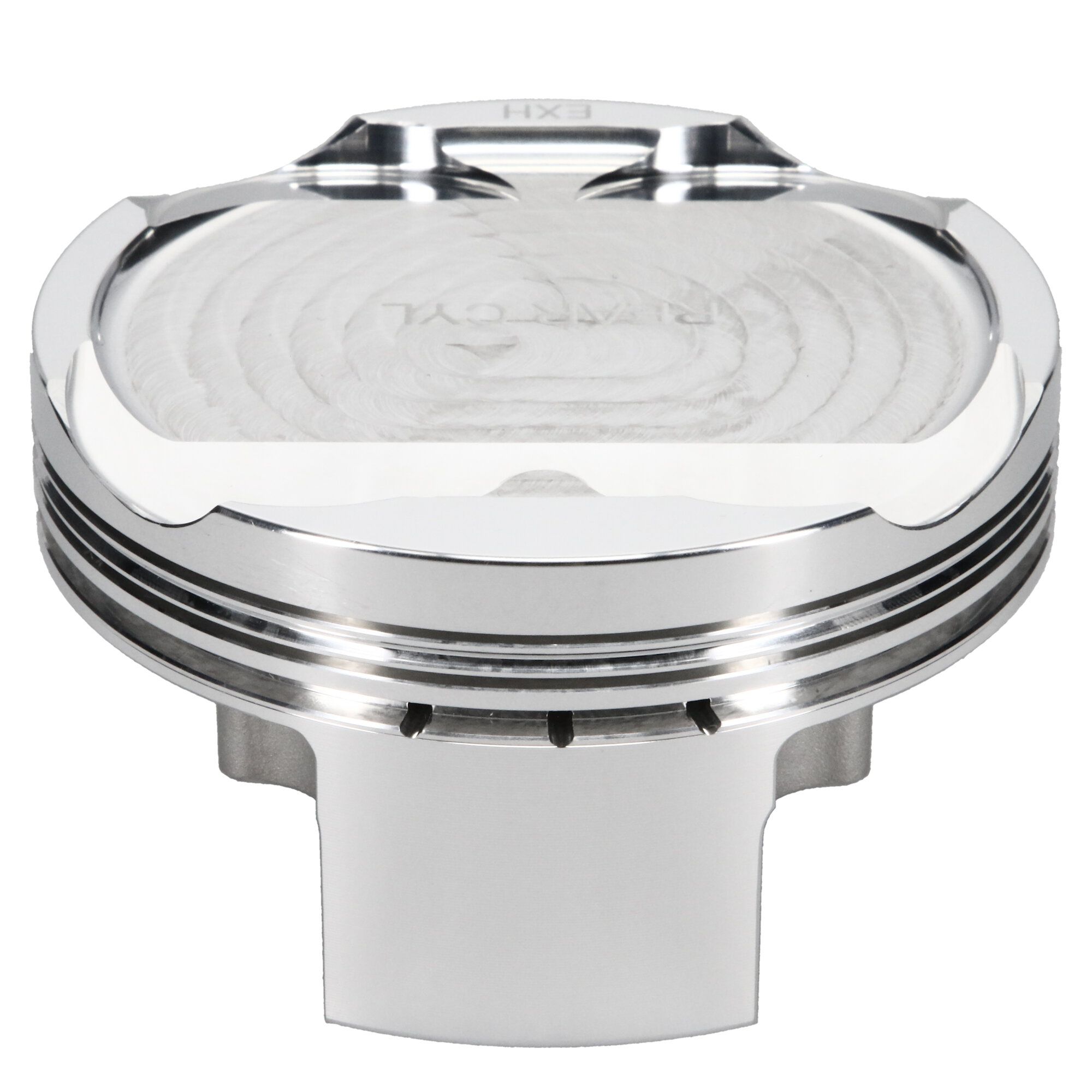

JE, Harley-Davidson, V-Rod, 8.50:1, 3.937 in. Bore, Left Piston
With a history in racing dating back to 1947, JE Pistons is the industry leader in high-performance powersports forged racing pistons. JE proudly engineers, forges, and machines precision racing pistons for a wide range of powersports machines in-house in the USA.
Additional Attributes:
GTIN: 00193564202024
Add-On: JG1001-3937
Add-On: 866-2250-15-51C
Add-On: 866-063-MW
Bore Diameter: 100.00
Cylinder Head: HARLEY V-ROD
Forging Type: FSR
Industry: Powersports
OEM Compression Ratio: 8.50:1
Oil Ring Thickness: 0.111
Out of Stock Message: Call for Availability
Piston Avg Wt: 376
Piston Head Type: Dish
Piston Material: 2618
Piston Pin Length: 2.250
Piston Pin Material: 5115
Piston Pin Outside Diameter: 0.866
Piston Pin Wall Thickness: 0.150
Piston Volume: 30.3
Product Market: V-Twin
Prop 65 (C, R or CR): CR
Prop 65 Yes/No: Yes
Ringset Included: Yes
Second Compression Ring Thickness: 0.048
Top Compression Ring Thickness: 0.04
Extened Information:
Emissions : Electronically Announced
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
