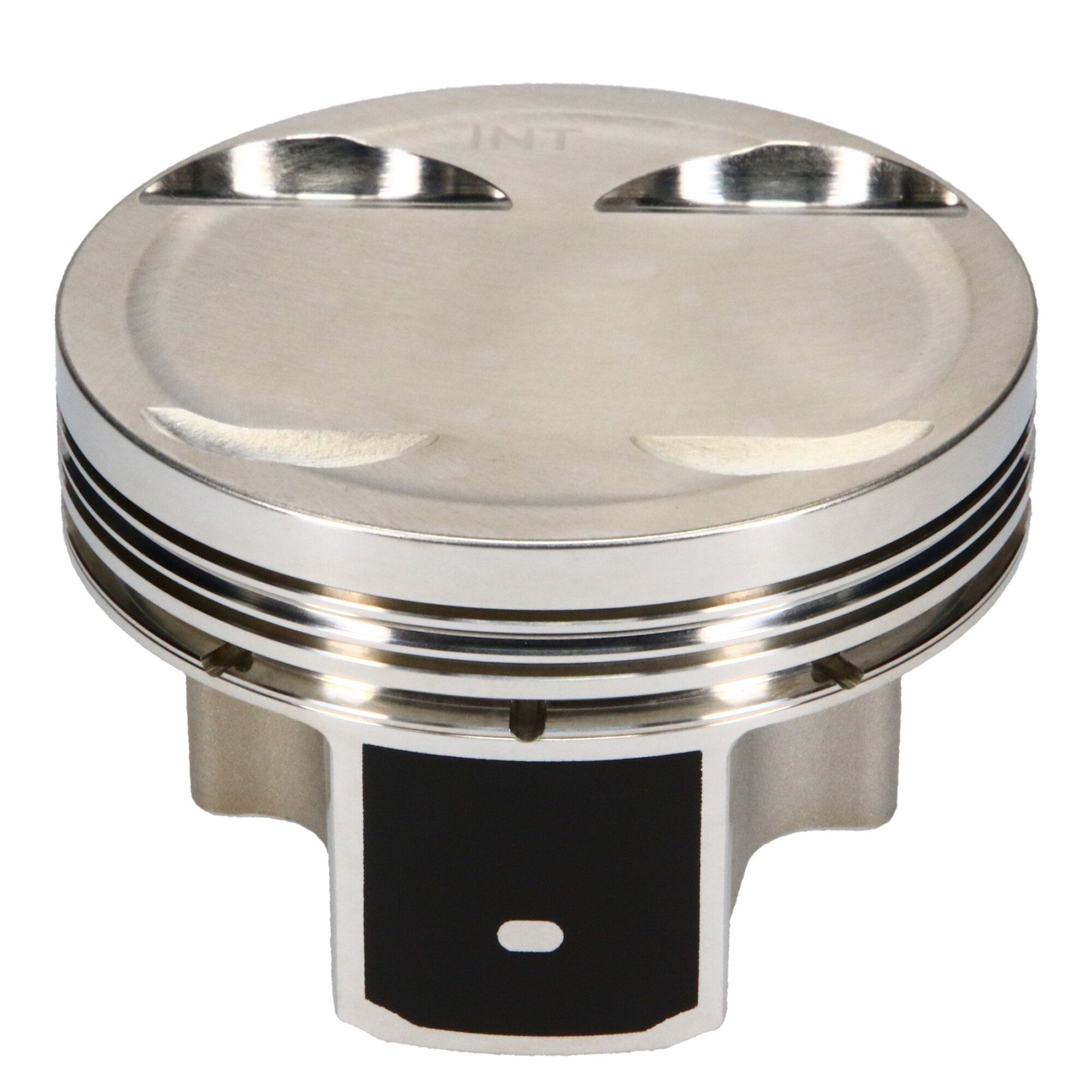

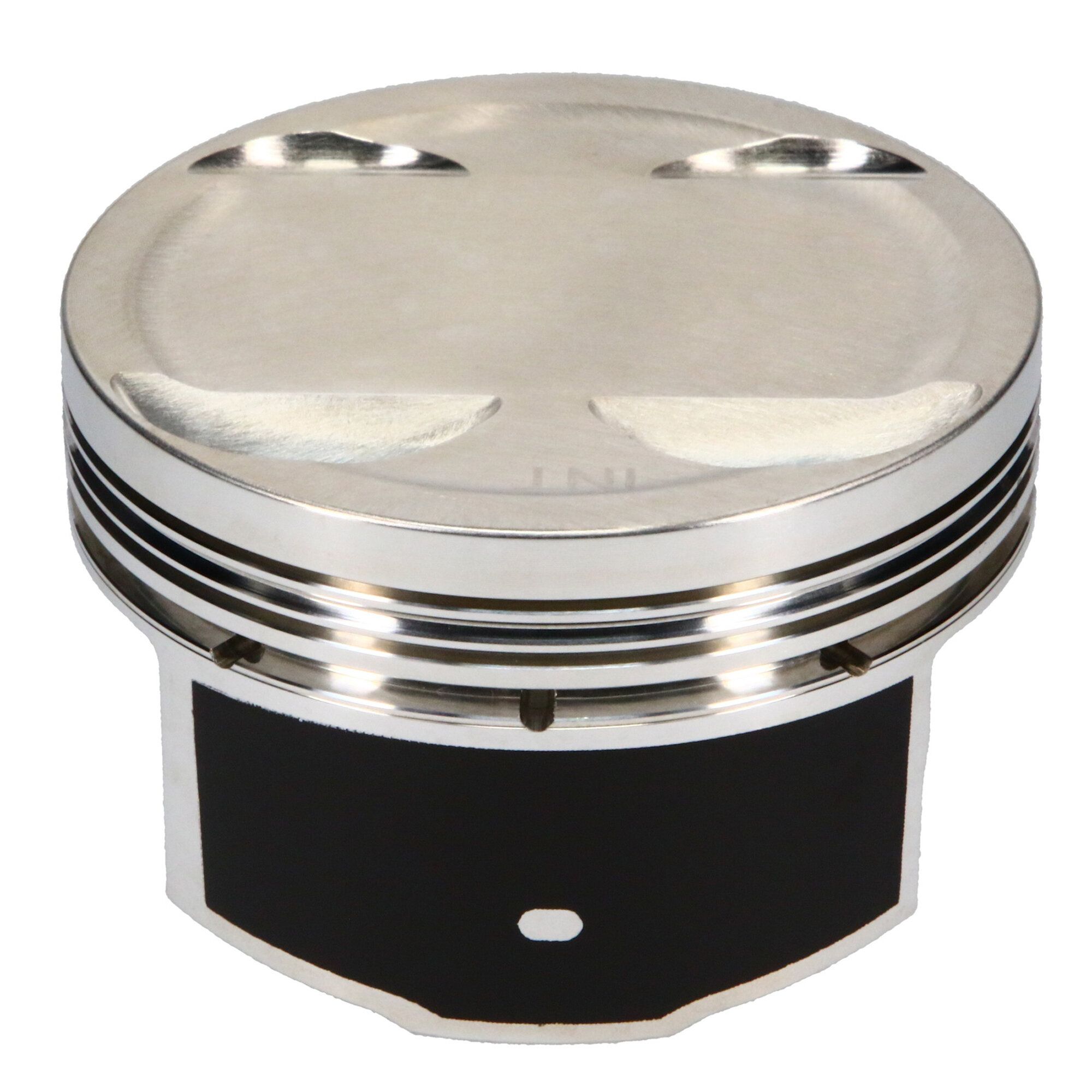

JE, Honda, H Series, 3.445 in. Bore, 9.00:1, Inverted Dome/Dish, Single Piston
$220.05
JE Pistons is the leader in forged racing pistons. With 70-plus years of experience, in-house forging, and industry-leading technology, JE Pistons are designed to perform at the top levels of all forms of motorsports.
Additional Attributes:
GTIN: 00193564013545
Add-On: JC8A04-3445
Add-On: 866-2250-15-51C
Add-On: 866-063-MW
Bore Diameter: 87.50
Compression Height: 1.204
Cylinder Head: 2.3L 4 VALVE
Engine: H SERIES
Forging Type: Round
Industry: Automotive
Make: HONDA
Oil Ring Thickness: 0.111
Out of Stock Message: Call for Availability
Piston Avg Wt: 328
Piston Head Type: Dish
Piston Material: 2618
Piston Pin Length: 2.250
Piston Pin Material: 5115
Piston Pin Outside Diameter: 0.866
Piston Pin Wall Thickness: 0.150
Piston Volume: -11.9
Product Market: Sport Compact
Prop 65 (C, R or CR): CR
Prop 65 Yes/No: Yes
Ringset Included: Yes
Second Compression Ring Thickness: 0.048
Top Compression Ring Thickness: 0.048
Extened Information:
Emissions : Electronically Announced
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
