JE, Kawasaki, 90.00 mm Bore, Left

SKU: BHXG-317230L

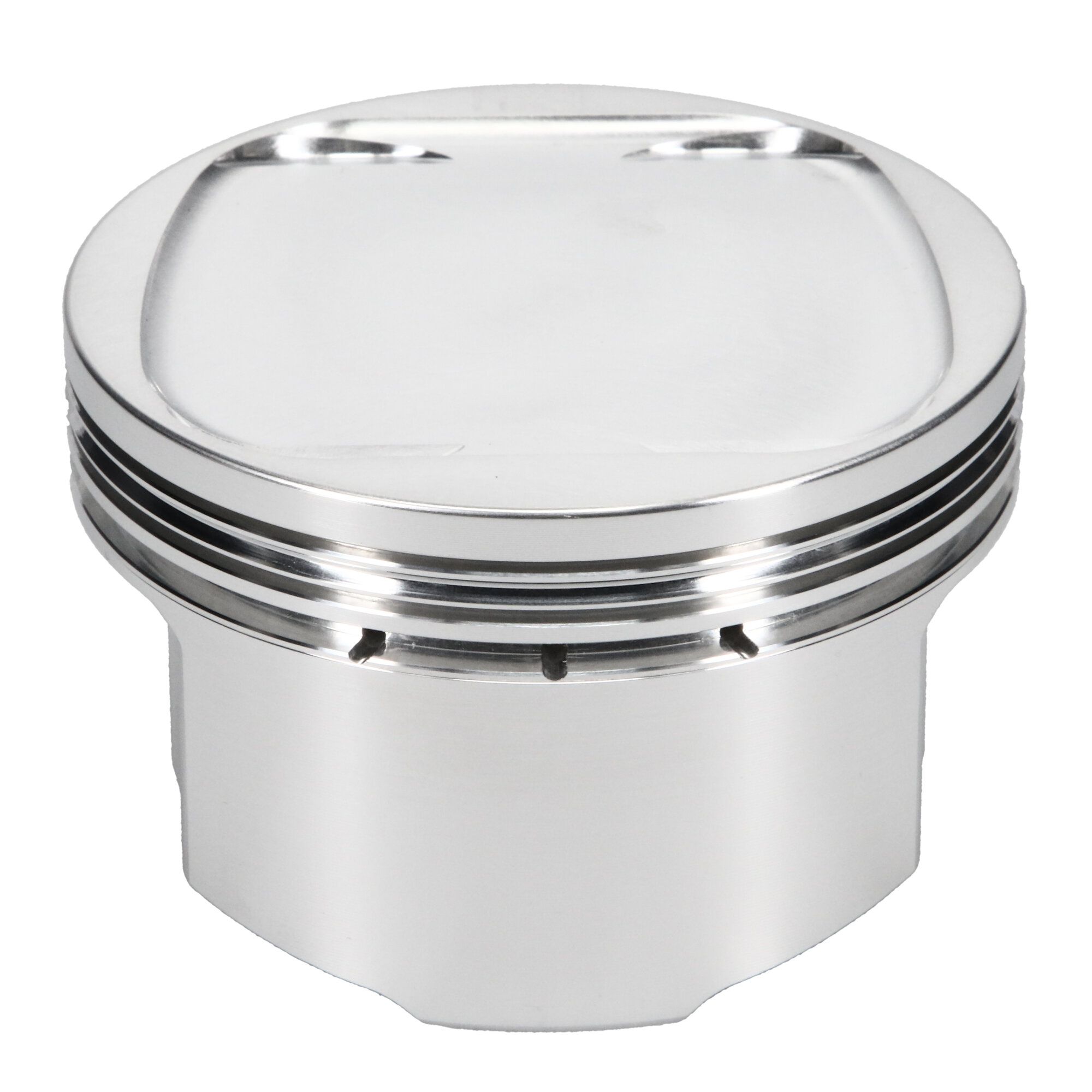

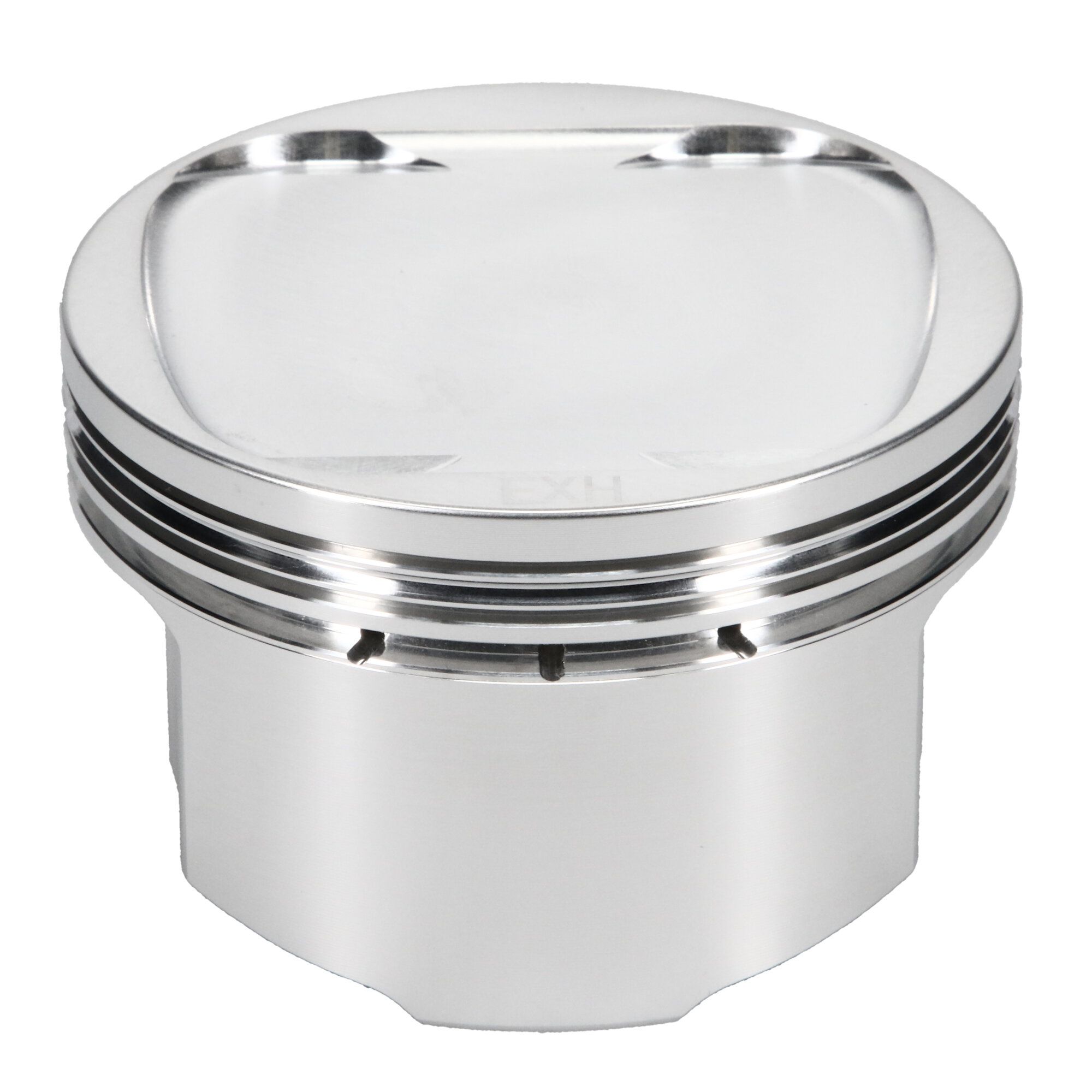

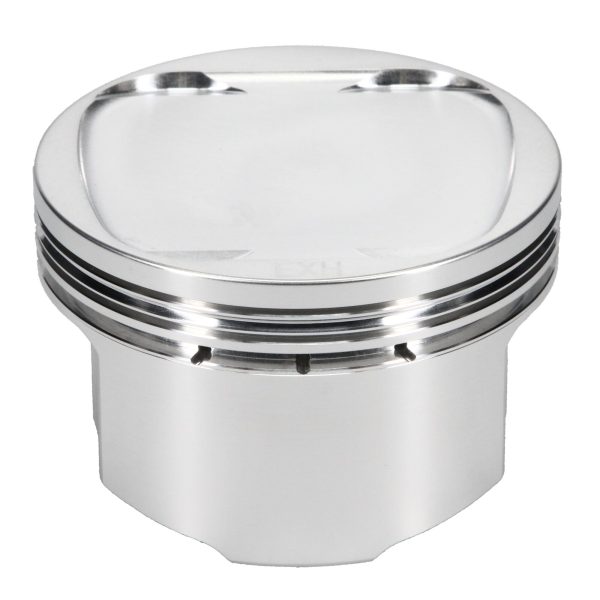

JE, Kawasaki, KVF Brute Force 750 / KRF Teryx 750, 10.00:1, 90.00 mm Bore, Left Piston

With a history in racing dating back to 1947, JE Pistons is the industry leader in high-performance powersports forged racing pistons. JE proudly engineers, forges, and machines precision racing pistons for a wide range of powersports machines in-house in the USA.

Additional Attributes:

GTIN: 00193564203441
Add-On: JG1001-3543
Add-On: 787-2250-14-93C
Add-On: 787-050-MW
Bore Diameter: 90.00
Cylinder Head: BRUTFRC/TRYX
Forging Type: Round
Industry: Powersports
OEM Compression Ratio: 10.00:1
Oil Ring Thickness: 0.111
Out of Stock Message: Call for Availability
Piston Avg Wt: 296
Piston Head Type: Dish
Piston Material: 2618
Piston Pin Length: 2.250
Piston Pin Material: 9310
Piston Pin Outside Diameter: 0.787
Piston Pin Wall Thickness: 0.140
Piston Volume: -11.9
Product Market: ATV
Product Market: UTV
Prop 65 (C, R or CR): CR
Prop 65 Yes/No: Yes
Ringset Included: Yes
Second Compression Ring Thickness: 0.048
Top Compression Ring Thickness: 0.04

Extened Information:

Emissions : Electronically Announced
Life Cycle Status: Available To Order


Quantity of Each: 1
Package UOM: EA
