JE, Lamborghini, 3.248 in. Bore, Single

SKU: BHXG-308177S

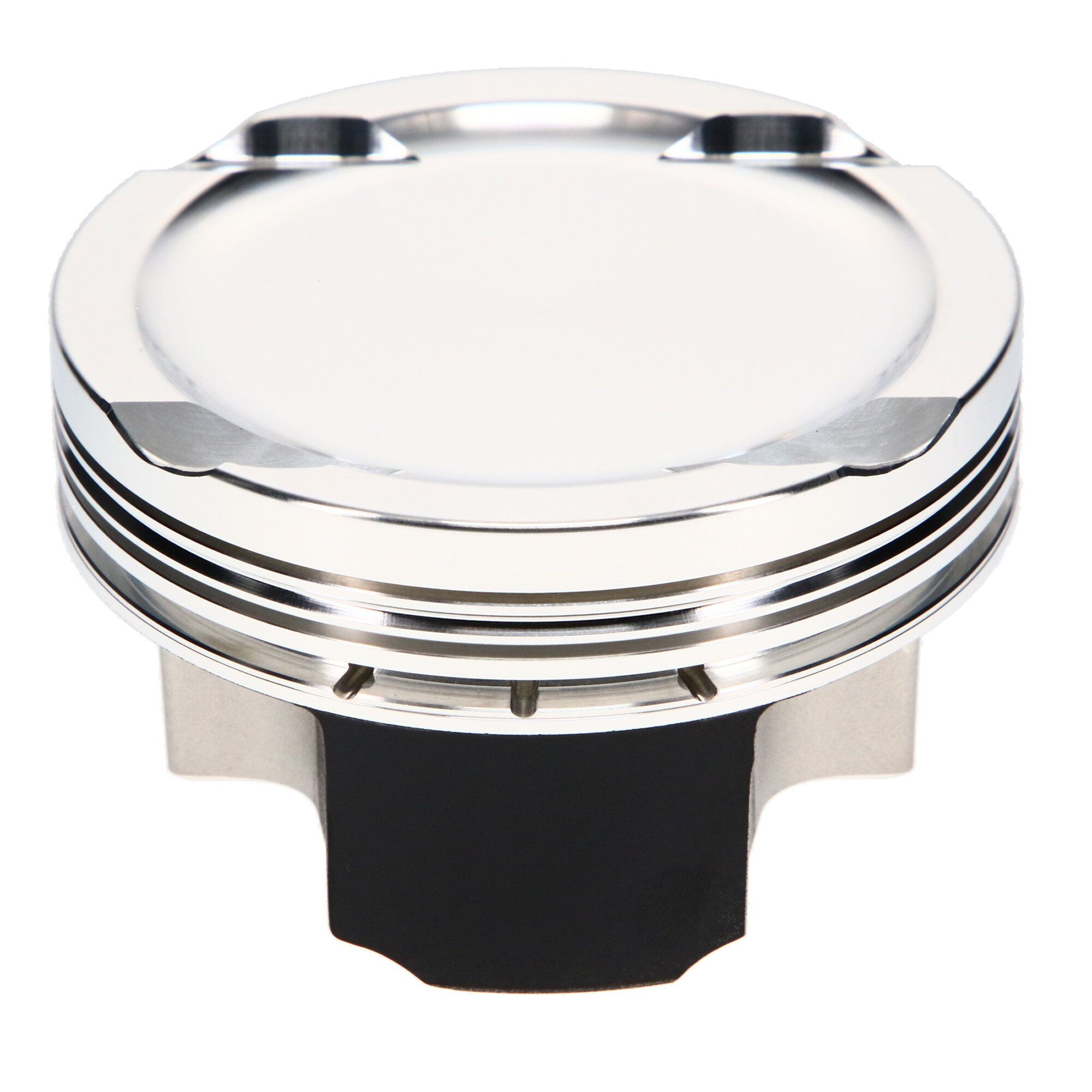

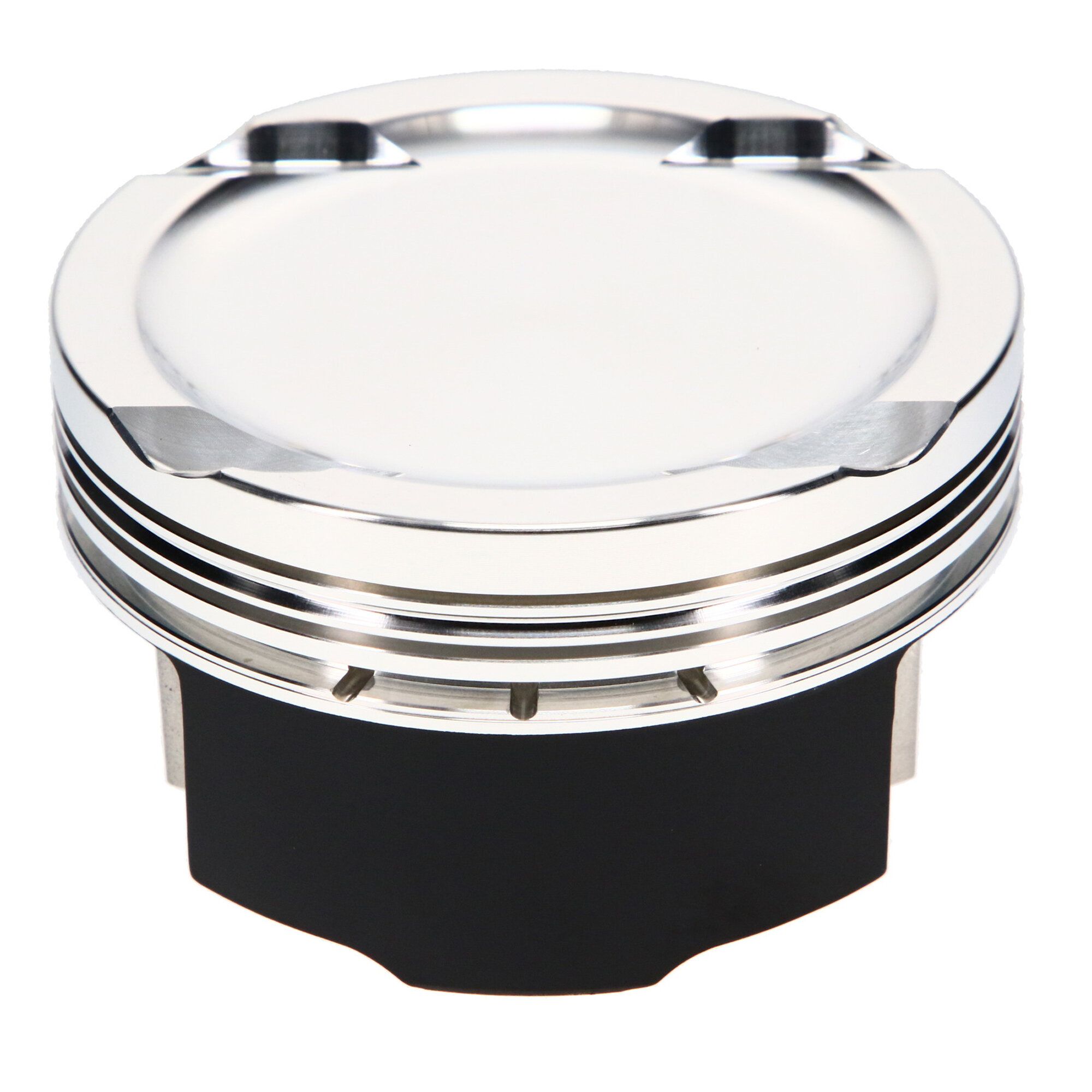

JE, Lamborghini, 5.0L V10 Gallardo, 3.248 in. Bore, 9.00:1, Inverted Dome/Dish, Single Piston

JE Pistons is the leader in forged racing pistons. With 70-plus years of experience, in-house forging, and industry-leading technology, JE Pistons are designed to perform at the top levels of all forms of motorsports.

Additional Attributes:

GTIN: 00193564013934
Ringset Included: Yes
Second Compression Ring Thickness: 0.048
Top Compression Ring Thickness: 0.04
Add-On: XC8255
Add-On: 787-2250-21-93C
Add-On: 787-050-MW
Bore Diameter: 82.50
Compression Height: 1.086
Cylinder Head: 5.0L V10
Engine: 5.0L V10 GALLARDO
Forging Type: FSR
Industry: Automotive
Oil Ring Thickness: 0.111
Out of Stock Message: Call for Availability
Piston Avg Wt: 271
Piston Head Type: Dish
Piston Material: 2618
Piston Pin Length: 2.250
Piston Pin Material: 9310
Piston Pin Outside Diameter: 0.787
Piston Pin Wall Thickness: 0.210
Piston Volume: -11.2
Product Market: Sport Compact
Prop 65 (C, R or CR): CR
Prop 65 Yes/No: Yes

Extened Information:

Emissions : Electronically Announced
Life Cycle Status: Available To Order


Quantity of Each: 1
Package UOM: EA
