JE, Nissan, 3.425 in. Bore, Single

$220.05
SKU: BHXG-209855S

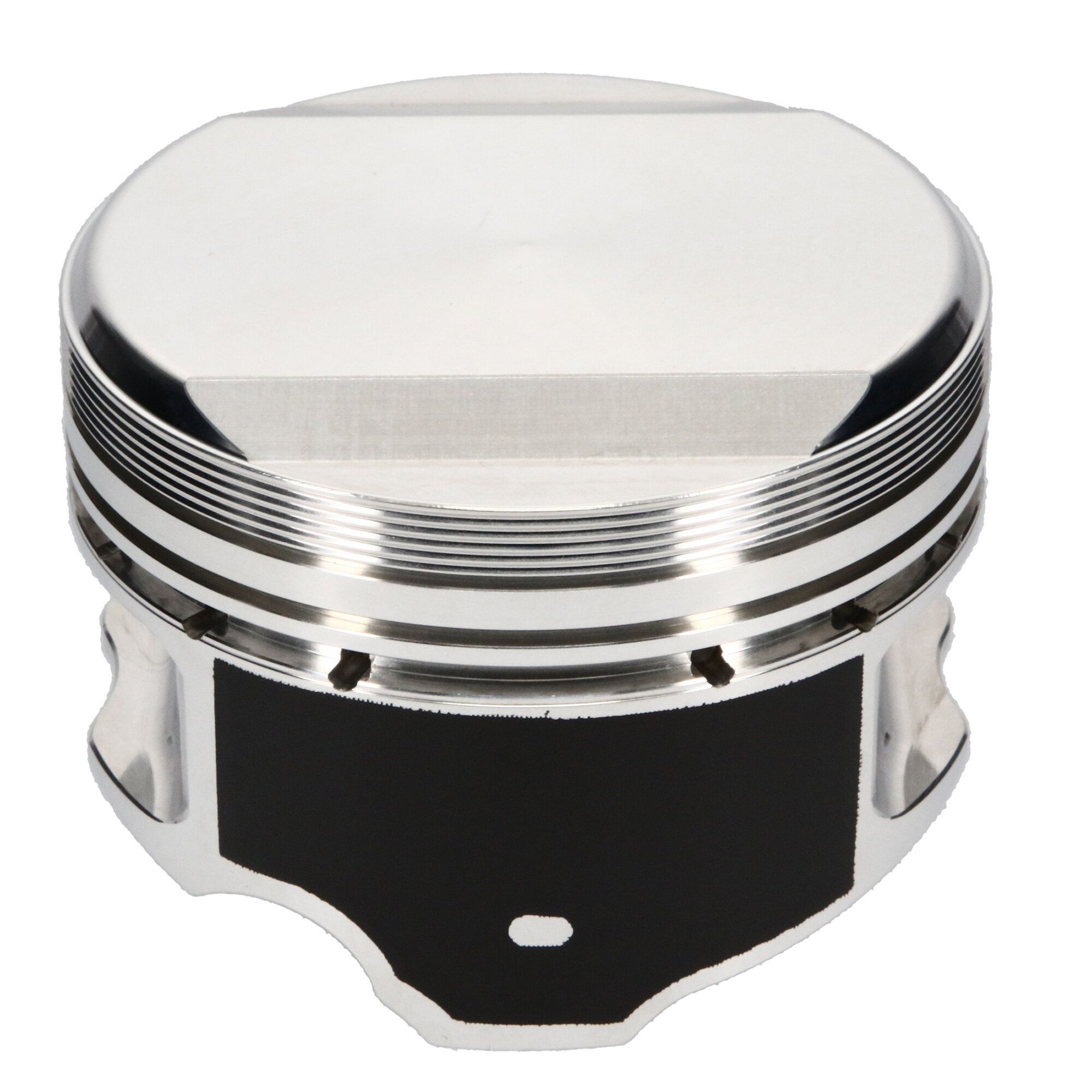

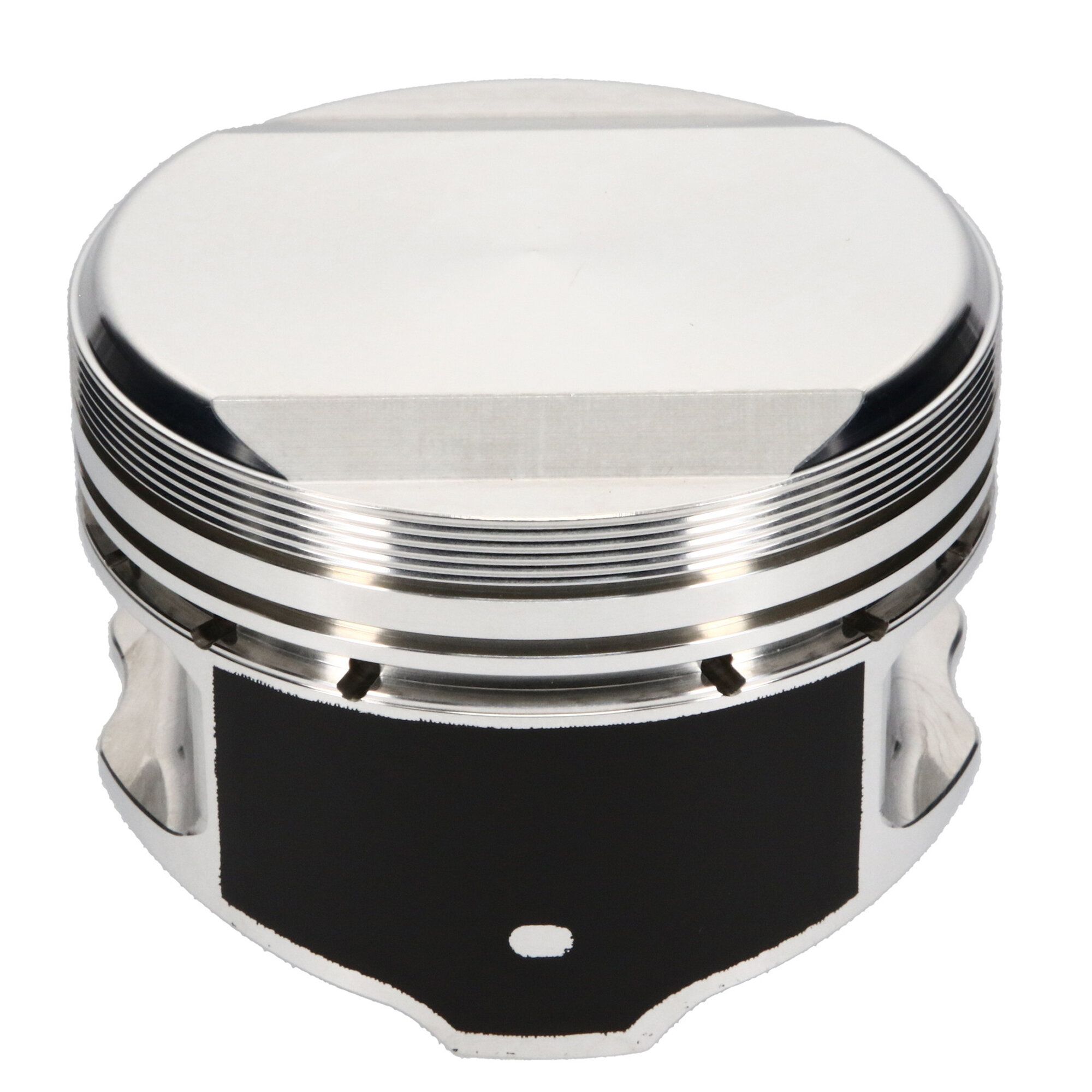

JE, Nissan, RB Series, 3.425 in. Bore, 8.50:1, Dome, Single Piston

JE Pistons is the leader in forged racing pistons. With 70-plus years of experience, in-house forging, and industry-leading technology, JE Pistons are designed to perform at the top levels of all forms of motorsports.

Additional Attributes:

GTIN: 00193564011312
Add-On: JC2104-3425
Add-On: 827-2250-15-51C
Add-On: 827-063-MW
Bore Diameter: 87.00
Compression Height: 1.185
Cylinder Head: RB26DETT
Engine: RB SERIES
Forging Type: Round
Industry: Automotive
Make: NISSAN
Oil Ring Thickness: 0.119
Out of Stock Message: Call for Availability
Piston Avg Wt: 360
Piston Head Type: Dome
Piston Material: 2618
Piston Pin Length: 2.250
Piston Pin Material: 5115
Piston Pin Outside Diameter: 0.827
Piston Pin Wall Thickness: 0.150
Piston Volume: 15.3
Product Market: Sport Compact
Prop 65 (C, R or CR): CR
Prop 65 Yes/No: Yes
Ringset Included: Yes
Second Compression Ring Thickness: 0.06
Top Compression Ring Thickness: 0.048

Extened Information:

Emissions : Electronically Announced
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
