JE, Nissan, 3.917 in. Bore, Single

SKU: BHXG-327831S

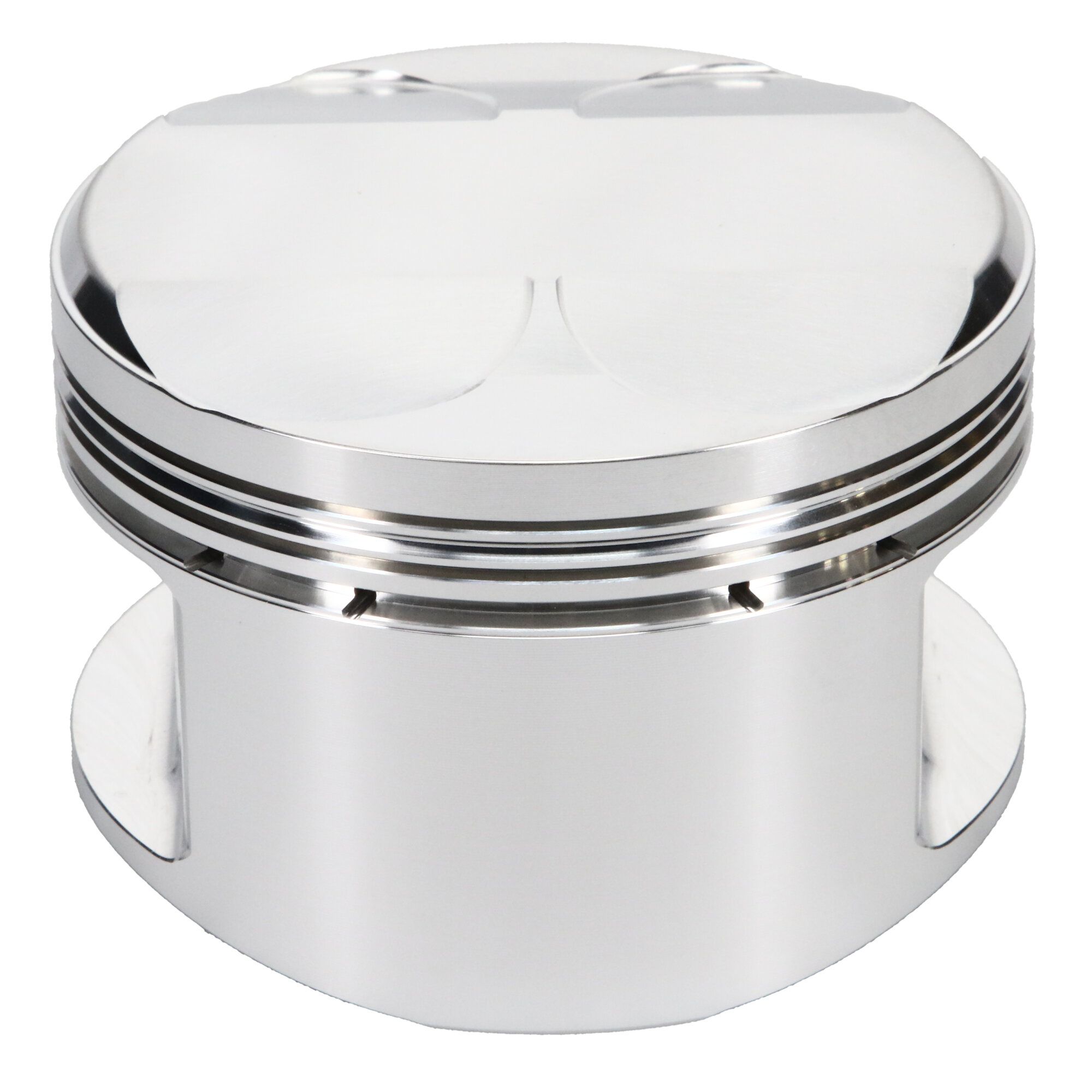

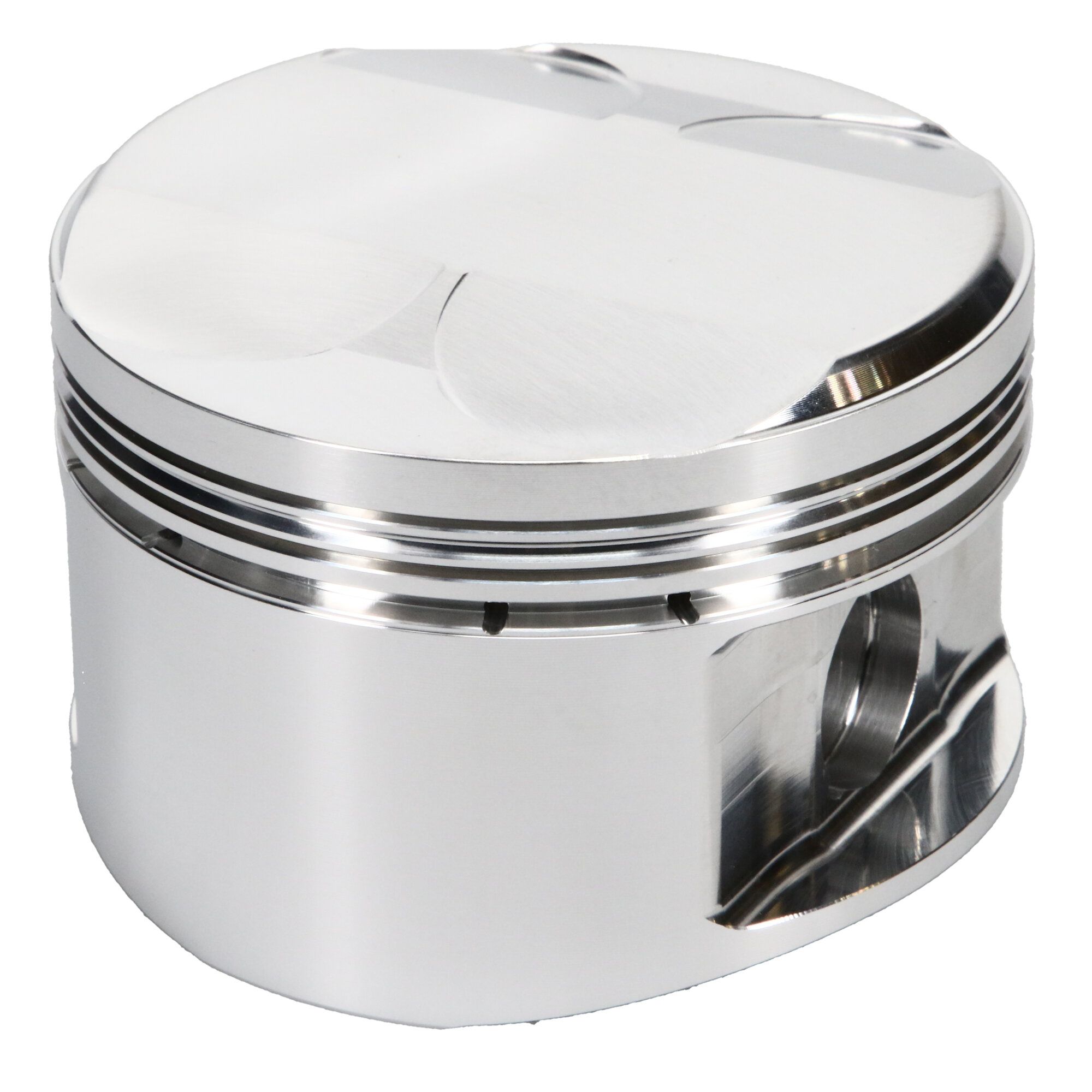

JE, Nissan, TB48DE, 3.917 in. Bore, 10.00:1, Dome, Single Piston

JE Pistons is the leader in forged racing pistons. With 70-plus years of experience, in-house forging, and industry-leading technology, JE Pistons are designed to perform at the top levels of all forms of motorsports.

Additional Attributes:

GTIN: 00193564024725
Industry: Automotive
Oil Ring Thickness: 0.111
Out of Stock Message: Call for Availability
Piston Avg Wt: 496
Piston Head Type: Dome
Piston Material: 2618
Piston Pin Length: 2.500
Piston Pin Material: 5115
Piston Pin Outside Diameter: 0.905
Piston Pin Wall Thickness: 0.150
Piston Volume: 16.8
Product Market: Sport Compact
Prop 65 (C, R or CR): CR
Prop 65 Yes/No: Yes
Ringset Included: Yes
Second Compression Ring Thickness: 0.048
Top Compression Ring Thickness: 0.04
Add-On: JG1001-3917
Add-On: 905-2500-15-51C
Add-On: 905-073-MW
Bore Diameter: 99.50
Compression Height: 1.585
Cylinder Head: TB48DE
Engine: TB48DE
Forging Type: Round

Extened Information:

Emissions : Electronically Announced
Life Cycle Status: Available To Order


Quantity of Each: 1
Package UOM: EA
