JE, Polaris, 3.268 in. Bore, Single

$251.50
SKU: BHXG-324923S

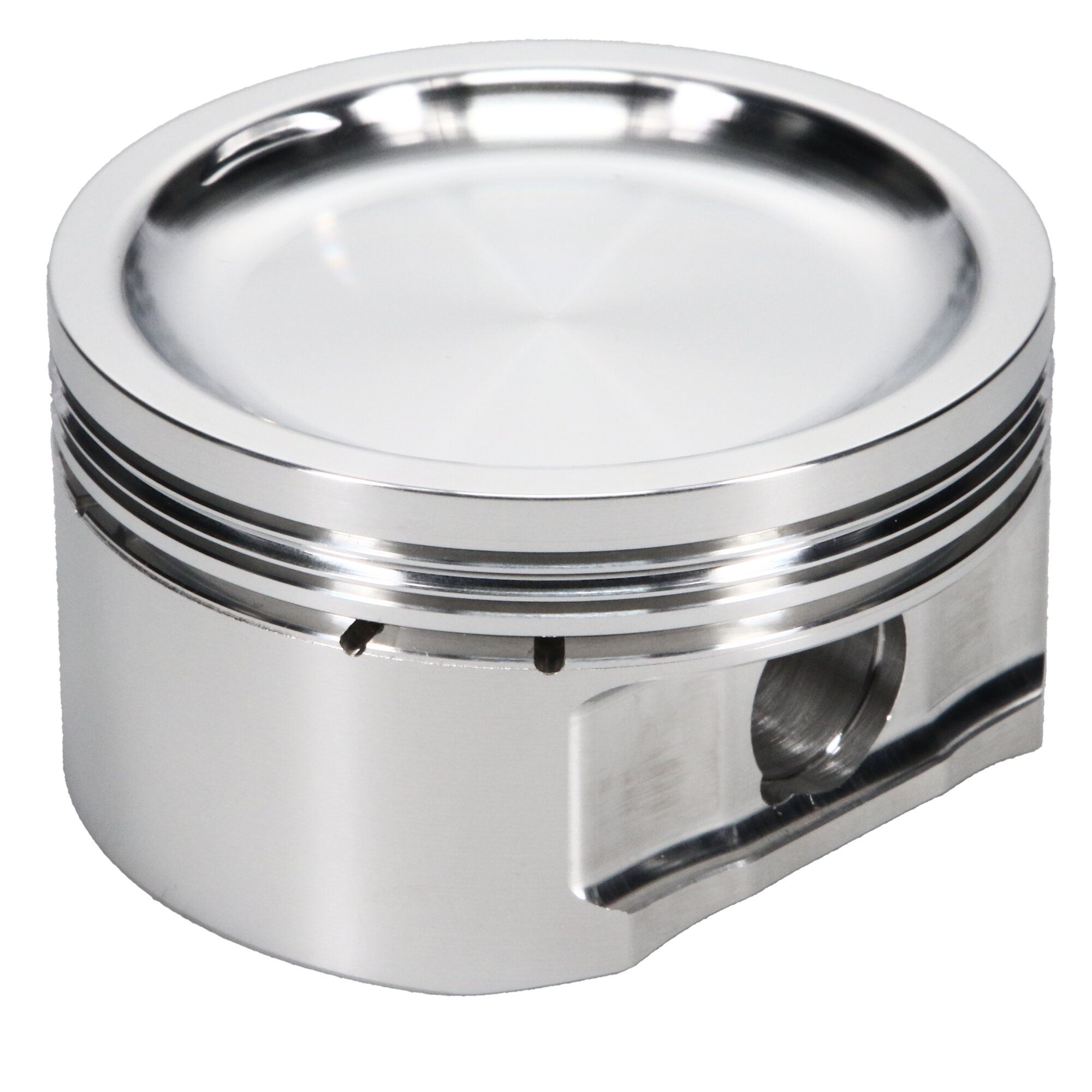

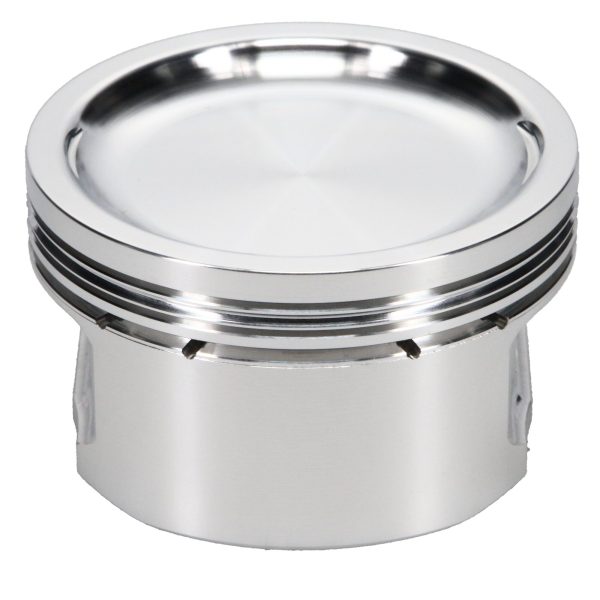

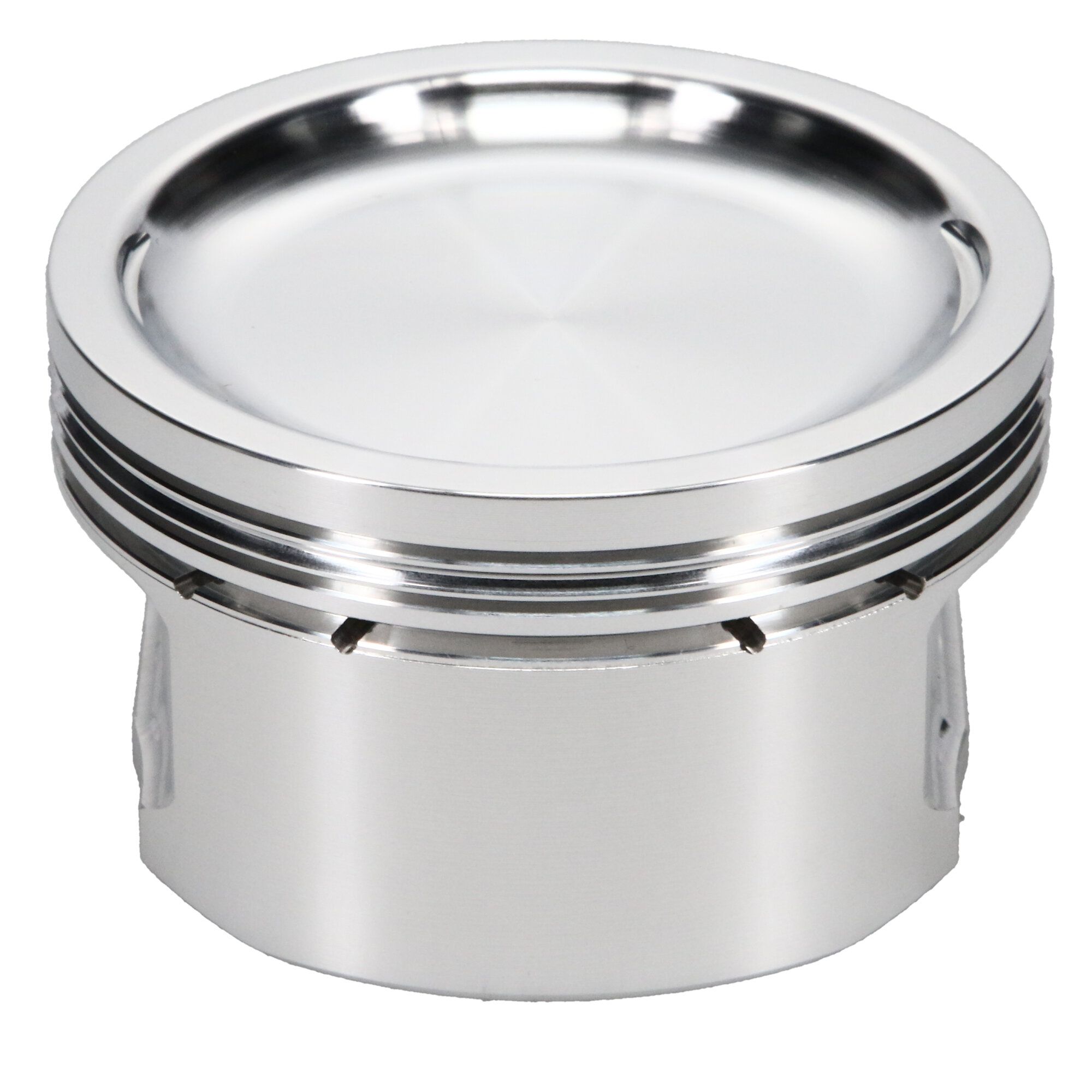

JE, Polaris, Sportsman 800 / Ranger / RZR / RZR S, 11.50:1, 3.268 in. Bore, Single Piston

With a history in racing dating back to 1947, JE Pistons is the industry leader in high-performance powersports forged racing pistons. JE proudly engineers, forges, and machines precision racing pistons for a wide range of powersports machines in-house in the USA.

Additional Attributes:

GTIN: 00193564209832
Add-On: XG8300
Add-On: 708-2250-14-93C
Add-On: 708-050-MW
Bore Diameter: 83.00
Cylinder Head: RZR 800
Forging Type: Round
Industry: Powersports
OEM Compression Ratio: 11.50:1
Oil Ring Thickness: 0.0795
Out of Stock Message: Call for Availability
Piston Avg Wt: 247
Piston Head Type: Dish
Piston Material: 2618
Piston Pin Length: 2.250
Piston Pin Material: 9310
Piston Pin Outside Diameter: 0.708
Piston Pin Wall Thickness: 0.140
Piston Volume: -17.6
Product Market: ATV
Product Market: UTV
Prop 65 (C, R or CR): CR
Prop 65 Yes/No: Yes
Ringset Included: Yes
Second Compression Ring Thickness: 0.04
Top Compression Ring Thickness: 0.04

Extened Information:

Emissions : Electronically Announced
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
