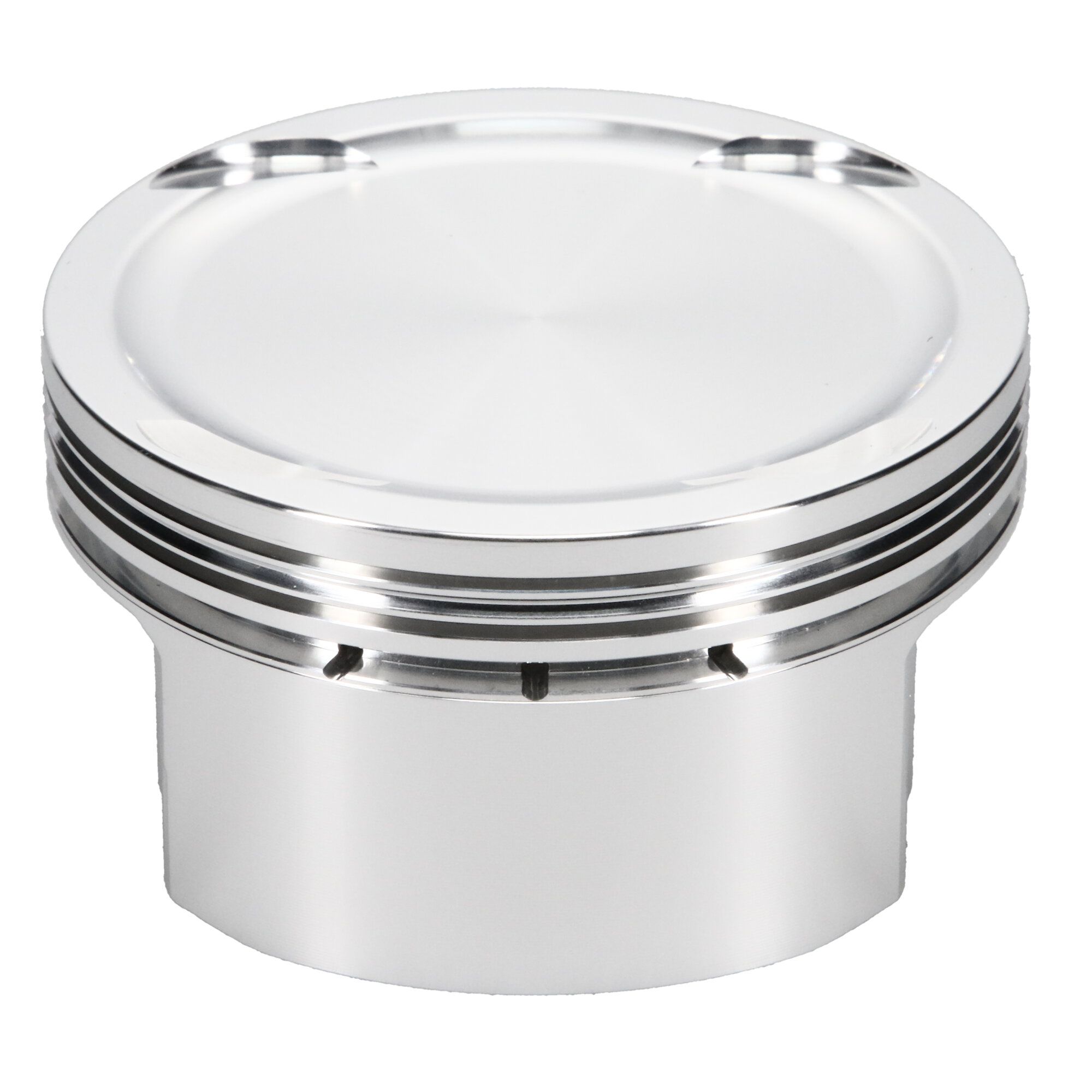

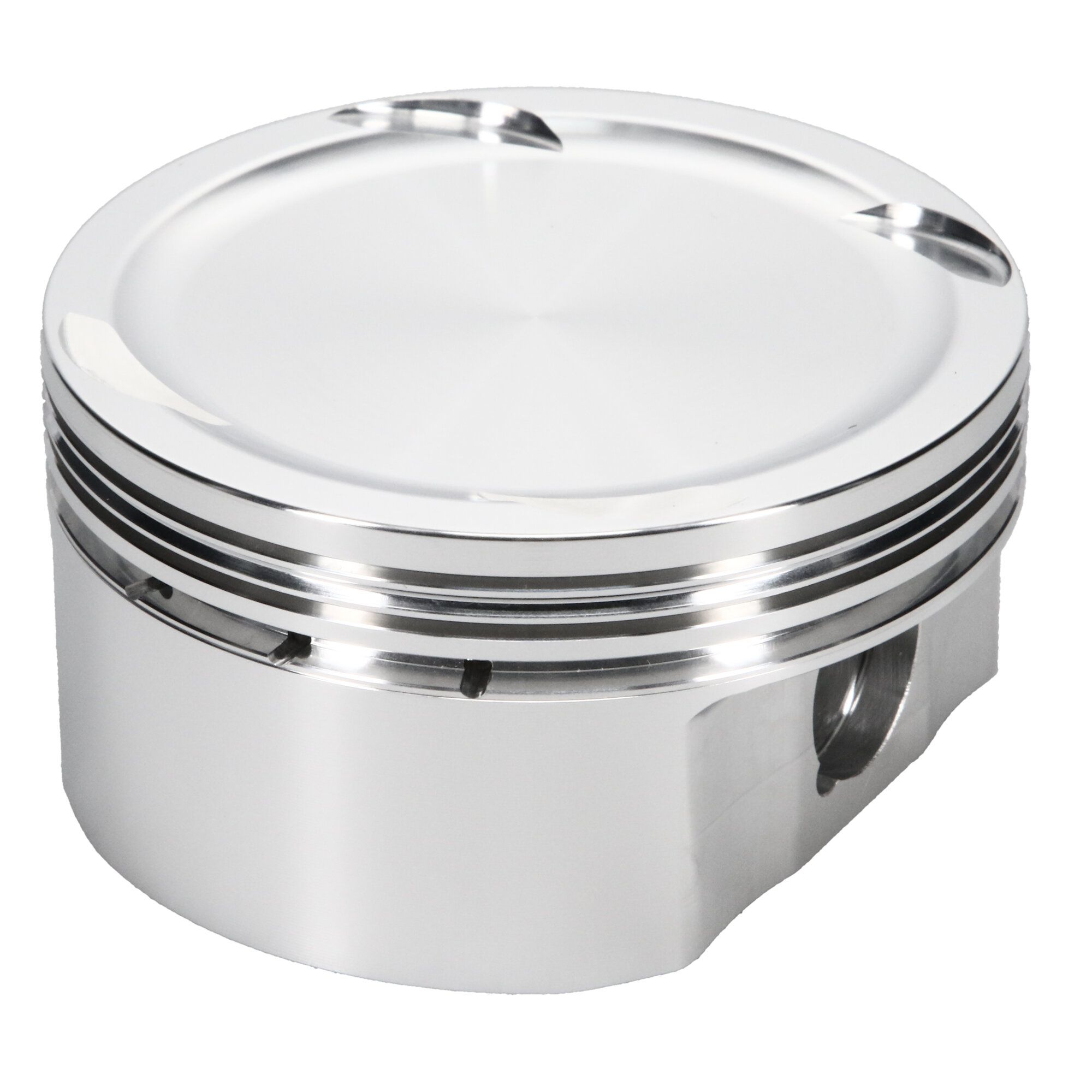

JE, Polaris, XP 850 Sportsman / Scrambler, 11.50:1, 3.543 in. Bore, Single Piston
$251.50
With a history in racing dating back to 1947, JE Pistons is the industry leader in high-performance powersports forged racing pistons. JE proudly engineers, forges, and machines precision racing pistons for a wide range of powersports machines in-house in the USA.
Additional Attributes:
GTIN: 00193564210135
Add-On: XC9000
Add-On: 787-2350-14-51C
Add-On: 787-050-MW
Bore Diameter: 90.00
Cylinder Head: XP 850
Forging Type: Round
Industry: Powersports
OEM Compression Ratio: 11.50:1
Oil Ring Thickness: 0.111
Out of Stock Message: Call for Availability
Piston Avg Wt: 286
Piston Head Type: Dish
Piston Material: 2618
Piston Pin Length: 2.350
Piston Pin Material: 5115
Piston Pin Outside Diameter: 0.787
Piston Pin Wall Thickness: 0.140
Piston Volume: -10.3
Product Market: ATV
Prop 65 (C, R or CR): CR
Prop 65 Yes/No: Yes
Ringset Included: Yes
Second Compression Ring Thickness: 0.048
Top Compression Ring Thickness: 0.04
Extened Information:
Emissions : Electronically Announced
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
