JE, Polaris, 3.780 in. Bore, Single

SKU: BHXG-306374S

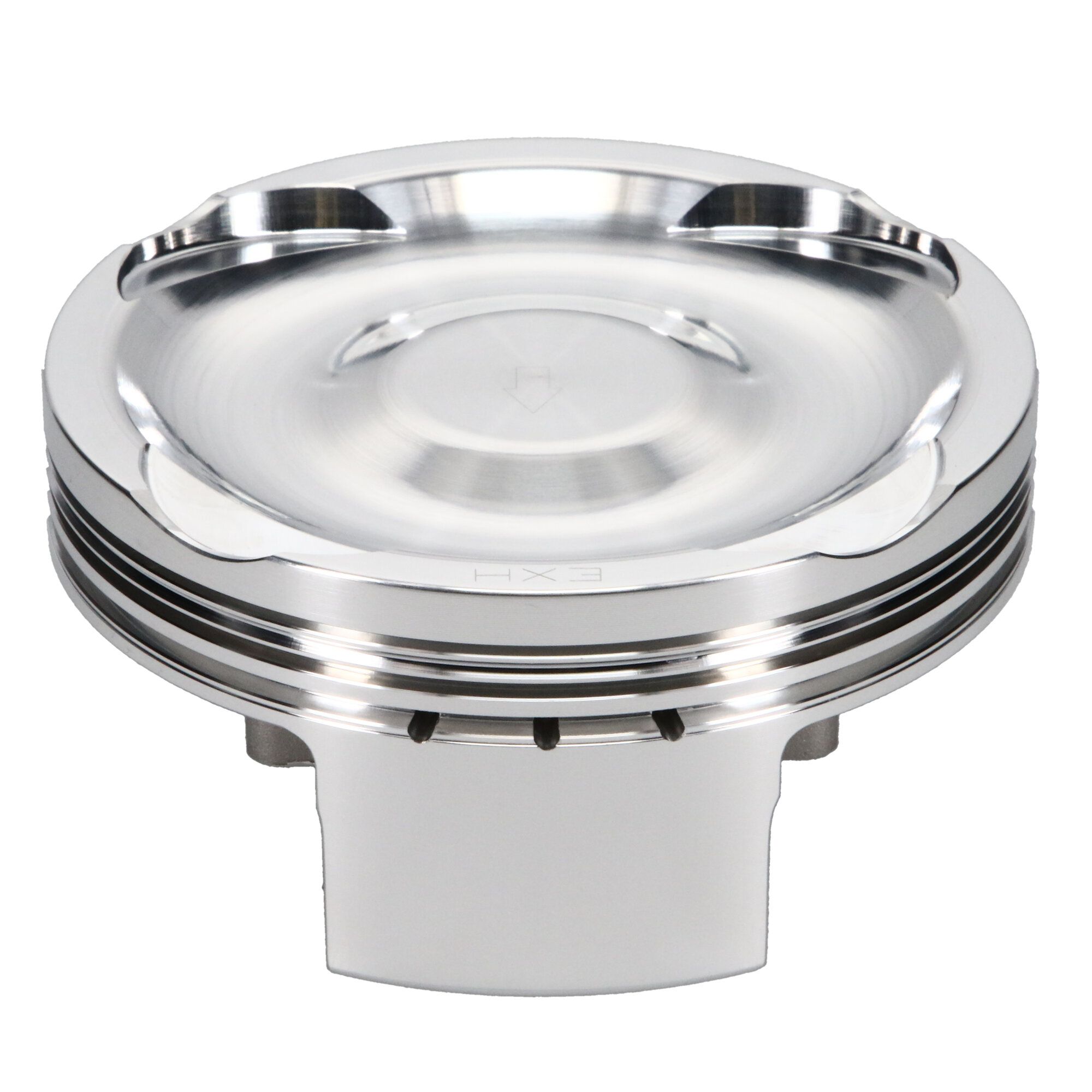

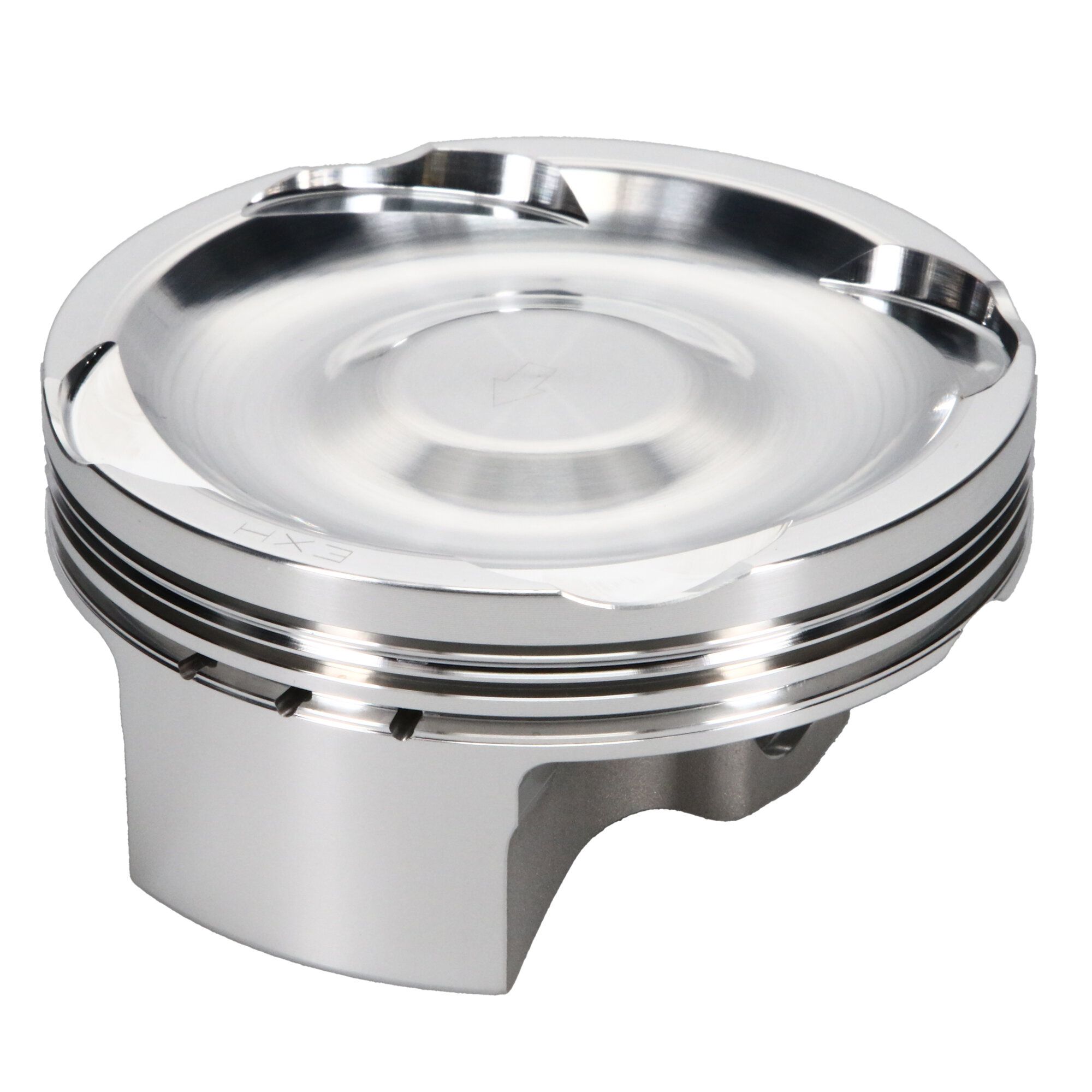

JE, Polaris, RZR XP 900, 12.00:1, 3.780 in. Bore, Single Piston

With a history in racing dating back to 1947, JE Pistons is the industry leader in high-performance powersports forged racing pistons. JE proudly engineers, forges, and machines precision racing pistons for a wide range of powersports machines in-house in the USA.

Additional Attributes:

GTIN: 00193564210005
Ringset Included: Yes
Second Compression Ring Thickness: 0.06
Top Compression Ring Thickness: 0.0383
Add-On: JG5A01-3780
Add-On: 787-2050-16-93C
Add-On: 787-050-MW
Bore Diameter: 96.00
Cylinder Head: RZR XP 900
Forging Type: FSR
Industry: Powersports
OEM Compression Ratio: 12.00:1
Oil Ring Thickness: 0.0795
Out of Stock Message: Call for Availability
Piston Avg Wt: 299
Piston Head Type: Dome
Piston Material: 2618
Piston Pin Length: 2.050
Piston Pin Material: 9310
Piston Pin Outside Diameter: 0.787
Piston Pin Wall Thickness: 0.160
Piston Volume: -1.8
Product Market: UTV
Prop 65 (C, R or CR): CR
Prop 65 Yes/No: Yes

Extened Information:

Emissions : Electronically Announced
Life Cycle Status: Available To Order


Quantity of Each: 1
Package UOM: EA
