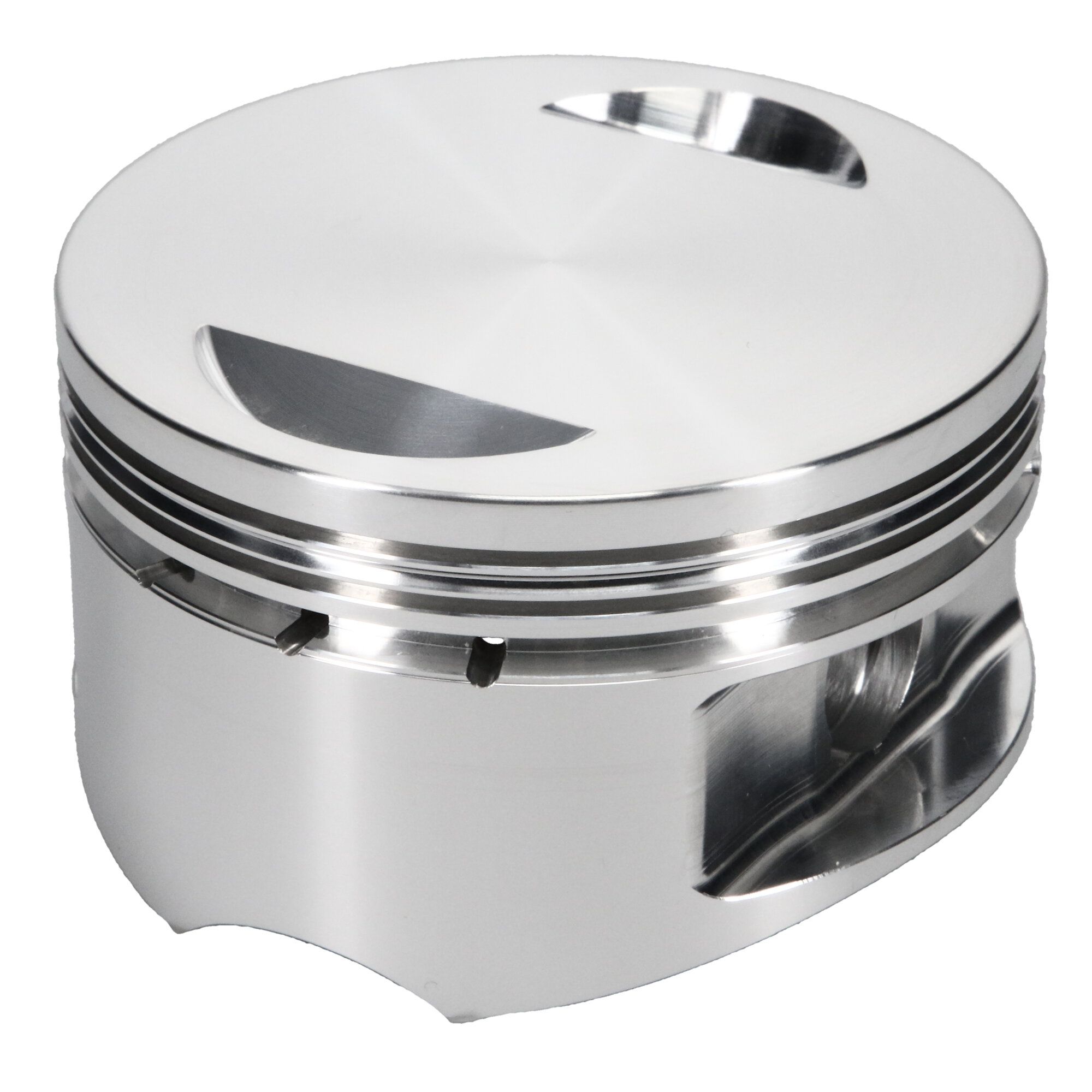

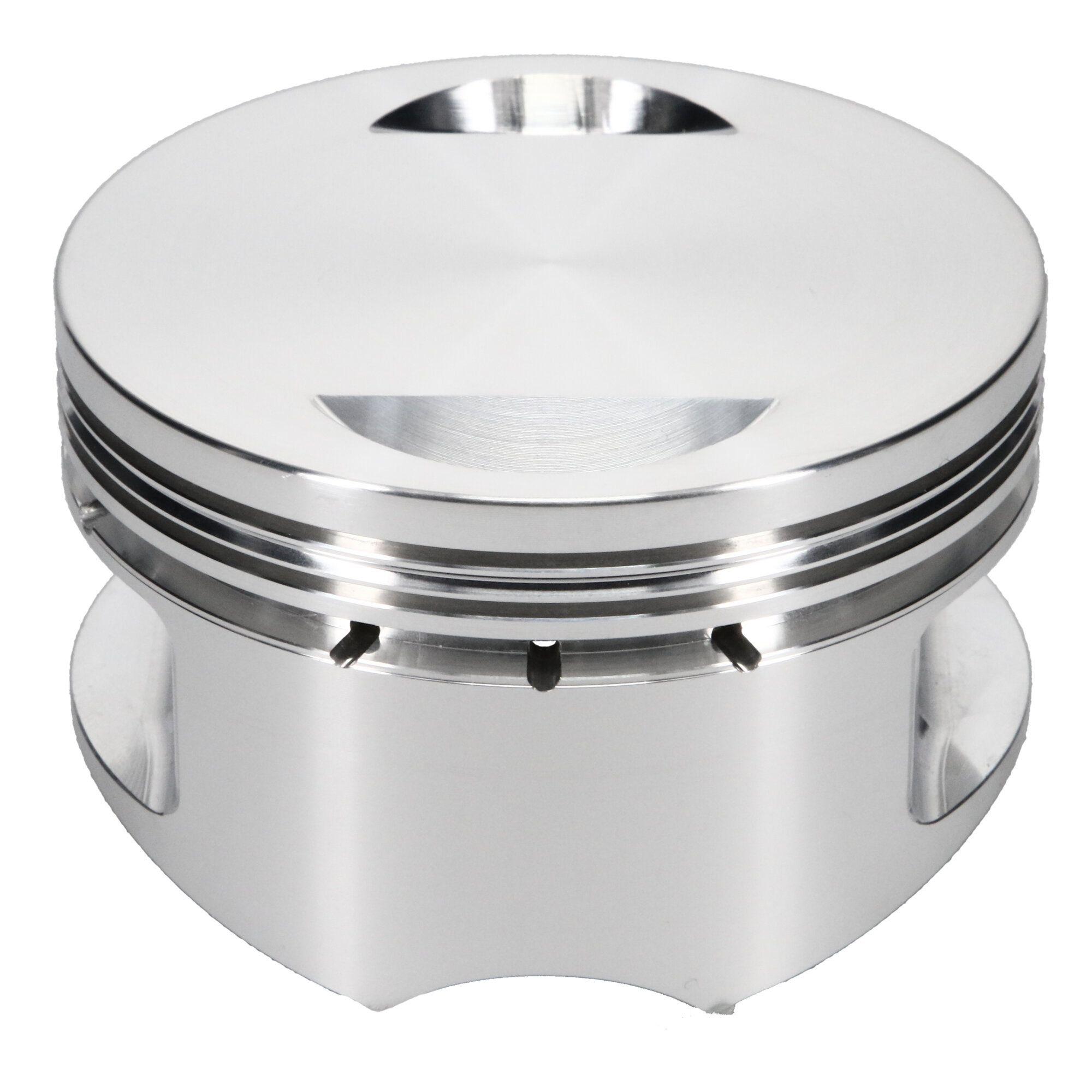

JE, RevTech, 3.822 in. Bore, Single

$220.07
SKU: BHXG-308428S

JE, RevTech, 100, 10.00:1, 3.822 in. Bore, Single Piston

With a history in racing dating back to 1947, JE Pistons is the industry leader in high-performance powersports forged racing pistons. JE proudly engineers, forges, and machines precision racing pistons for a wide range of powersports machines in-house in the USA.

Additional Attributes:

GTIN: 00193564210845
Cylinder Head: REVTEC
Forging Type: Round
Industry: Powersports
OEM Compression Ratio: 10.00:1
Oil Ring Thickness: 0.159
Out of Stock Message: Call for Availability
Piston Avg Wt: 405
Piston Head Type: Flat
Piston Material: 2618
Piston Pin Length: 2.500
Piston Pin Material: 5115
Piston Pin Outside Diameter: 0.792
Piston Pin Wall Thickness: 0.140
Piston Volume: -1.8
Product Market: V-Twin
Prop 65 (C, R or CR): CR
Prop 65 Yes/No: Yes
Ringset Included: Yes
Second Compression Ring Thickness: 0.064
Top Compression Ring Thickness: 0.064
Add-On: J190F1-3823
Add-On: 792-2500-14-51C
Add-On: 787-050-MW
Bore Diameter: 97.09

Extened Information:

Emissions : Electronically Announced
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
