JE, Suzuki, 76.00 mm Bore, Single

SKU: BHXG-192322S

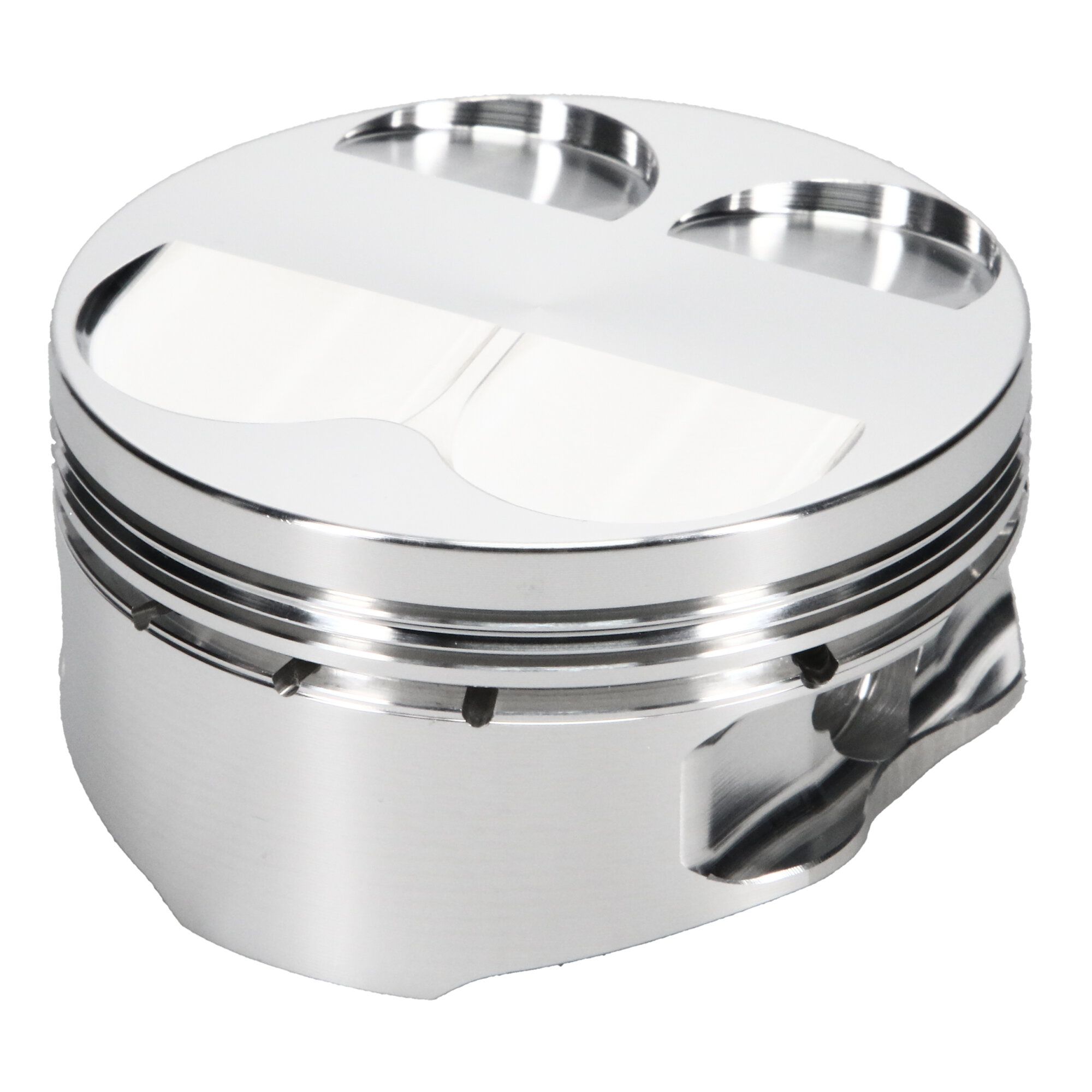

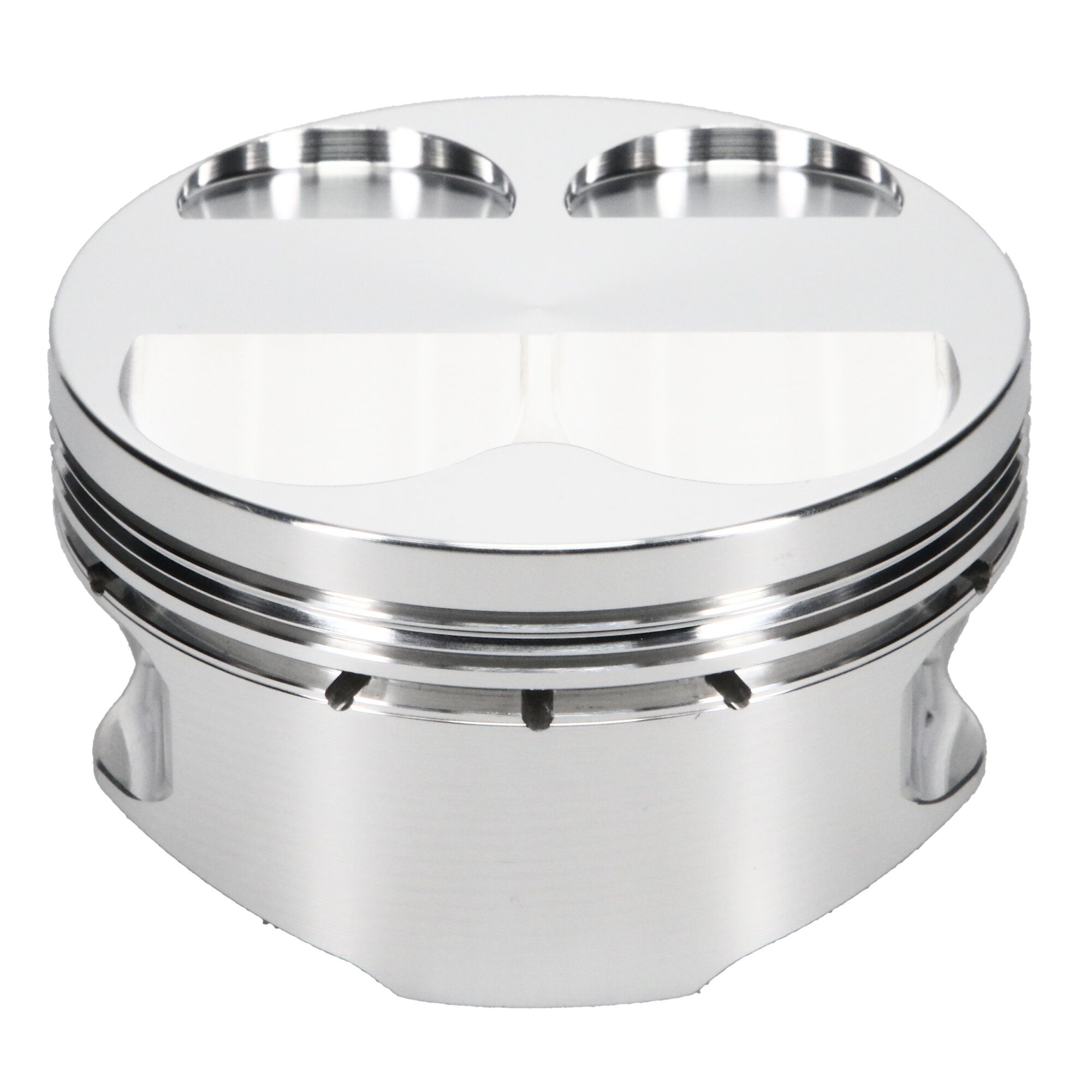

JE, Suzuki, GSXR-1000, 13.50:1, 76.00 mm Bore, Single Piston

With a history in racing dating back to 1947, JE Pistons is the industry leader in high-performance powersports forged racing pistons. JE proudly engineers, forges, and machines precision racing pistons for a wide range of powersports machines in-house in the USA.

Additional Attributes:

GTIN: 00193564212481
Forging Type: Round
Industry: Powersports
OEM Compression Ratio: 13.50:1
Oil Ring Thickness: 0.0805
Out of Stock Message: Call for Availability
Piston Avg Wt: 180
Piston Head Type: Flat
Piston Material: 2618
Piston Pin Length: 2.050
Piston Pin Material: 9310
Piston Pin Outside Diameter: 0.630
Piston Pin Wall Thickness: 0.140
Piston Volume: -3.7
Product Market: Street
Prop 65 (C, R or CR): CR
Prop 65 Yes/No: Yes
Ringset Included: Yes
Second Compression Ring Thickness: 0.04
Top Compression Ring Thickness: 0.04
Add-On: XG7600
Add-On: 630-2050-14-95C
Add-On: 630-050-MW
Bore Diameter: 76.00
Cylinder Head: GSXR-1000

Extened Information:

Emissions : Electronically Announced
Life Cycle Status: Available To Order


Quantity of Each: 1
Package UOM: EA
