JE, Suzuki, 85.00 mm Bore, Single

$264.43
SKU: BHXG-284735S

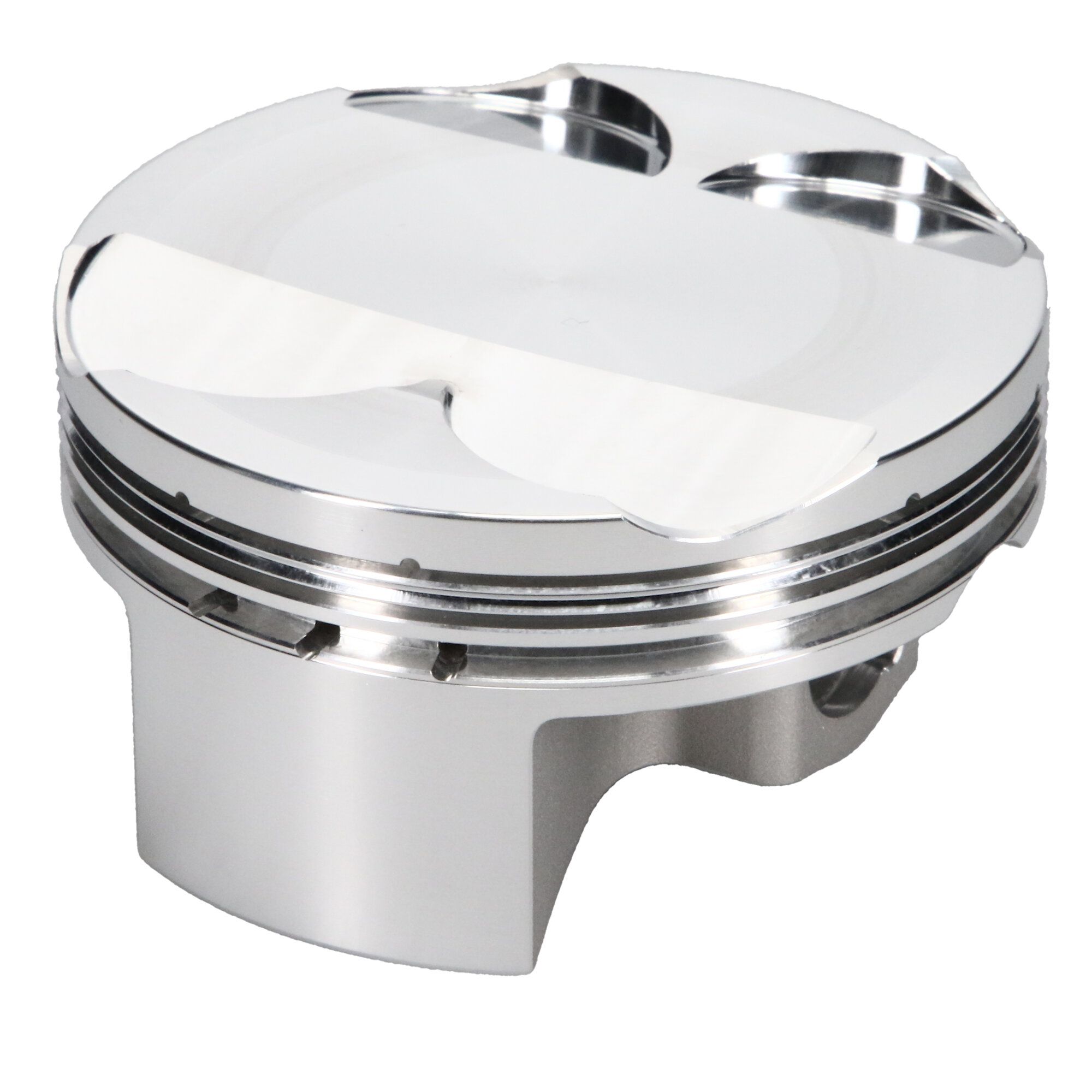

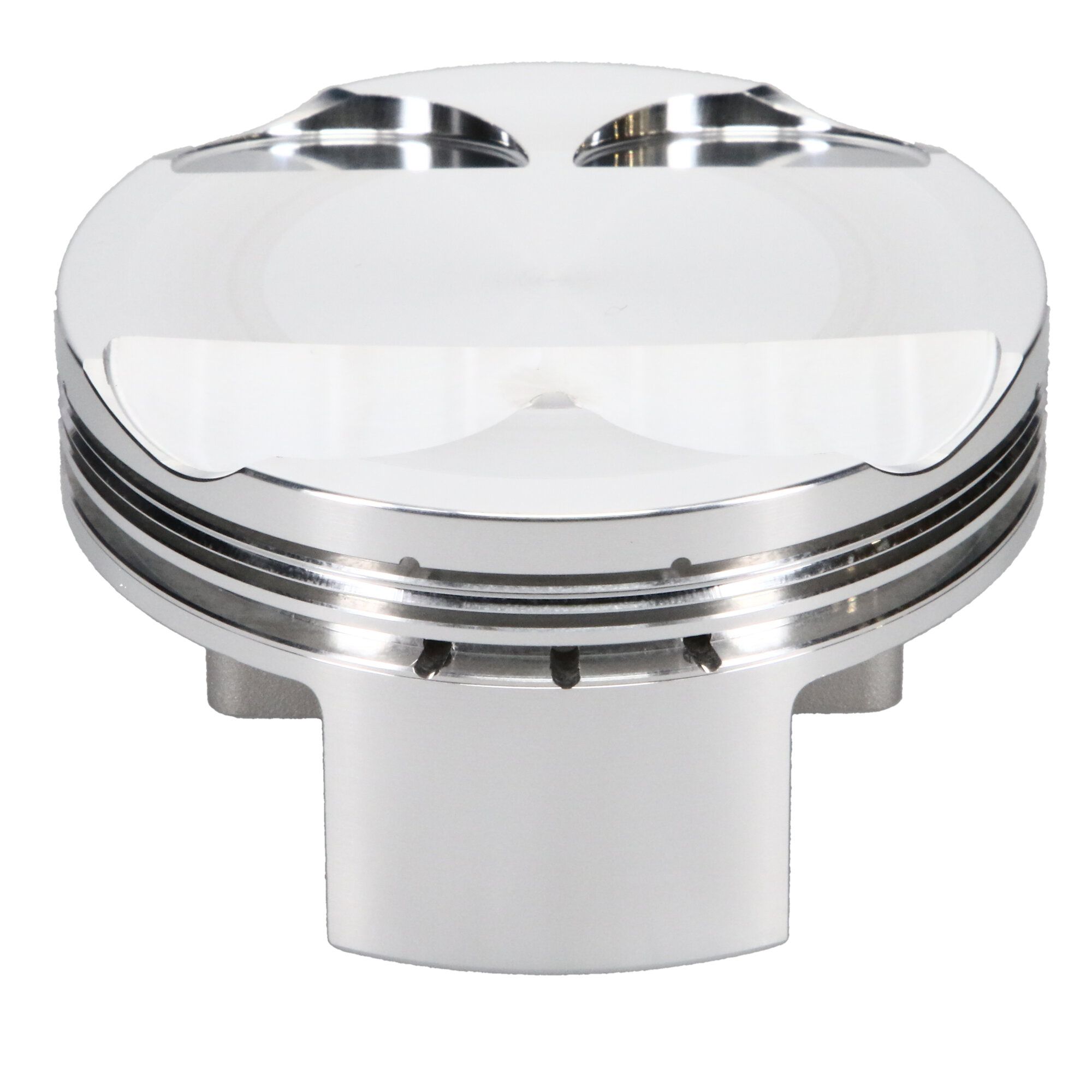

JE, Suzuki, GSX1300R, 13.50:1, 85.00 mm Bore, Single Piston

With a history in racing dating back to 1947, JE Pistons is the industry leader in high-performance powersports forged racing pistons. JE proudly engineers, forges, and machines precision racing pistons for a wide range of powersports machines in-house in the USA.

Additional Attributes:

GTIN: 00193564212511
Add-On: JG1001-3346
Add-On: 708-2050-14-93C
Add-On: 708-050-MW
Bore Diameter: 85.00
Cylinder Head: BMW 4 VALVE
Forging Type: FSR
Industry: Powersports
OEM Compression Ratio: 13.50:1
Oil Ring Thickness: 0.111
Out of Stock Message: Call for Availability
Piston Avg Wt: 237
Piston Head Type: Dish
Piston Material: 2618
Piston Pin Length: 2.050
Piston Pin Material: 9310
Piston Pin Outside Diameter: 0.708
Piston Pin Wall Thickness: 0.140
Piston Volume: 18
Product Market: Street
Prop 65 (C, R or CR): CR
Prop 65 Yes/No: Yes
Ringset Included: Yes
Second Compression Ring Thickness: 0.048
Top Compression Ring Thickness: 0.04

Extened Information:

Emissions : Electronically Announced
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
