JE, Toyota, 3.386 in. Bore, Single

SKU: BHXG-298701S

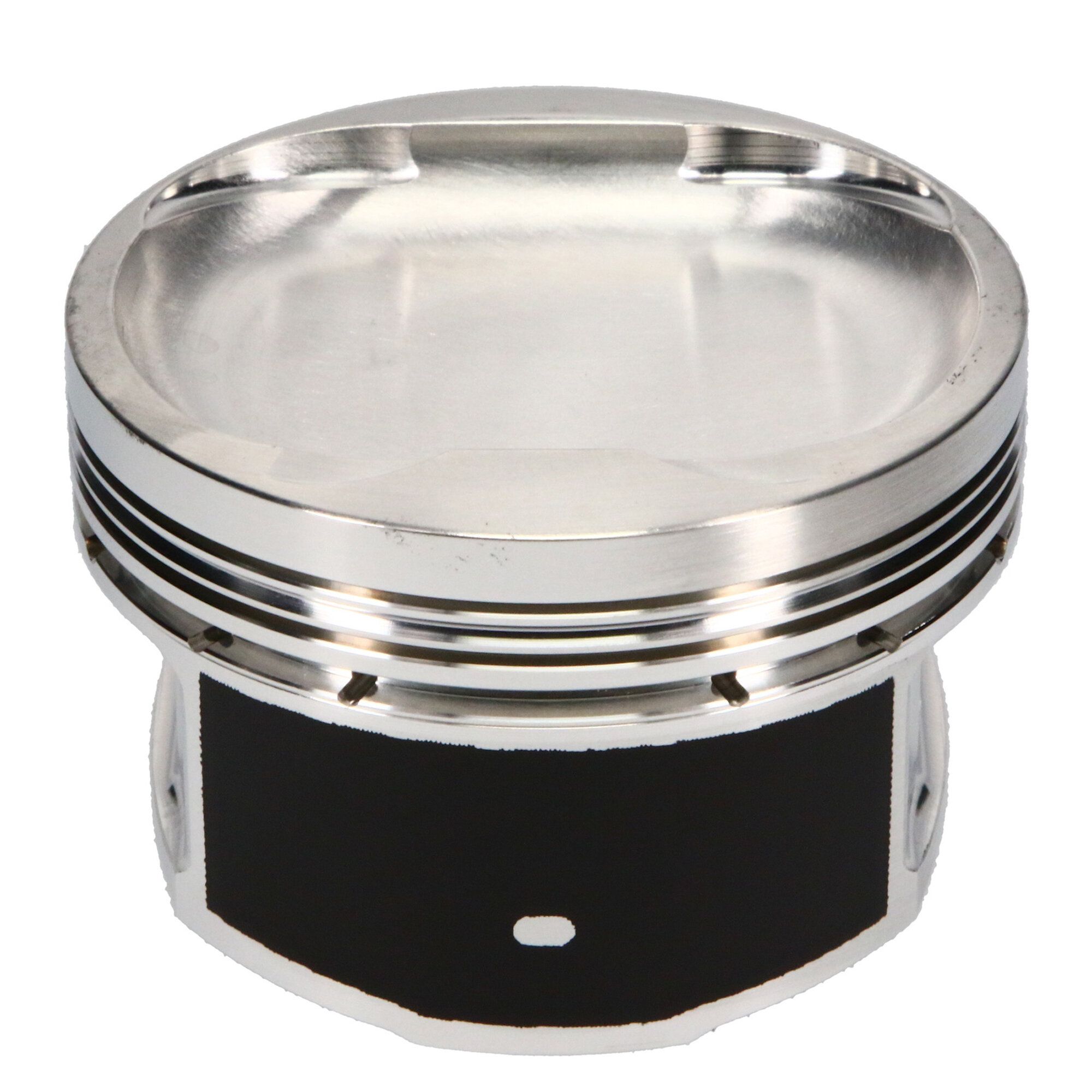

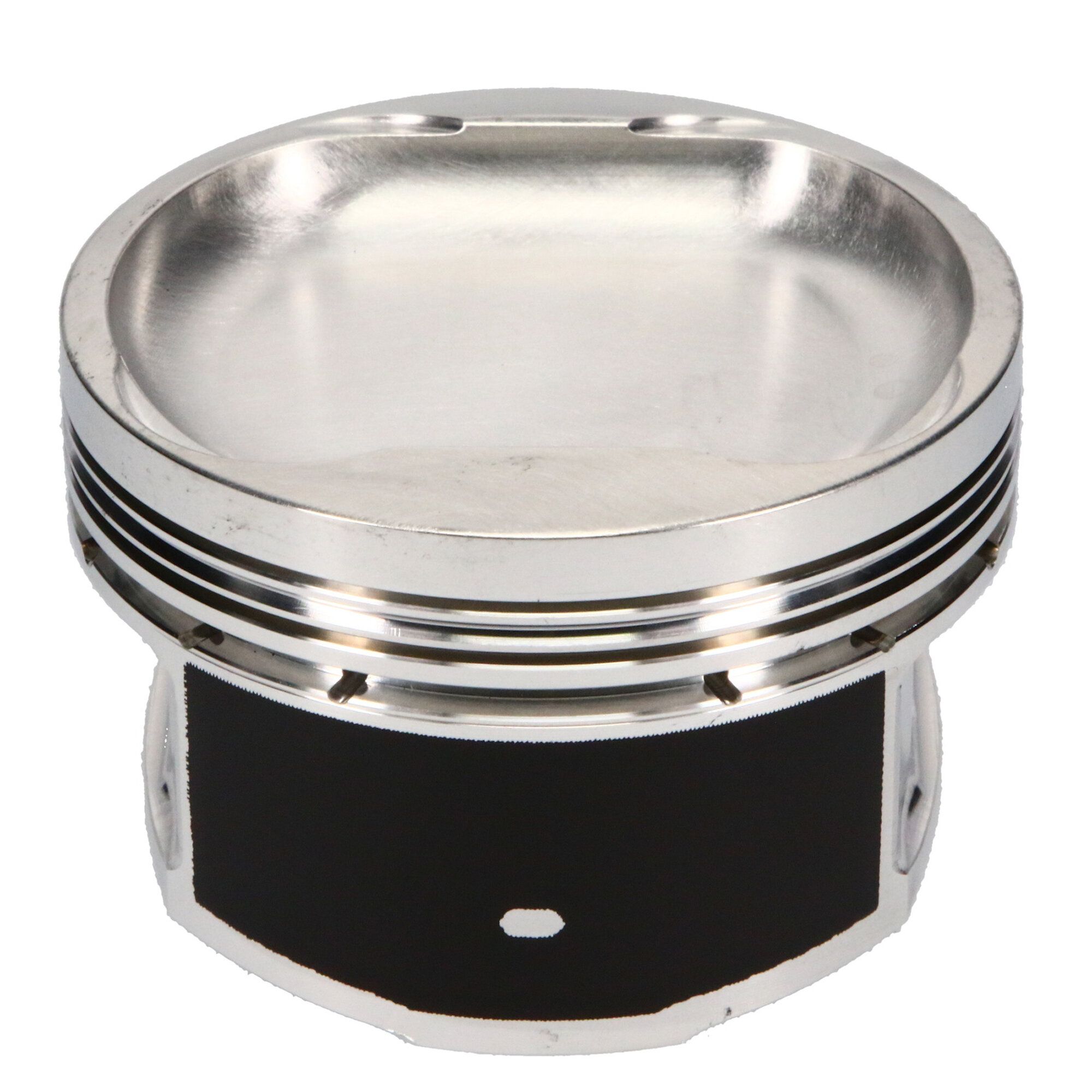

JE, Toyota, 3S-GTE, 3.386 in. Bore, 9.00:1, Inverted Dome/Dish, Single Piston

JE Pistons is the leader in forged racing pistons. With 70-plus years of experience, in-house forging, and industry-leading technology, JE Pistons are designed to perform at the top levels of all forms of motorsports.

Additional Attributes:

GTIN: 00193564011220
Add-On: 866-063-MW
Bore Diameter: 86.00
Compression Height: 1.378
Cylinder Head: 3S-GTE
Engine: 3S-GTE
Forging Type: FSR
Industry: Automotive
Oil Ring Thickness: 0.111
Out of Stock Message: Call for Availability
Piston Avg Wt: 322
Piston Head Type: Dish
Piston Material: 2618
Piston Pin Length: 2.250
Piston Pin Material: 9310
Piston Pin Outside Diameter: 0.866
Piston Pin Wall Thickness: 0.230
Piston Volume: -6
Product Market: Sport Compact
Prop 65 (C, R or CR): CR
Prop 65 Yes/No: Yes
Ringset Included: Yes
Second Compression Ring Thickness: 0.048
Top Compression Ring Thickness: 0.04
Add-On: JG1004-3386
Add-On: 866-2250-23-93C

Extened Information:

Emissions : Electronically Announced
Life Cycle Status: Available To Order


Quantity of Each: 1
Package UOM: EA
