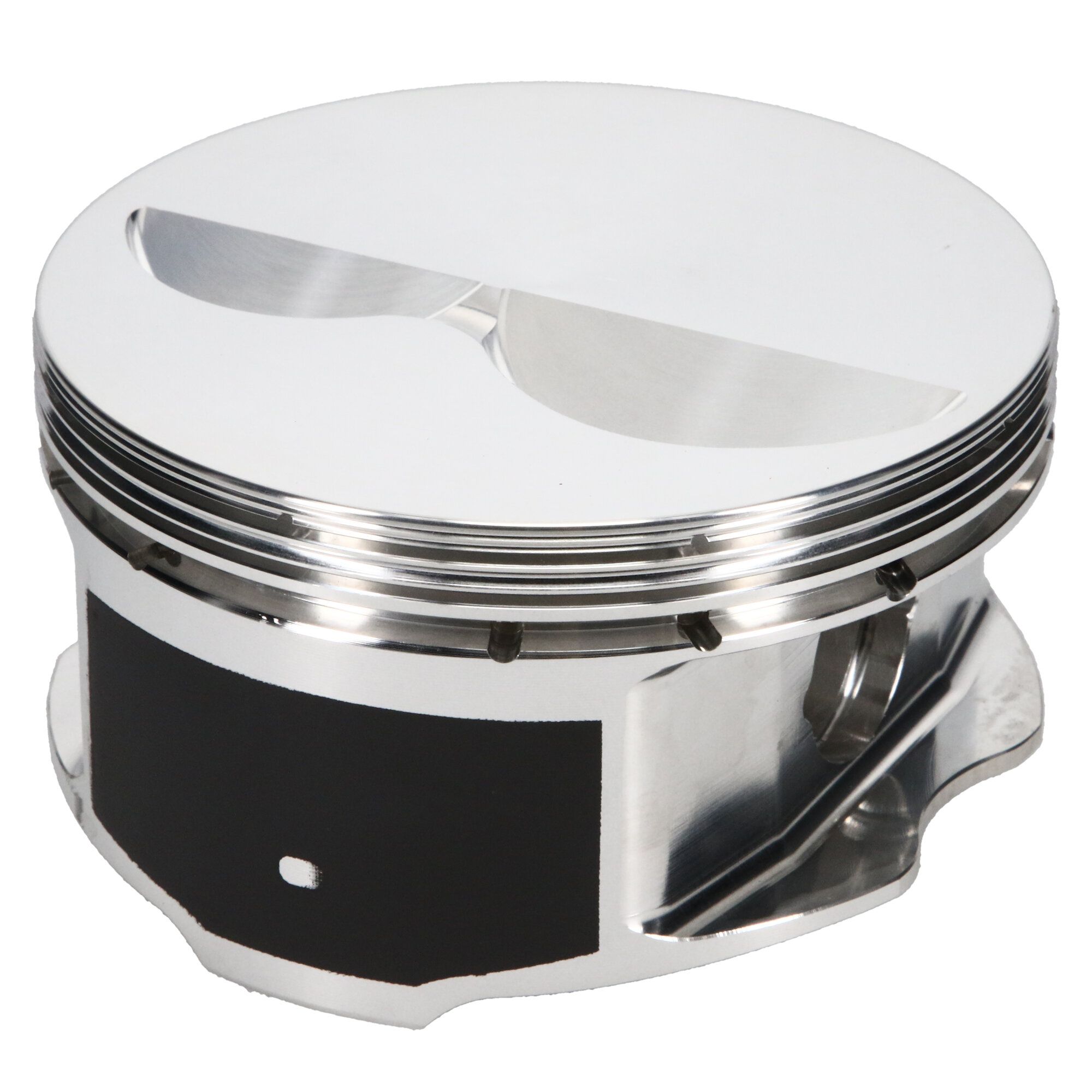

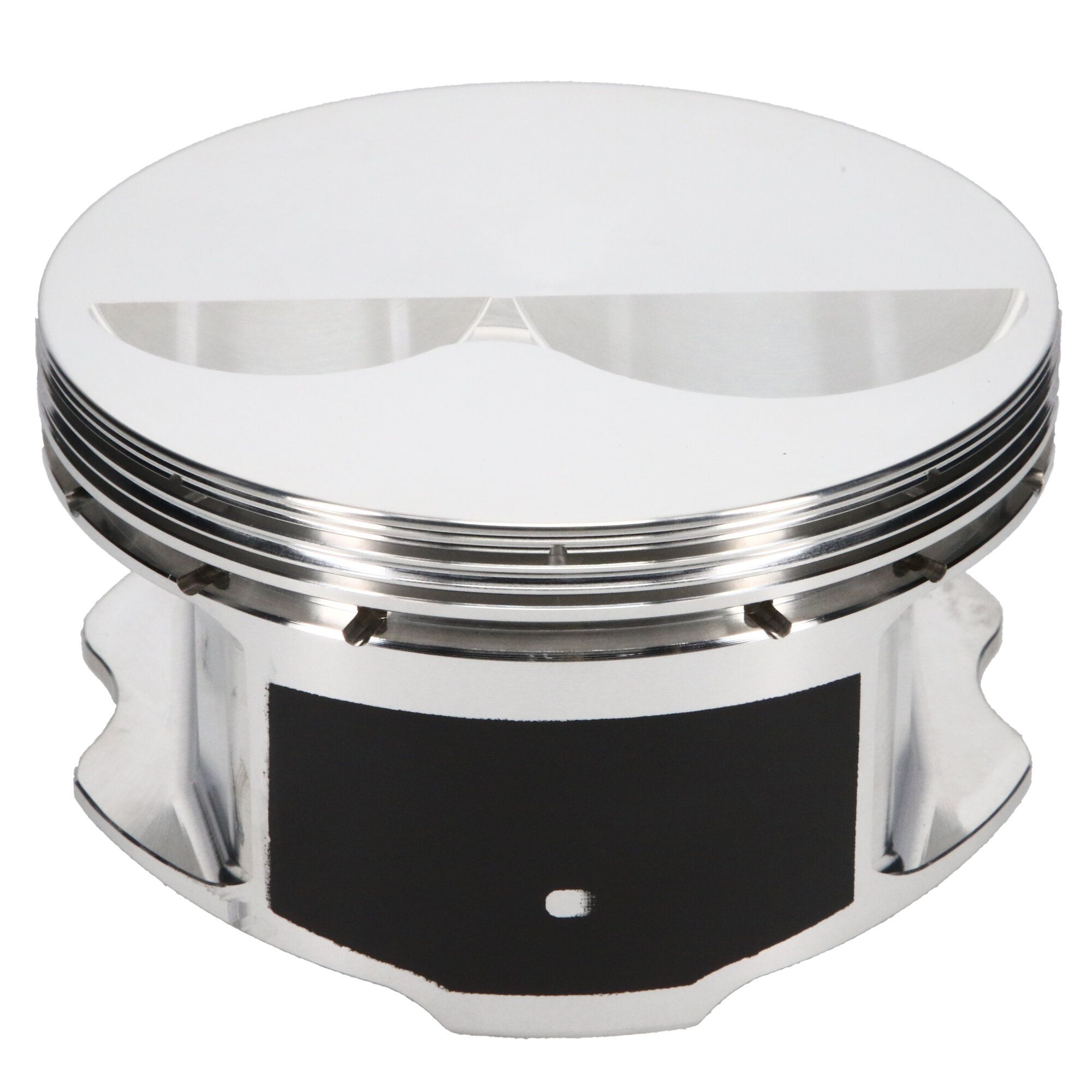

JE Ultra, Chevrolet, Small Block Chevrolet, 4.030 in. Bore, 1.250 CD, Flat Top, Right Piston
JE Pistons is the leader in forged racing pistons. With 70-plus years of experience, in-house forging, and industry-leading technology, JE Pistons are designed to perform at the top levels of all forms of motorsports.
Additional Attributes:
GTIN: 00193564187468
Piston Volume: -1.5
Product Market: Domestic
Prop 65 (C, R or CR): CR
Prop 65 Yes/No: Yes
Ringset Included: No
Second Compression Ring Thickness: 0.044
Top Compression Ring Thickness: 0.0436
Add-On: J71408-4030-5
Add-On: 927-2400-13-51C
Add-On: 927-073-MW
Bore Diameter: 4.030
Compression Height: 1.250
Cylinder Head: STD CHEVROLET 23 DEG
Engine: SMALL BLOCK CHEVROLET
Forging Type: Round
Industry: Automotive
Make: CHEVROLET
Oil Ring Thickness: 0.119
Out of Stock Message: Call for Availability
Piston Avg Wt: 358
Piston Head Type: Flat
Piston Material: 2618
Piston Pin Length: 2.400
Piston Pin Material: 5115
Piston Pin Outside Diameter: 0.927
Piston Pin Wall Thickness: 0.130
Extened Information:
Emissions : Electronically Announced
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
