JE Ultra, Chevrolet, 4.035 in. Bore, Left

SKU: BHXG-207484L

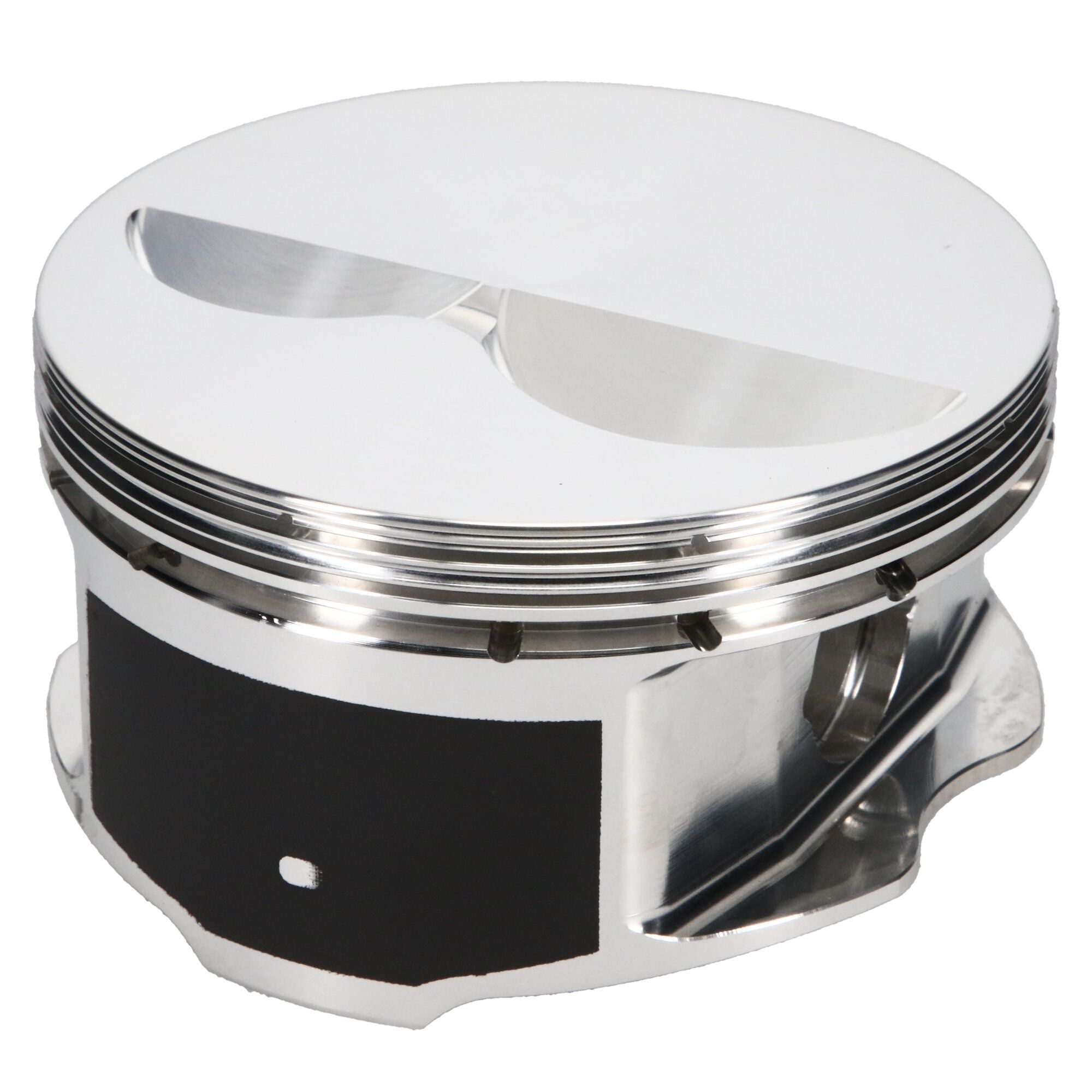

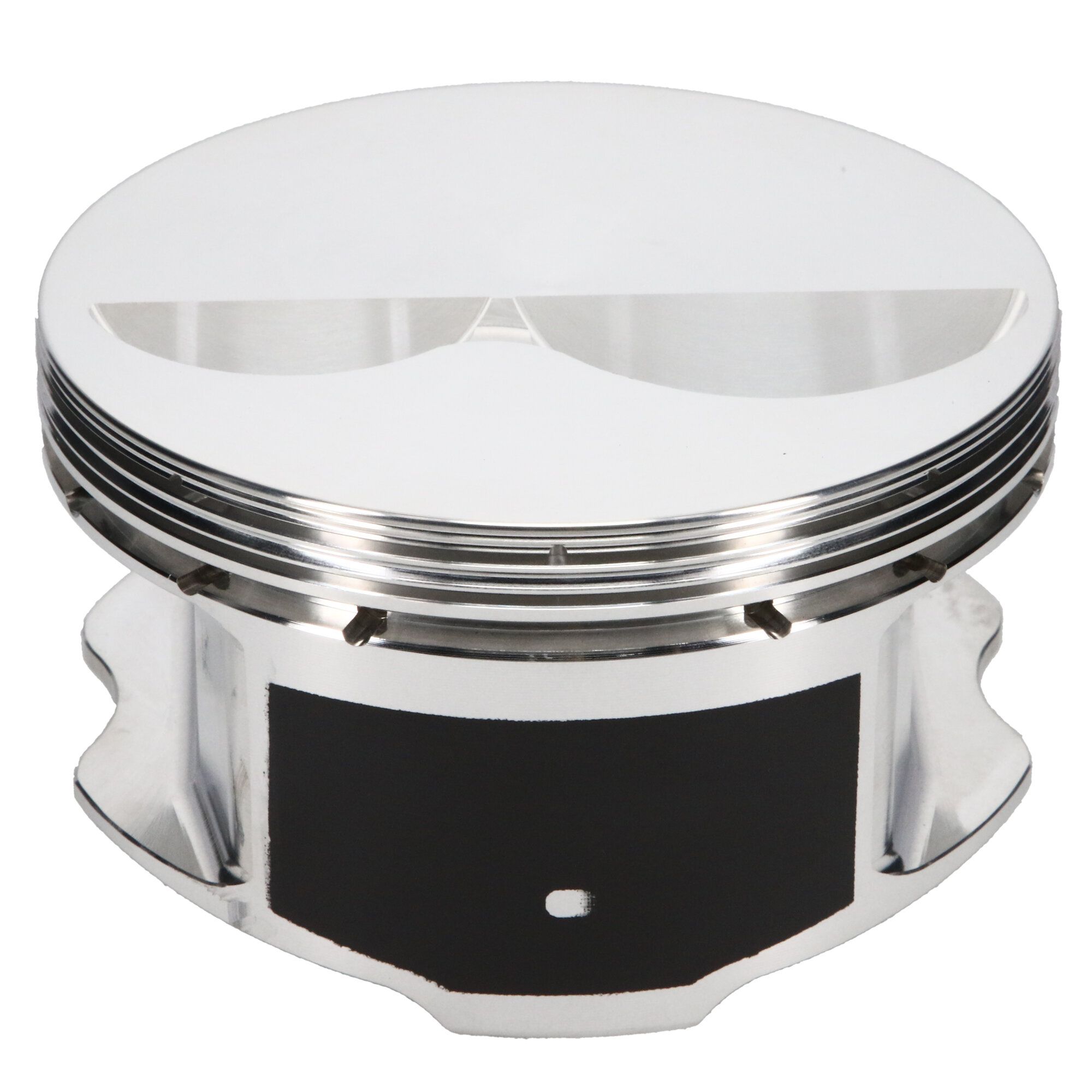

JE Ultra, Chevrolet, Small Block Chevrolet, 4.035 in. Bore, 1.250 CD, Flat Top, Left Piston

JE Pistons is the leader in forged racing pistons. With 70-plus years of experience, in-house forging, and industry-leading technology, JE Pistons are designed to perform at the top levels of all forms of motorsports.

Additional Attributes:

GTIN: 00193564188021
Add-On: J71408-4030-5
Add-On: 927-2400-13-51C
Add-On: 927-073-MW
Bore Diameter: 4.035
Compression Height: 1.250
Cylinder Head: STD CHEVROLET 23 DEG
Forging Type: Round
Industry: Automotive
Oil Ring Thickness: 0.119
Out of Stock Message: Call for Availability
Piston Avg Wt: 354
Piston Head Type: Flat
Piston Material: 2618
Piston Pin Length: 2.400
Piston Pin Material: 5115
Piston Pin Outside Diameter: 0.927
Piston Pin Wall Thickness: 0.130
Piston Volume: -4.1
Product Market: Domestic
Prop 65 (C, R or CR): CR
Prop 65 Yes/No: Yes
Ringset Included: No
Second Compression Ring Thickness: 0.044
Top Compression Ring Thickness: 0.0436

Extened Information:

Emissions : Electronically Announced
Life Cycle Status: Available To Order


Quantity of Each: 1
Package UOM: EA
