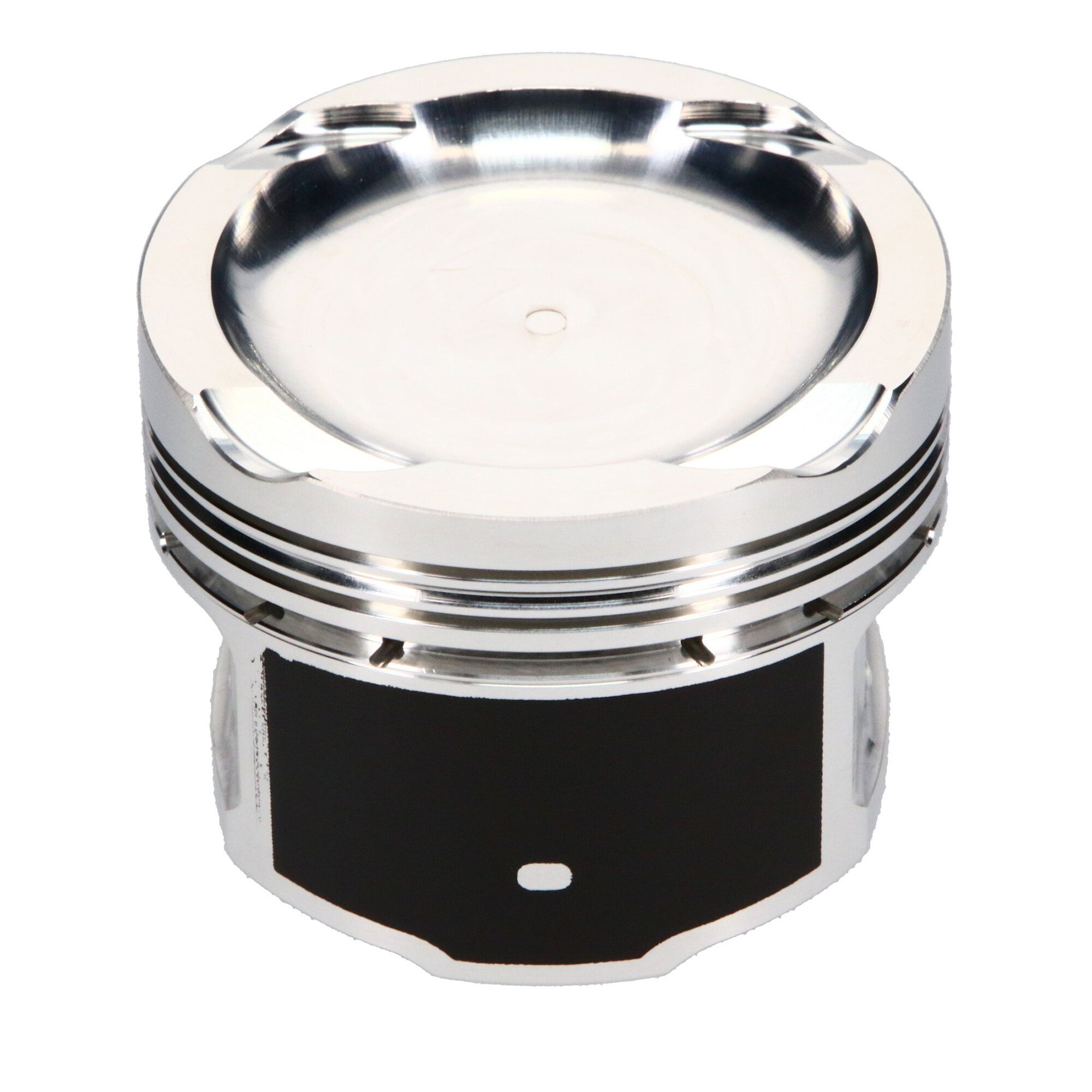

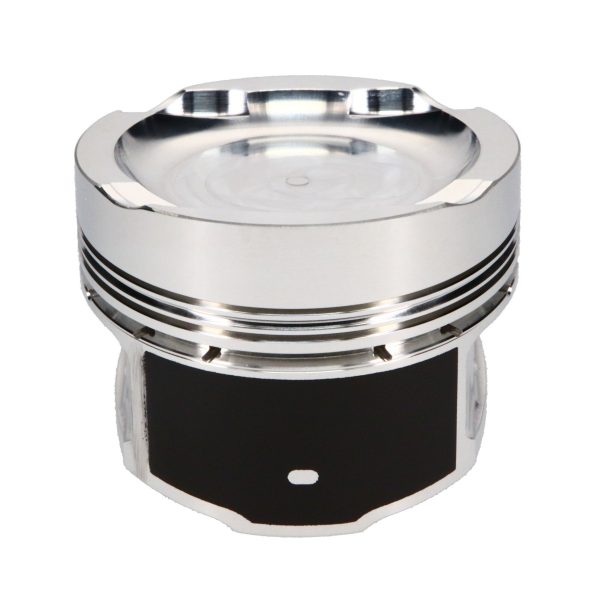

JE, VW, 3.228 in. Bore, Single

$220.05
SKU: BHXG-279958S

JE, VW, 2.8L VR6 24V, 3.228 in. Bore, 11.60:1, Flat Top, Single Piston

JE Pistons is the leader in forged racing pistons. With 70-plus years of experience, in-house forging, and industry-leading technology, JE Pistons are designed to perform at the top levels of all forms of motorsports.

Additional Attributes:

GTIN: 00193564018656
Piston Volume: -3.5
Product Market: Sport Compact
Prop 65 (C, R or CR): CR
Prop 65 Yes/No: Yes
Ringset Included: Yes
Second Compression Ring Thickness: 0.048
Top Compression Ring Thickness: 0.04
Add-On: JG1001-3228
Add-On: 787-2250-18-51C
Add-On: 787-050-MW
Bore Diameter: 82.00
Compression Height: 1.686
Cylinder Head: 24V VR6
Engine: 2.8L VR6 24V
Forging Type: Round
Industry: Automotive
Make: VOLKSWAGEN
Oil Ring Thickness: 0.111
Out of Stock Message: Call for Availability
Piston Avg Wt: 358
Piston Head Type: Flat
Piston Material: 2618
Piston Pin Length: 2.250
Piston Pin Material: 5115
Piston Pin Outside Diameter: 0.787
Piston Pin Wall Thickness: 0.180

Extened Information:

Emissions : Electronically Announced
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
