JE, VW, 3.287 in. Bore, Single

$220.05
SKU: BHXG-329246S

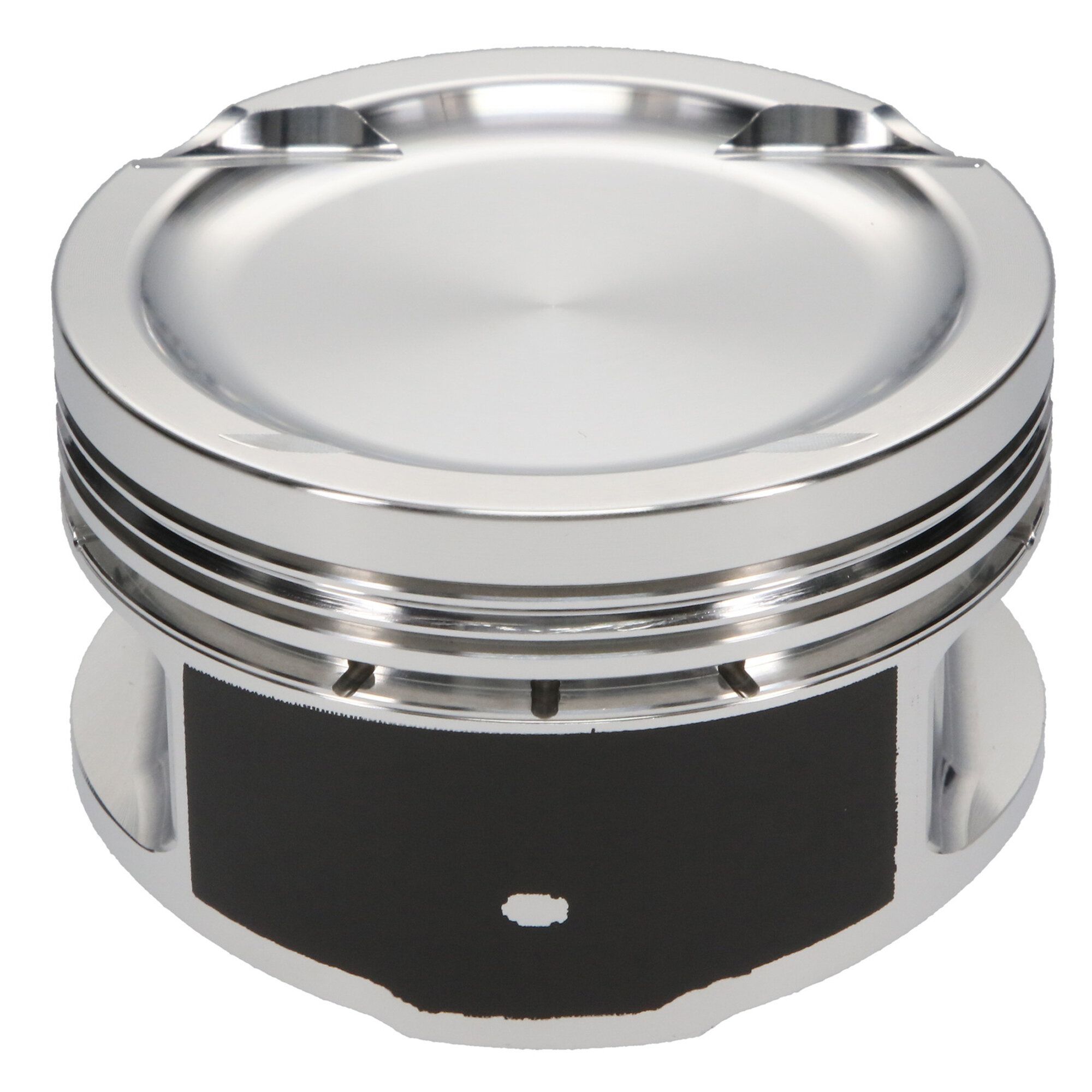

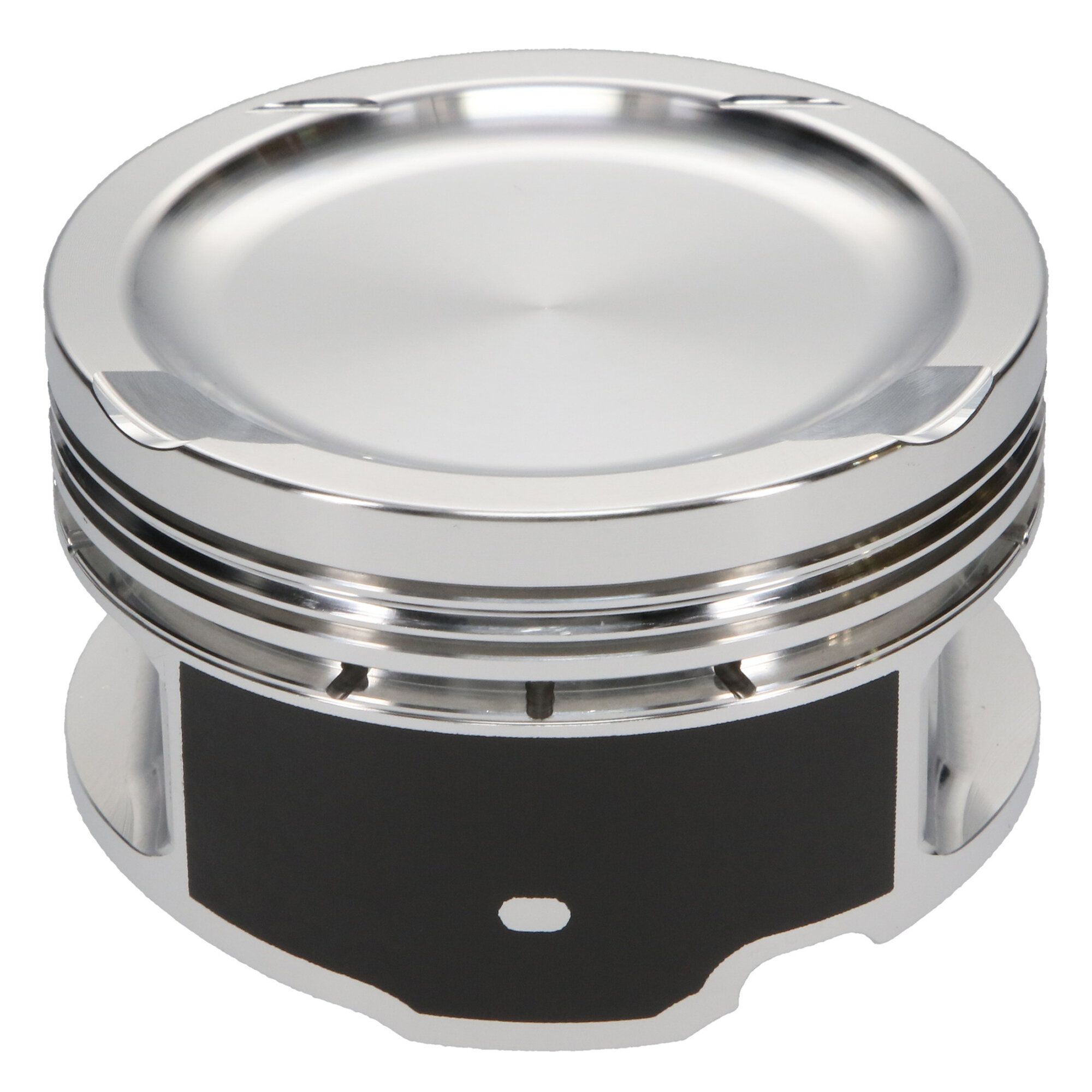

JE, VW, 2.0T TSI – 08-14 – 21mm Pin, 3.287 in. Bore, 9.60:1, Inverted Dome/Dish, Single Piston

JE Pistons is the leader in forged racing pistons. With 70-plus years of experience, in-house forging, and industry-leading technology, JE Pistons are designed to perform at the top levels of all forms of motorsports.

Additional Attributes:

GTIN: 00193564018243
Ringset Included: Yes
Second Compression Ring Thickness: 0.048
Top Compression Ring Thickness: 0.04
Add-On: JG1001-3287
Add-On: 827-2250-15-51C
Add-On: 827-063-MW
Bore Diameter: 83.50
Compression Height: 1.165
Cylinder Head: 2.0 TSI
Engine: 2.0T TSI 08-14 21MM PIN
Forging Type: Round
Industry: Automotive
Make: VOLKSWAGEN
Oil Ring Thickness: 0.111
Out of Stock Message: Call for Availability
Piston Avg Wt: 320
Piston Head Type: Dish
Piston Material: 2618
Piston Pin Length: 2.250
Piston Pin Material: 5115
Piston Pin Outside Diameter: 0.827
Piston Pin Wall Thickness: 0.150
Piston Volume: -8.4
Product Market: Sport Compact
Prop 65 (C, R or CR): CR
Prop 65 Yes/No: Yes

Extened Information:

Emissions : Electronically Announced
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
