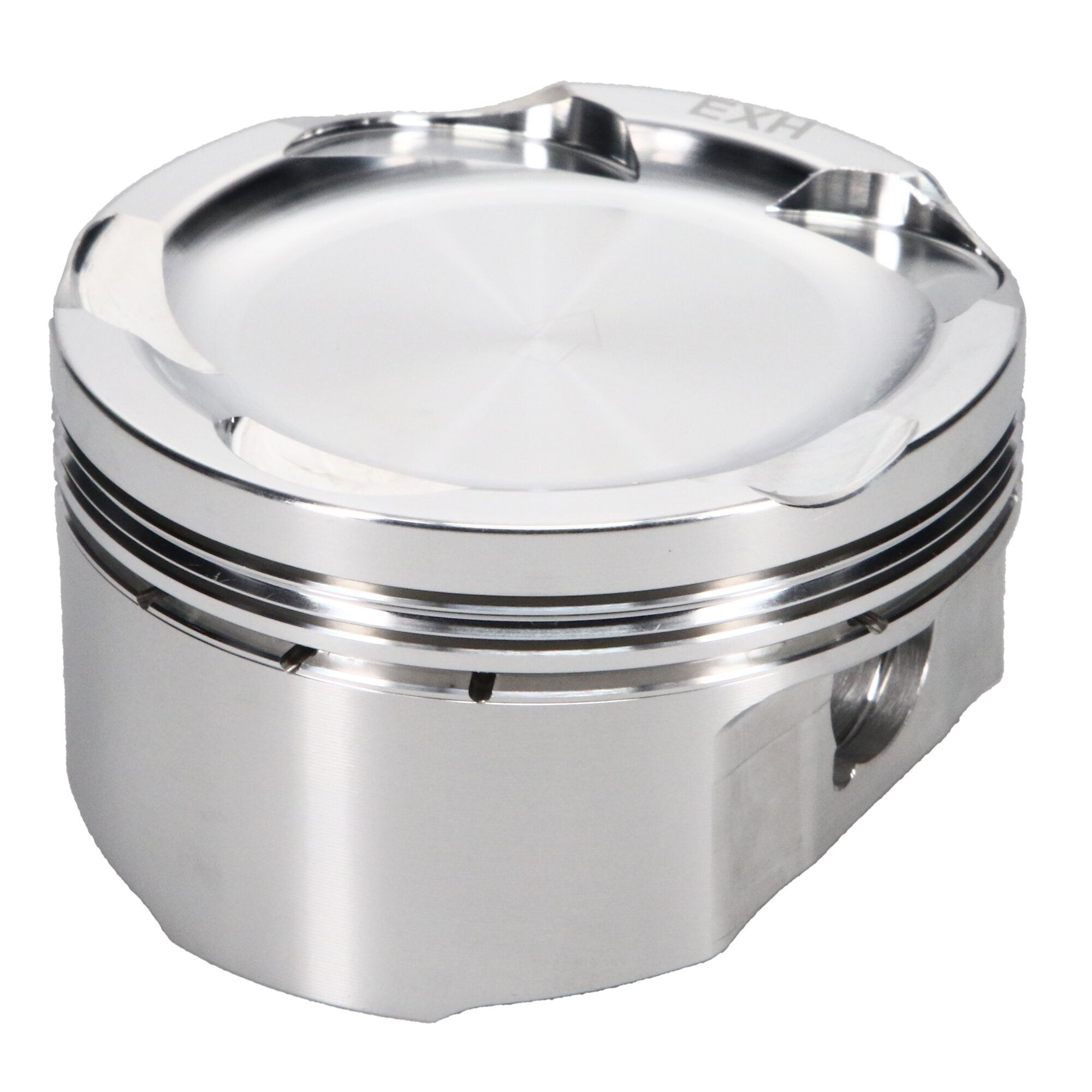

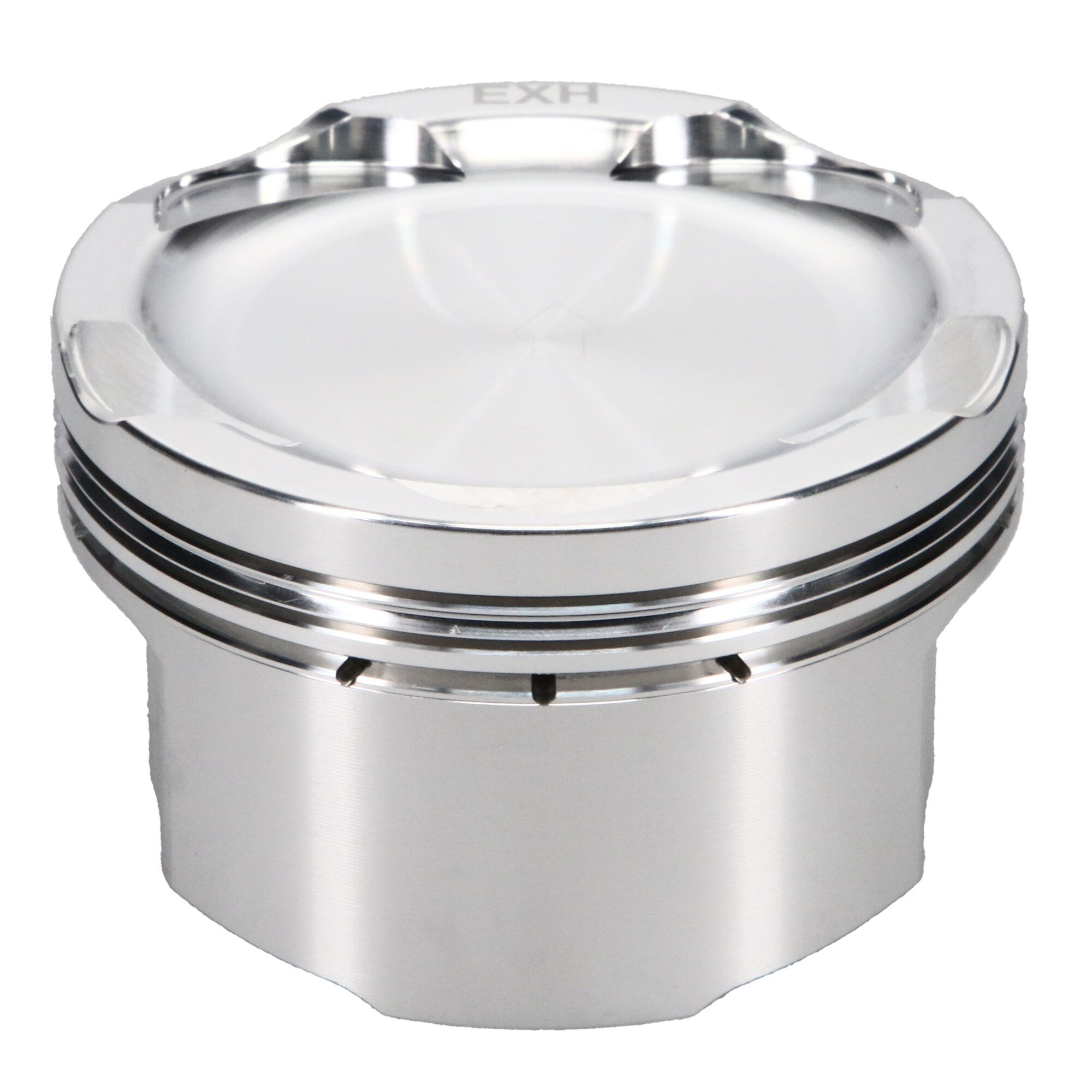

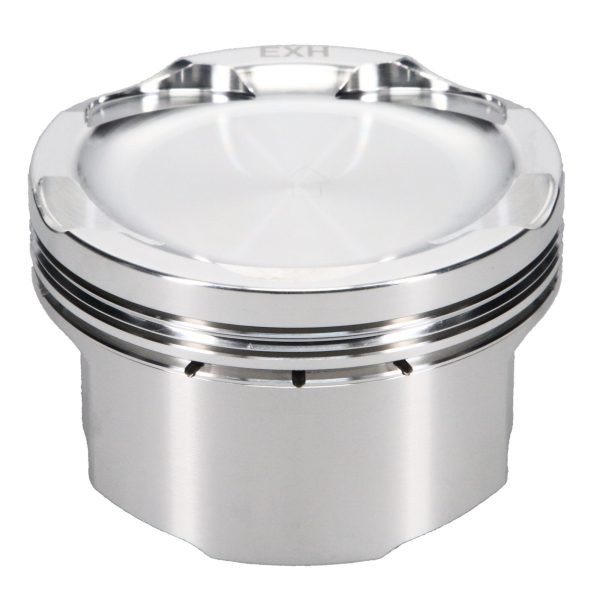

JE, Yamaha, 74.00 mm Bore, Single

SKU: BHXG-262326S

JE, Yamaha, YZF-R1 / FZ1 / RX1 / Apex / Attack, 9.00:1, 74.00 mm Bore, Single Piston

With a history in racing dating back to 1947, JE Pistons is the industry leader in high-performance powersports forged racing pistons. JE proudly engineers, forges, and machines precision racing pistons for a wide range of powersports machines in-house in the USA.

Additional Attributes:

GTIN: 00193564213761
Prop 65 Yes/No: Yes
Ringset Included: Yes
Second Compression Ring Thickness: 0.032
Top Compression Ring Thickness: 0.032
Add-On: XA7400
Add-On: 669-2050-14-TSC
Add-On: 669-050-MW
Bore Diameter: 74.00
Cylinder Head: 5V 1000
Forging Type: Round
Industry: Powersports
OEM Compression Ratio: 9.00:1
Oil Ring Thickness: 0.0595
Out of Stock Message: Call for Availability
Piston Avg Wt: 191
Piston Head Type: Dish
Piston Material: 2618
Piston Pin Length: 2.050
Piston Pin Outside Diameter: 0.669
Piston Pin Wall Thickness: 0.140
Piston Volume: 11.2
Product Market: Street
Product Market: Water & Snow
Prop 65 (C, R or CR): CR

Extened Information:

Emissions : Electronically Announced
Life Cycle Status: Available To Order


Quantity of Each: 1
Package UOM: EA
