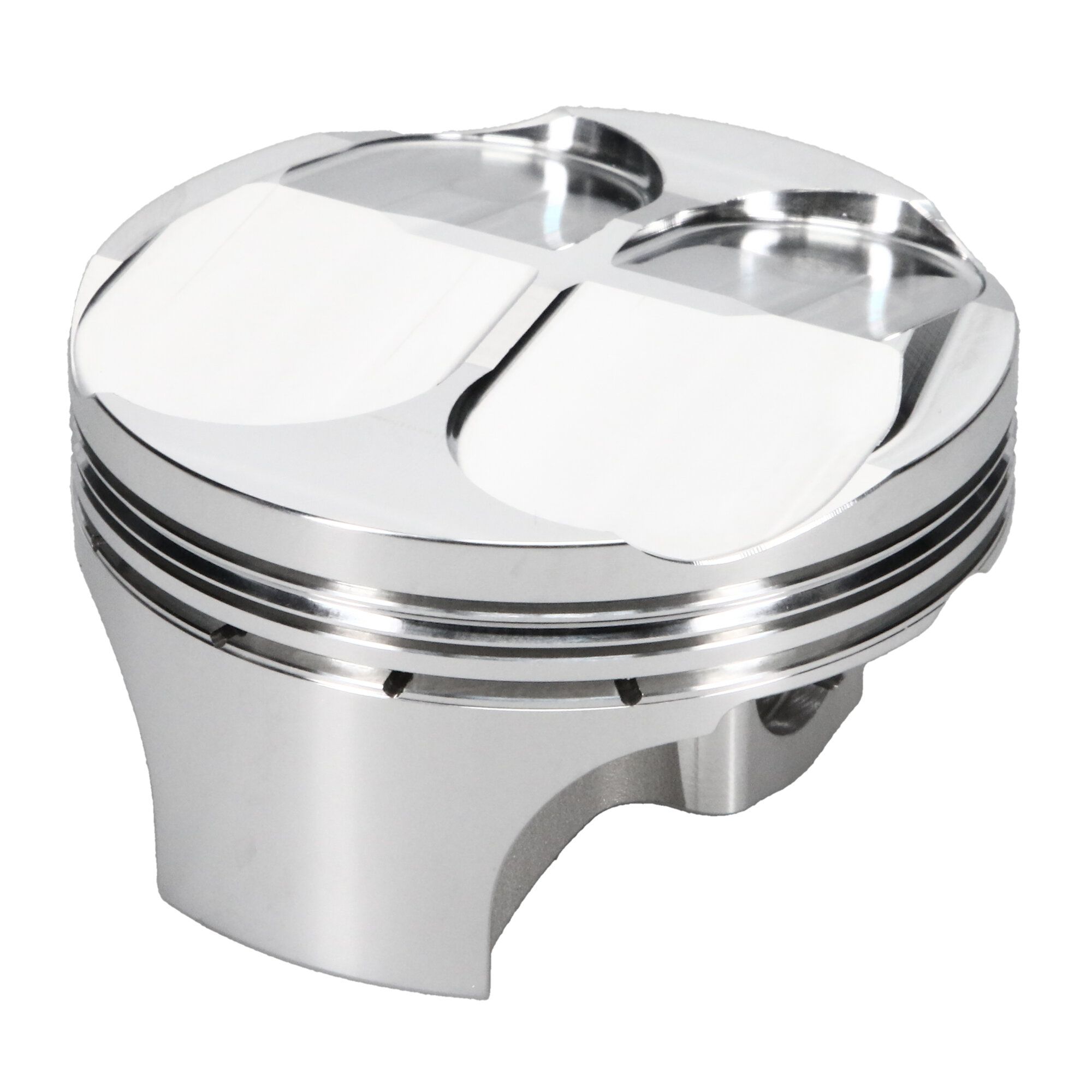

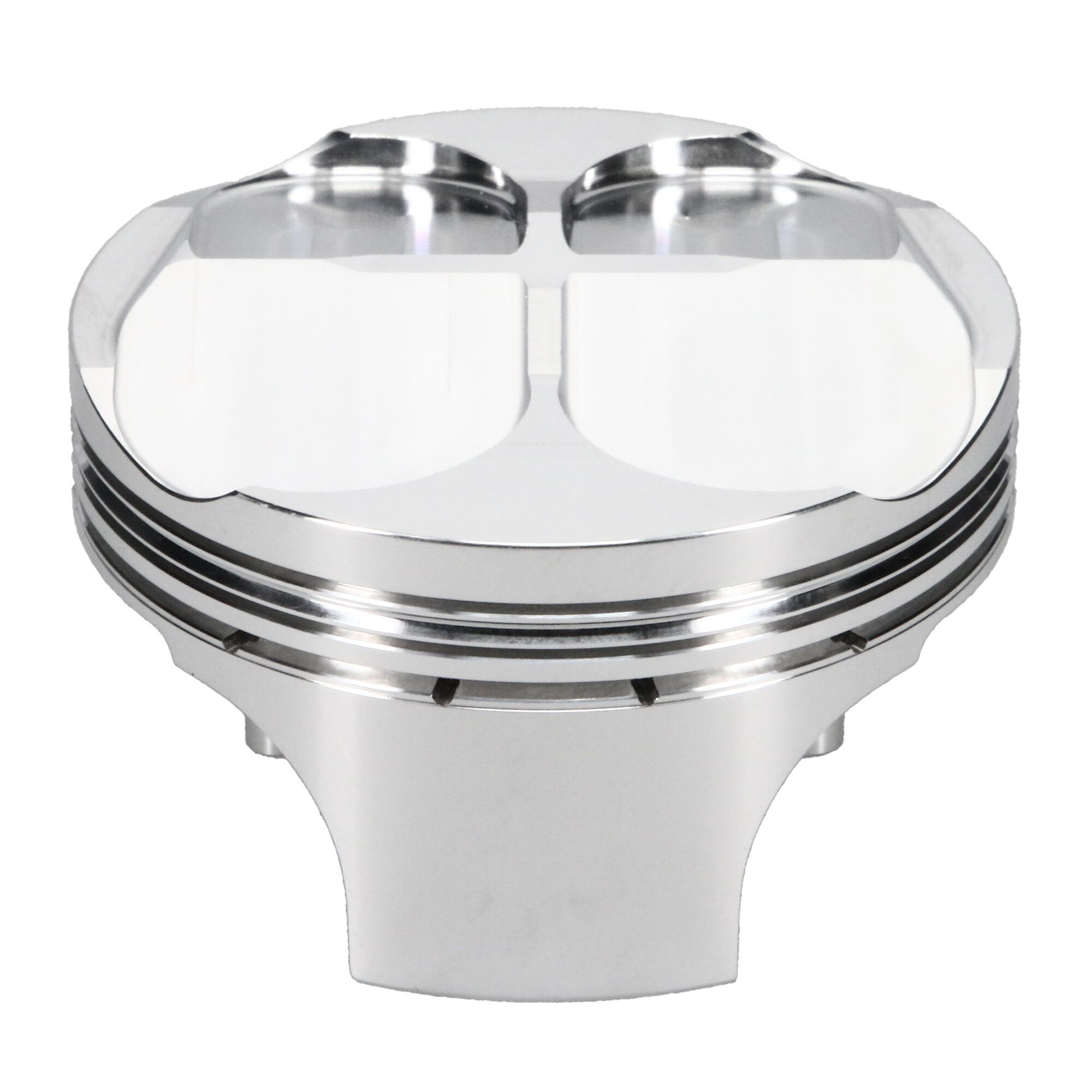

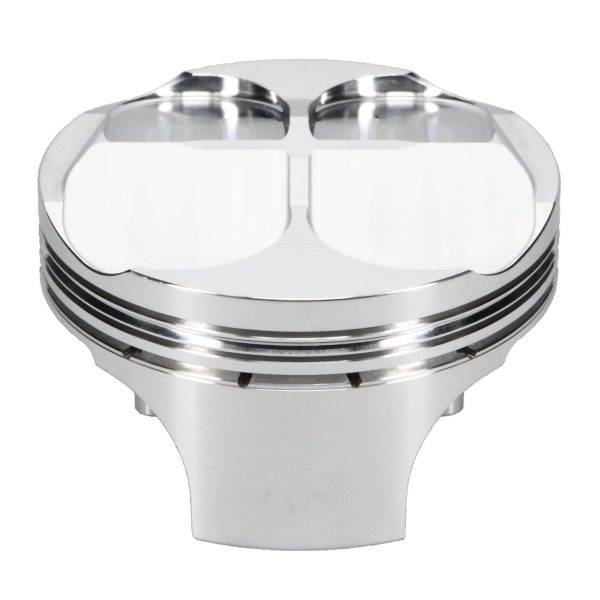

JE, Yamaha, R1, 13.50:1, 78.00 mm Bore, Single Piston
With a history in racing dating back to 1947, JE Pistons is the industry leader in high-performance powersports forged racing pistons. JE proudly engineers, forges, and machines precision racing pistons for a wide range of powersports machines in-house in the USA.
Additional Attributes:
GTIN: 00193564213730
Add-On: OEM
Add-On: 669-1650-14-TTC
Add-On: 669-050-MW
Bore Diameter: 78.00
Cylinder Head: YZF-R1 4V
Forging Type: FSR
Industry: Powersports
OEM Compression Ratio: 13.50:1
Oil Ring Thickness: 0.0585
Out of Stock Message: Call for Availability
Piston Avg Wt: 201
Piston Head Type: Dome
Piston Material: 2618
Piston Pin Length: 1.650
Piston Pin Outside Diameter: 0.669
Piston Pin Wall Thickness: 0.140
Piston Volume: -1
Product Market: Street
Prop 65 (C, R or CR): CR
Prop 65 Yes/No: Yes
Ringset Included: No
Second Compression Ring Thickness: 0.032
Top Compression Ring Thickness: 0.036
Extened Information:
Emissions : Electronically Announced
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
