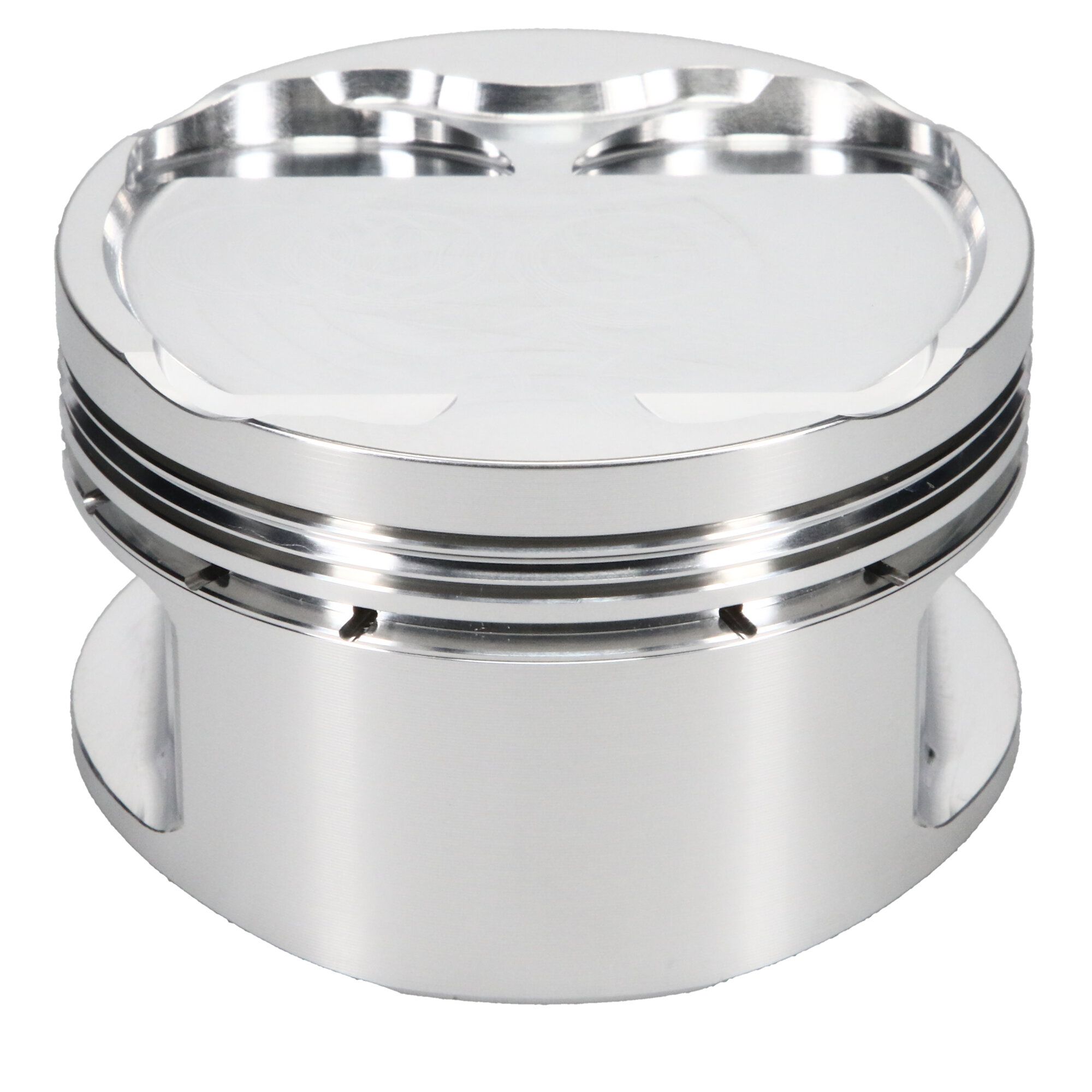

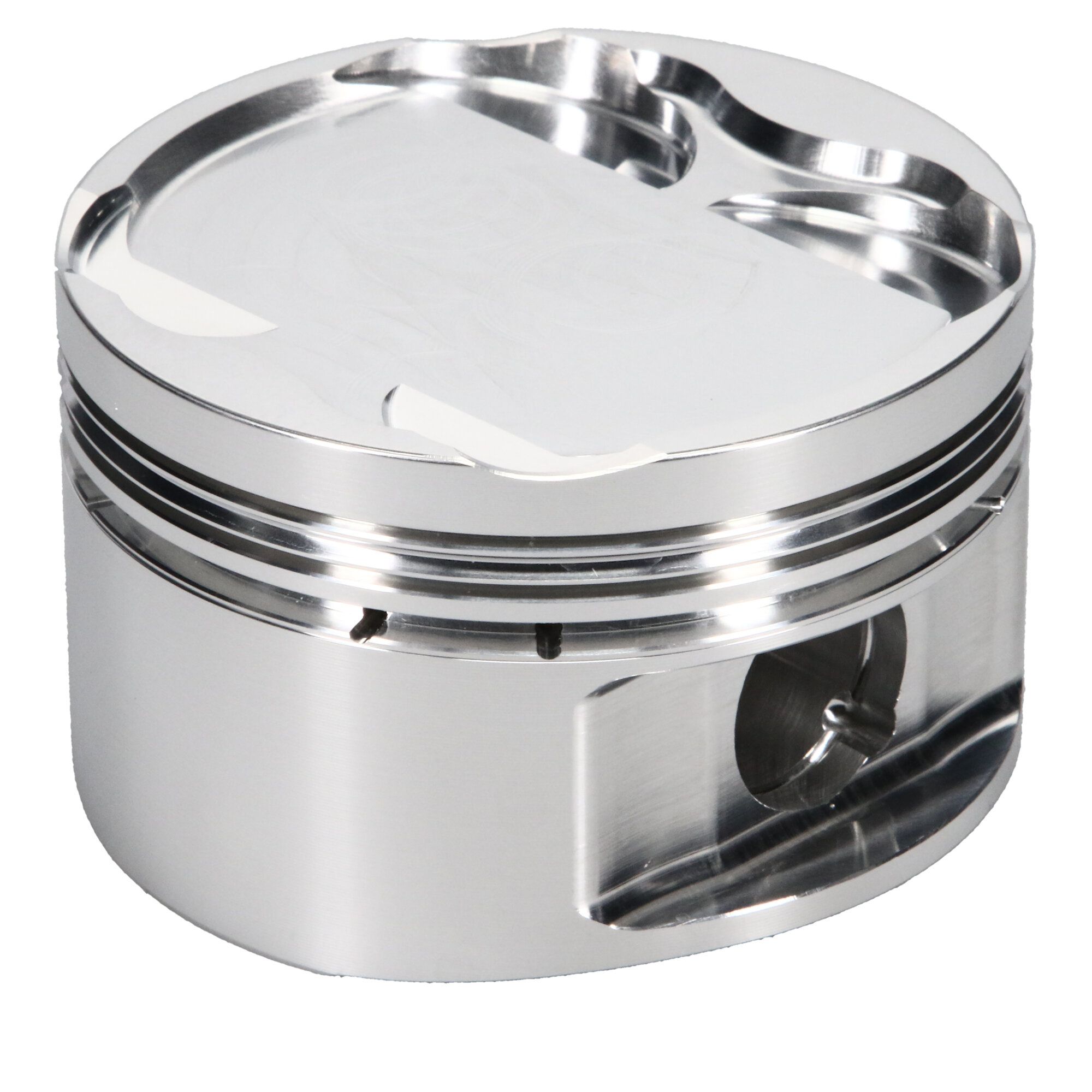

JE, Yamaha, FX SHO 1800, 8.60:1, 86.00 mm Bore, Single Piston
$271.18
With a history in racing dating back to 1947, JE Pistons is the industry leader in high-performance powersports forged racing pistons. JE proudly engineers, forges, and machines precision racing pistons for a wide range of powersports machines in-house in the USA.
Additional Attributes:
GTIN: 00193564213655
Add-On: JG1001-3386
Add-On: 866-2250-17-TSC
Add-On: 866-063-MW
Bore Diameter: 86.00
Cylinder Head: FX SHO
Forging Type: Round
Industry: Powersports
OEM Compression Ratio: 8.60:1
Oil Ring Thickness: 0.111
Out of Stock Message: Call for Availability
Piston Avg Wt: 319
Piston Head Type: Dish
Piston Material: 2618
Piston Pin Length: 2.250
Piston Pin Outside Diameter: 0.866
Piston Pin Wall Thickness: 0.170
Piston Volume: -20.8
Product Market: Water & Snow
Prop 65 (C, R or CR): CR
Prop 65 Yes/No: Yes
Ringset Included: Yes
Second Compression Ring Thickness: 0.048
Top Compression Ring Thickness: 0.04
Extened Information:
Emissions : Electronically Announced
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
