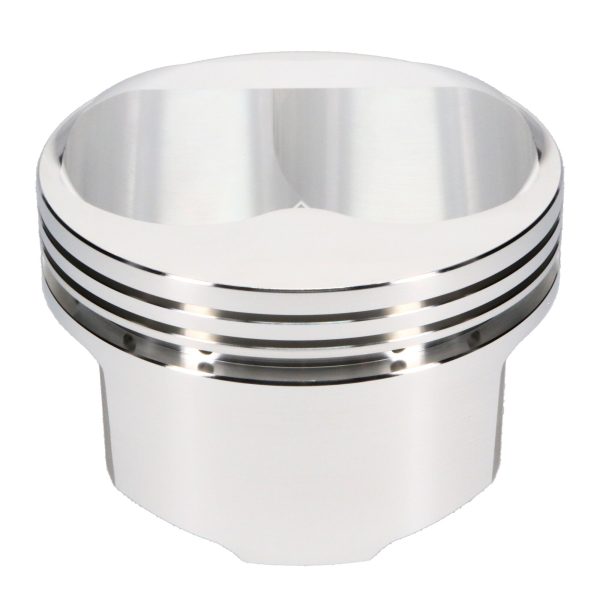

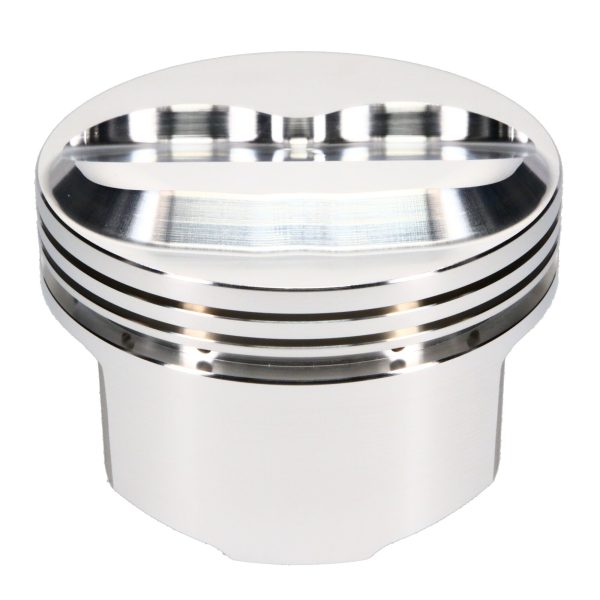

SRP, Chevrolet, Small Block Chevrolet, 4.030 in. Bore, 1.260 CD, Dome, Single Piston
JE Pistons SRP line is proud to offer huge performance for the price. Forged from strong, 4032 aluminum alloy material, SRP pistons blend strength with affordability, offering an excellent performance bargain for performance rebuild and street/strip applications. (some applications in 2618)
Additional Attributes:
GTIN: 00193564259325
Compression Height: 1.260
Cylinder Head: CHEVROLET 23 DEG 20/30
Engine: SMALL BLOCK CHEVROLET
Forging Type: FSR
Industry: Automotive
Make: CHEVROLET
Oil Ring Thickness: 0.188
Out of Stock Message: Call for Availability
Piston Avg Wt: 464
Piston Head Type: Dome
Piston Material: 4032
Piston Pin Length: 2.750
Piston Pin Material: 5115
Piston Pin Outside Diameter: 0.927
Piston Pin Wall Thickness: 0.150
Piston Volume: 1
Product Market: Domestic
Prop 65 (C, R or CR): CR
Prop 65 Yes/No: Yes
Ringset Included: No
Second Compression Ring Thickness: 0.064
Top Compression Ring Thickness: 0.064
Add-On: S100S8-4030-5
Add-On: 927-2750-15-51S
Add-On: 927-042-CS
Bore Diameter: 4.030
Extened Information:
Emissions : Electronically Announced
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
