SRP, Ford, 4.040 in. Bore, Single

$109.53
SKU: BHXG-150074S

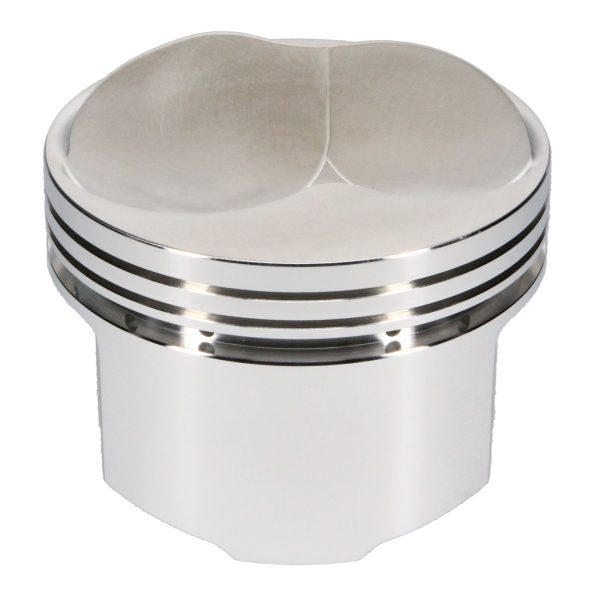

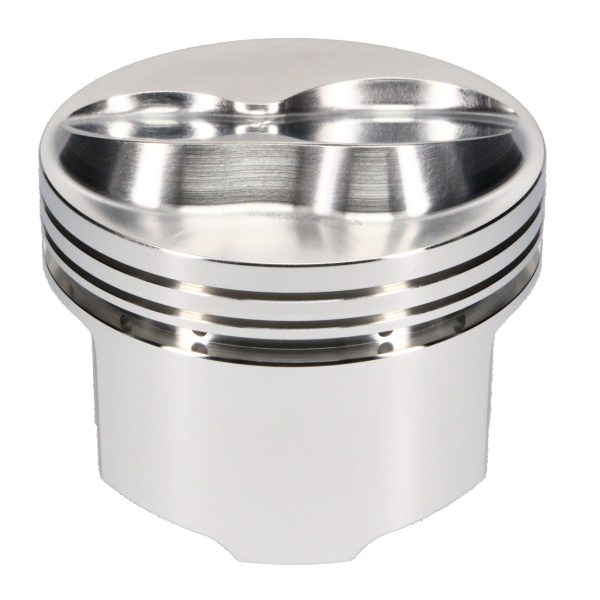

SRP, Ford, Small Block Ford, 4.040 in. Bore, 1.774 CD, Dome, Single Piston

JE Pistons SRP line is proud to offer huge performance for the price. Forged from strong, 4032 aluminum alloy material, SRP pistons blend strength with affordability, offering an excellent performance bargain for performance rebuild and street/strip applications. (some applications in 2618)

Additional Attributes:

GTIN: 00193564264077
Add-On: S100S8-4040-5
Add-On: 912-2750-14-51S
Add-On: 927-042-CS
Bore Diameter: 4.040
Compression Height: 1.774
Cylinder Head: SMALL BLOCK FORD 20 DEG
Engine: SMALL BLOCK FORD
Forging Type: FSR
Industry: Automotive
Make: FORD
Oil Ring Thickness: 0.188
Out of Stock Message: Call for Availability
Piston Avg Wt: 553
Piston Head Type: Dome
Piston Material: 2618
Piston Pin Length: 2.750
Piston Pin Material: 5115
Piston Pin Outside Diameter: 0.912
Piston Pin Wall Thickness: 0.140
Piston Volume: 10
Product Market: Domestic
Prop 65 (C, R or CR): CR
Prop 65 Yes/No: Yes
Ringset Included: No
Second Compression Ring Thickness: 0.064
Top Compression Ring Thickness: 0.064

Extened Information:

Emissions : Electronically Announced
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
