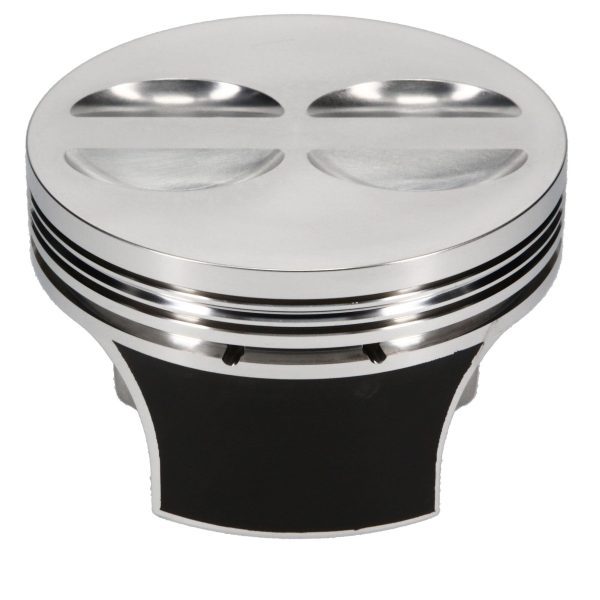

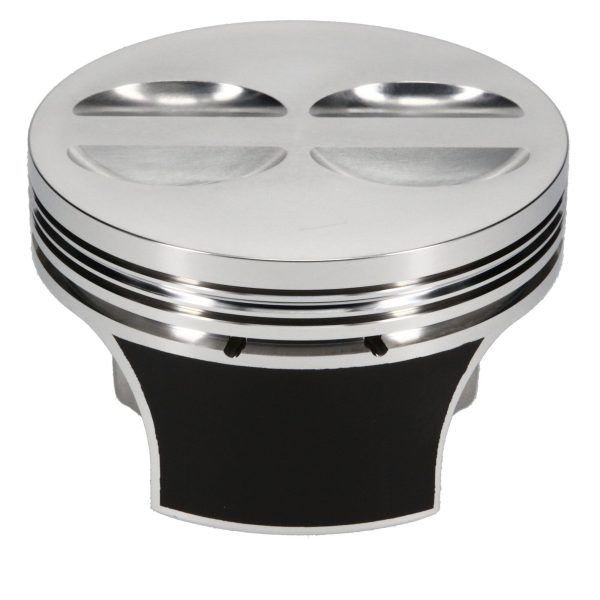

SRP Pro 2618, Chevrolet, Big Block Chevrolet, 4.020 in. Bore, 1.560 CD, Inverted Dome/Dish, Single Piston
$134.42
JE Pistons SRP Pro 2618 line expands on the premium features of the SRP Pro series with the addition of extremely strong, 2618 forged aluminum material. All piston kits include gas-nitrided, carbon-steel pistons rings, pins, and locks. This line represents maximum piston strength at minimum cost.
Additional Attributes:
GTIN: 00193564254597
Add-On: JG3108-4020-2
Add-On: 927-2250-15-51C
Add-On: 927-073-MW
Bore Diameter: 4.020
Compression Height: 1.560
Cylinder Head: STD CHEVROLET 23 DEG
Engine: BIG BLOCK CHEVY
Forging Type: FSR
Industry: Automotive
Make: CHEVROLET
Oil Ring Thickness: 0.119
Out of Stock Message: Call for Availability
Piston Avg Wt: 479
Piston Head Type: Dish
Piston Material: 2618
Piston Pin Length: 2.250
Piston Pin Material: 5115
Piston Pin Outside Diameter: 0.927
Piston Pin Wall Thickness: 0.150
Piston Volume: -10
Product Market: Domestic
Prop 65 (C, R or CR): CR
Prop 65 Yes/No: Yes
Ringset Included: No
Second Compression Ring Thickness: 0.06
Top Compression Ring Thickness: 0.048
Extened Information:
Emissions : Electronically Announced
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: EA
